SLM-5650A Satellite Modem
Base Modem HTTP Interface

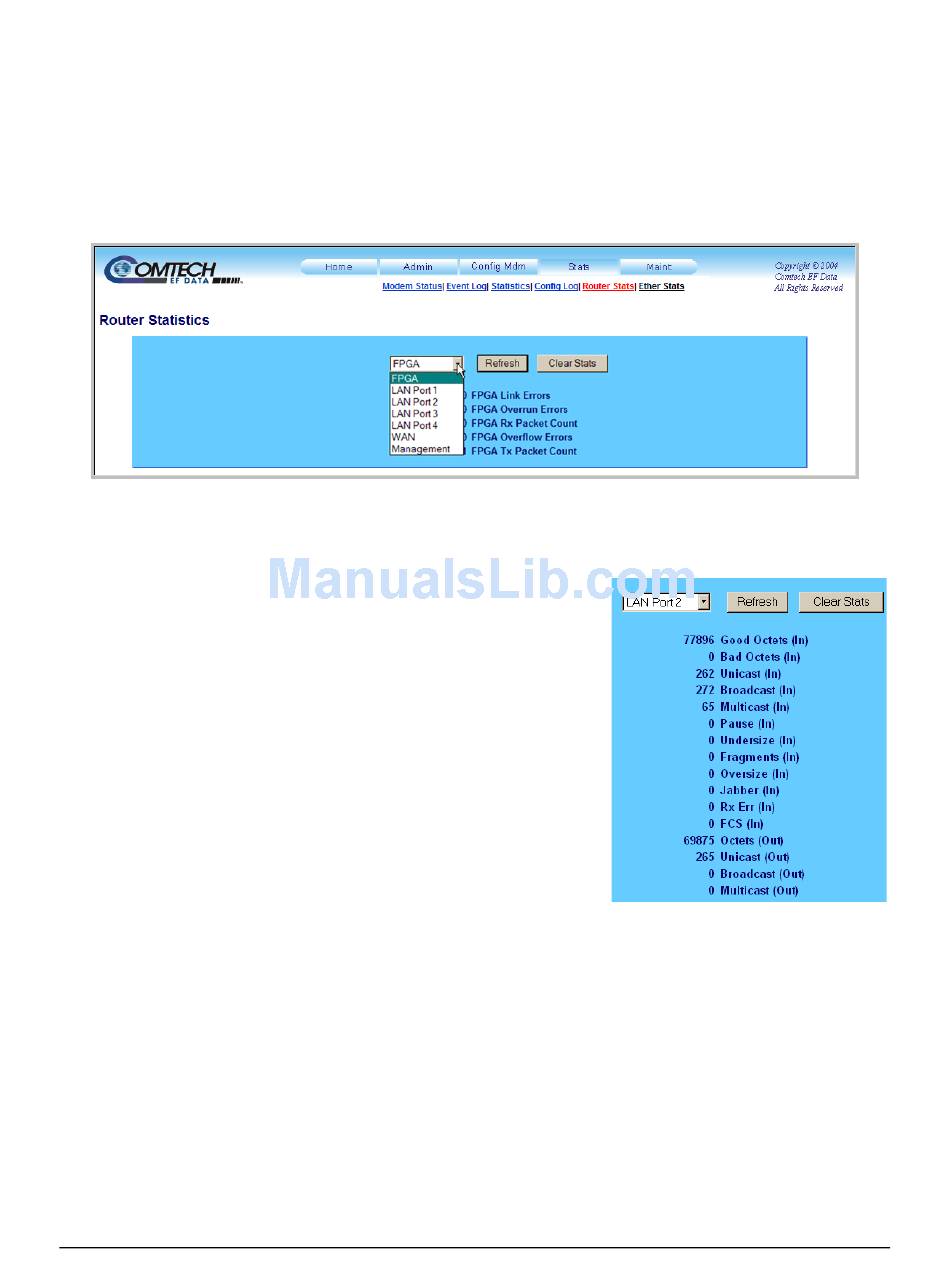

7.3.4.5 Stats | Router Stats
Use this read-only page to view statistics for the modem FPGA, and the Ethernet operating
statistics for the modem WAN ports, M&C ports, and when the optional Network Processor (NP)
Interface is installed, the NP Interface's LAN ports 1 through 4.
Router Statistics
Select a feature to query from the drop-down menu, and
then click [Refresh] to display the attribute statistics for
that feature.
In the example shown at right, LAN Port 2 (on the optional
NP Interface) queries, and then displays the most recent
statistics for NP Interface LAN Port 2:
Click [Clear Stats] to reset the statistics counts for the
visible display.
On the next page, Table 7-1 defines the seven selectable pages of statistics available via the drop-
down menu.

Figure 7-15. Stats | Router Statistics page

7–19
Revision 8
MN-SLM5650A
