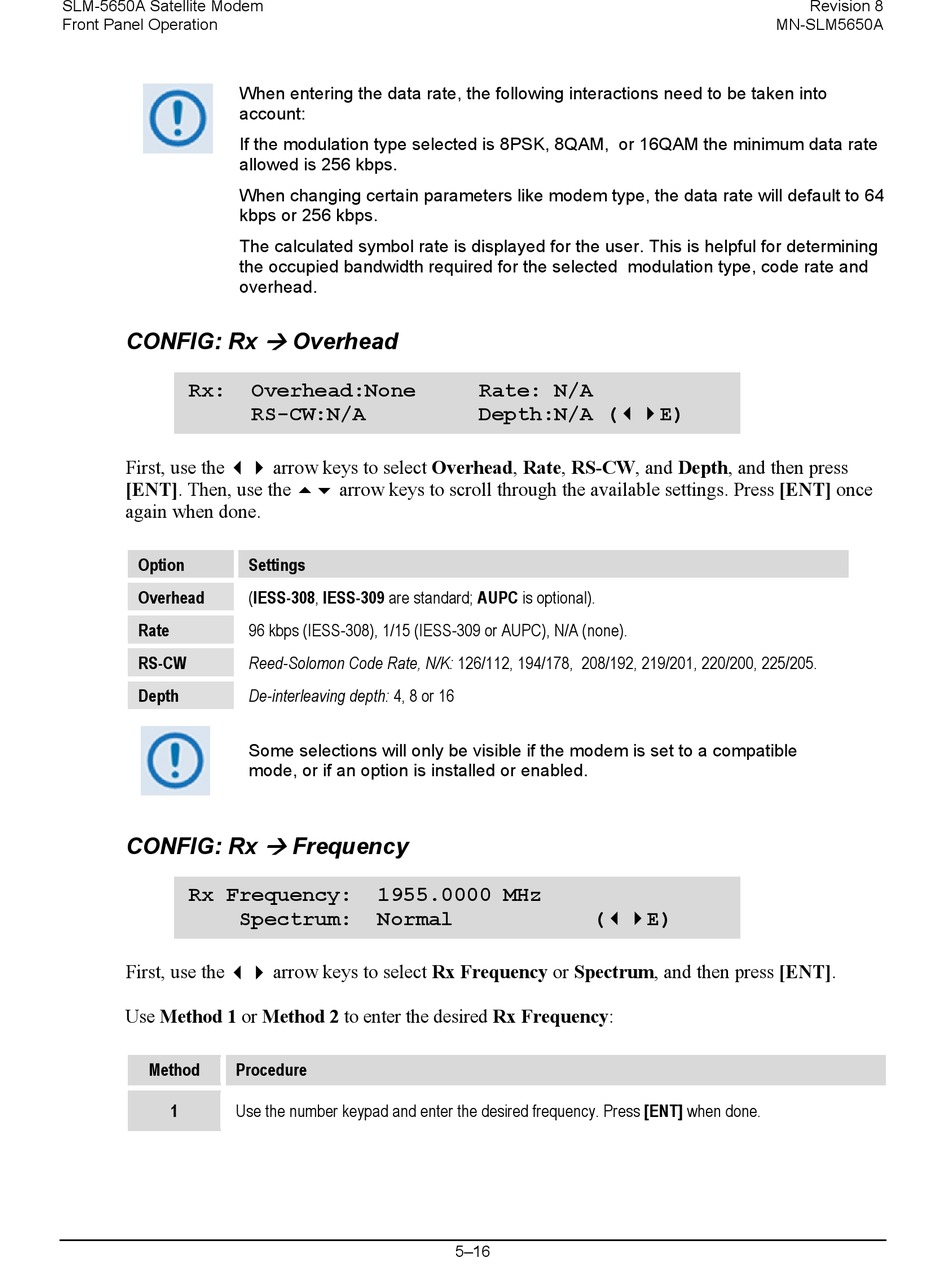

Comtech EF Data SLM-5650A Installation And Operation Manual page 98

SLM-5650A Satellite Modem
Front Panel Operation
When entering the data rate, the following interactions need to be taken into
account:
If the modulation type selected is 8PSK, 8QAM, or 16QAM the minimum data rate
allowed is 256 kbps.
When changing certain parameters like modem type, the data rate will default to 64
kbps or 256 kbps.
The calculated symbol rate is displayed for the user. This is helpful for determining
the occupied bandwidth required for the selected modulation type, code rate and
overhead.
CONFIG: Rx
Rx:
First, use the  arrow keys to select Overhead, Rate, RS-CW, and Depth, and then press
[ENT]. Then, use the  arrow keys to scroll through the available settings. Press [ENT] once
again when done.
Option
Overhead
Rate
RS-CW
Depth
CONFIG: Rx
Rx Frequency:
Spectrum:
First, use the  arrow keys to select Rx Frequency or Spectrum, and then press [ENT].
Use Method 1 or Method 2 to enter the desired Rx Frequency:
Method Procedure
1 Use the number keypad and enter the desired frequency. Press [ENT] when done.
Overhead

Overhead:None
RS-CW:N/A
Settings
(IESS-308, IESS-309 are standard; AUPC is optional).
96 kbps (IESS-308), 1/15 (IESS-309 or AUPC), N/A (none).
Reed-Solomon Code Rate, N/K: 126/112, 194/178, 208/192, 219/201, 220/200, 225/205.
De-interleaving depth: 4, 8 or 16
Some selections will only be visible if the modem is set to a compatible
mode, or if an option is installed or enabled.
Frequency

1955.0000 MHz
Normal
Rate: N/A
Depth:N/A (E)
(E)
5–16
