Figure 10-7. Maint | Unit Info Page; Maint (Maintenance) | Unit Info - Comtech EF Data SLM-5650A Installation And Operation Manual

SLM-5650A Satellite Modem
TRANSEC Module HTTPS Interface
Item
RX CRC Errors
RX Frame Count
RX Status
DCM Lock
Unique Word Lock
Out of Sync
BIST Done
Automatic Refresh Status Timer
The page updates itself automatically for the duration of the countdown timer. When the timer
reaches 0:00, the page will stop updating to help conserve system resources.
To manually override the timer, click [Stop] to interrupt or [Reset] to restart the timer.
10.4.4

Maint (Maintenance) | Unit Info

Use this scrollable read-only page to view the Firmware Information window. The information
provided here serves to verify that the correct firmware is loaded into the unit.
Description
Displays the count of received CRC errors.
Displays the number of received AES 256 frames.
Displays the value of the Rx Status register.
Displays the state of the Rx DCM lock.
Indicates that the decryption engine has successfully found the unique word and
has been able to lock to it.
Indicates that an out-of-sync condition has been detected by the encryption engine.
Indicates whether the AES 256 core is analyzing the results of its Built-in Self Test
(BIST) for the TRANSEC Rx.

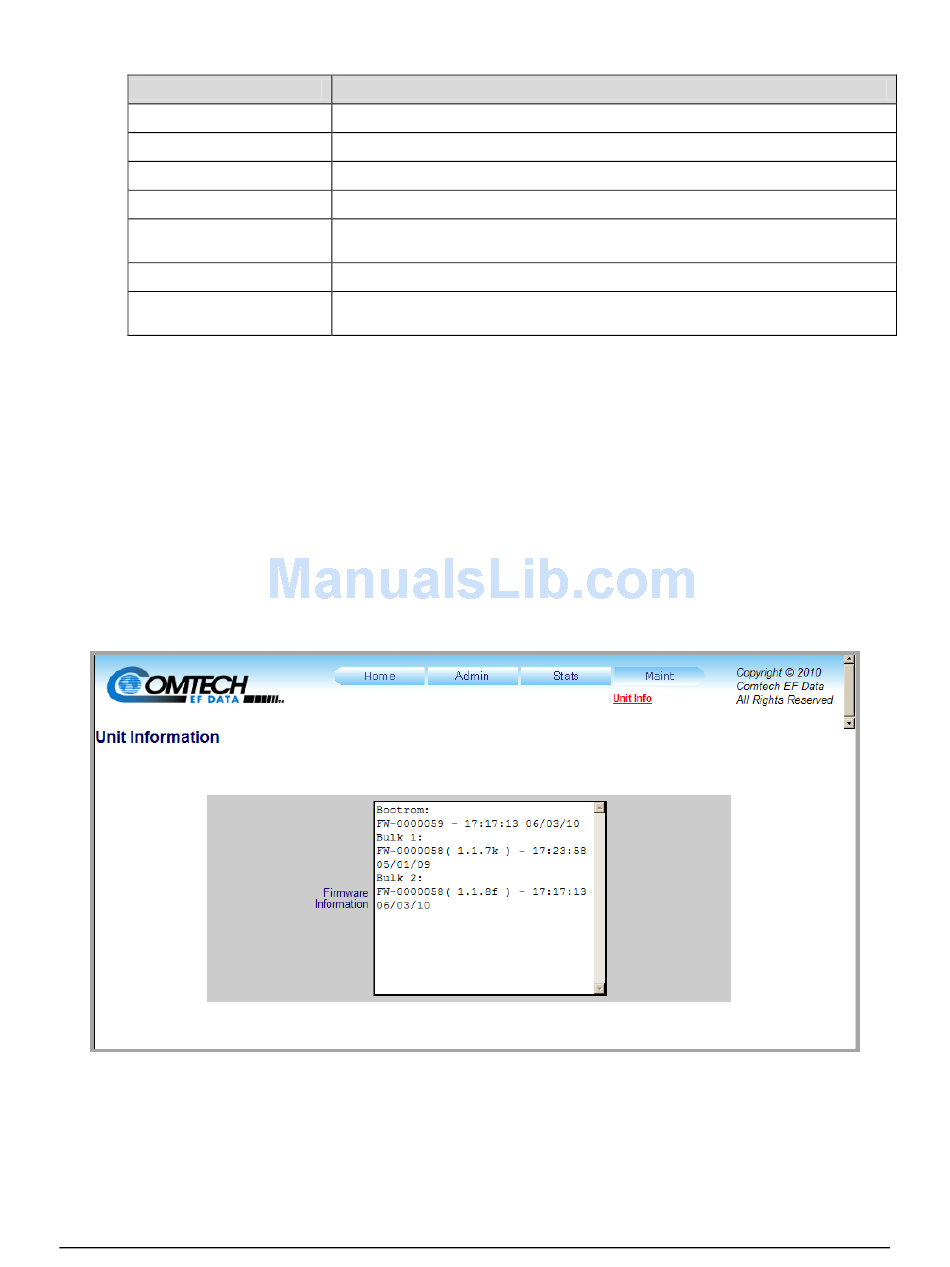

Figure 10-7. Maint | Unit Info page
