SLM-5650A Satellite Modem
Network Processor (NP) Interface
Column
Priority
Per-Hop Behavior (PHB)
Codepoint (DSCP)
Sent Packets
Dropped Packets
Queued Packets
Queued Bytes
Queue Depth (% Full)
Bandwidth (kbps)
8.6.6.5.3 WAN | Loopback Test
Use this page for testing the operational integrity of the NP Interface M&C, WAN Interface, and IF
Interface.
Packet Loopback Test Results
This message window displays the results of the completed Loopback Test.
Packet Loopback Test
By clicking [Start Test], the NP Interface sends 50 multicast packets towards the WAN interface,
and enables the IF Loopback. All packets returned from the IP Loopback will count by the NP
Interface, and are displayed in the Packet Loopback Test Results window.
Description
Traffic class that determines how packets will be forwarded.
Codepoint value in Type of Service (ToS) byte in IP header.
Number of packets sent from queue associated with PHB class.
Number of packets dropped in queue associated with PHB class.
Number of packets in queue associated with PHB class.
Number of bytes in queue associated with PHB class.
Percentage (%) full for queue associated with PHB class
Current data rate for queue associated with PHB class.

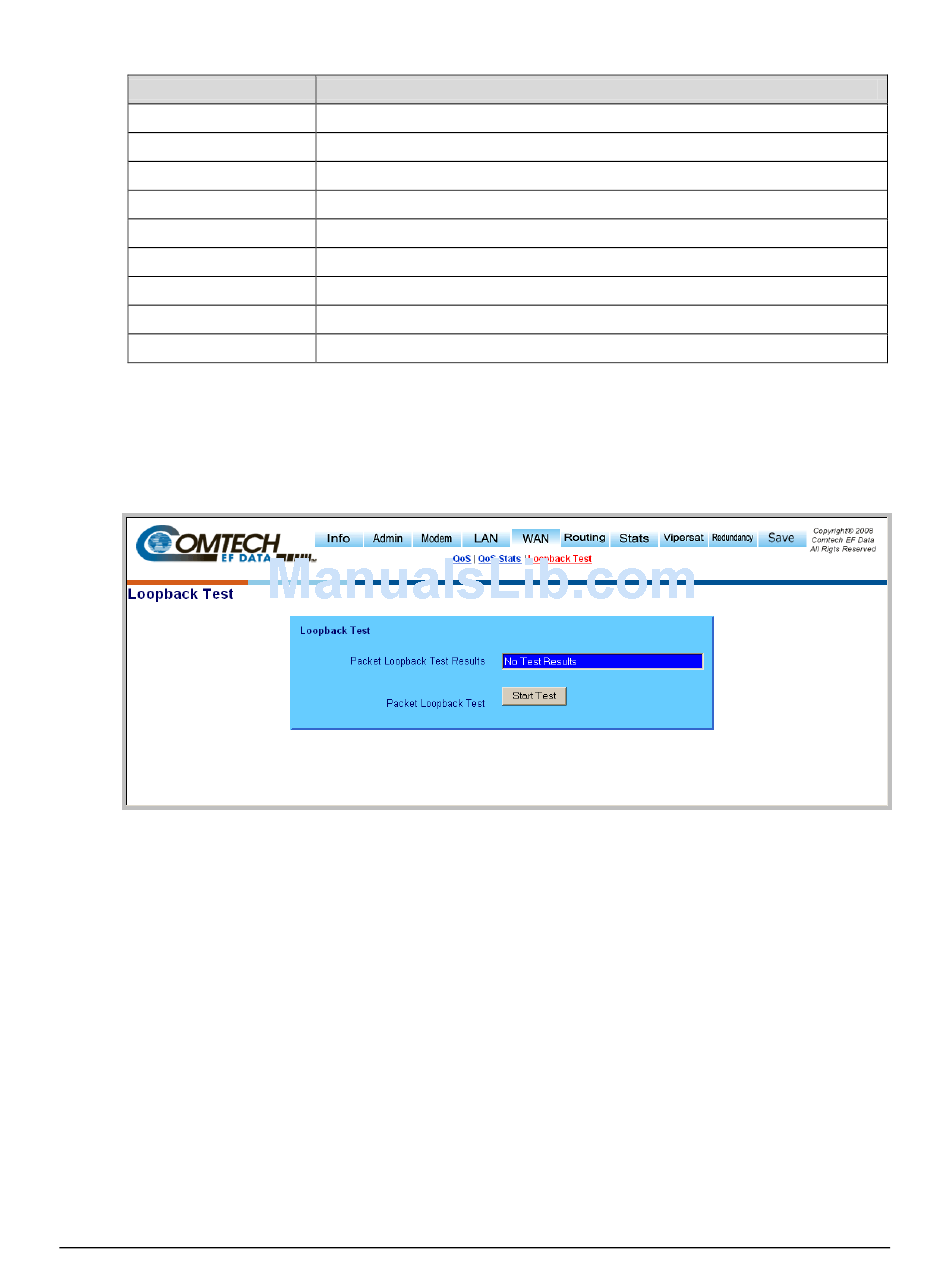

Figure 8-25. WAN | Loopback Test page

8–39
Revision 8
MN-SLM5650A
