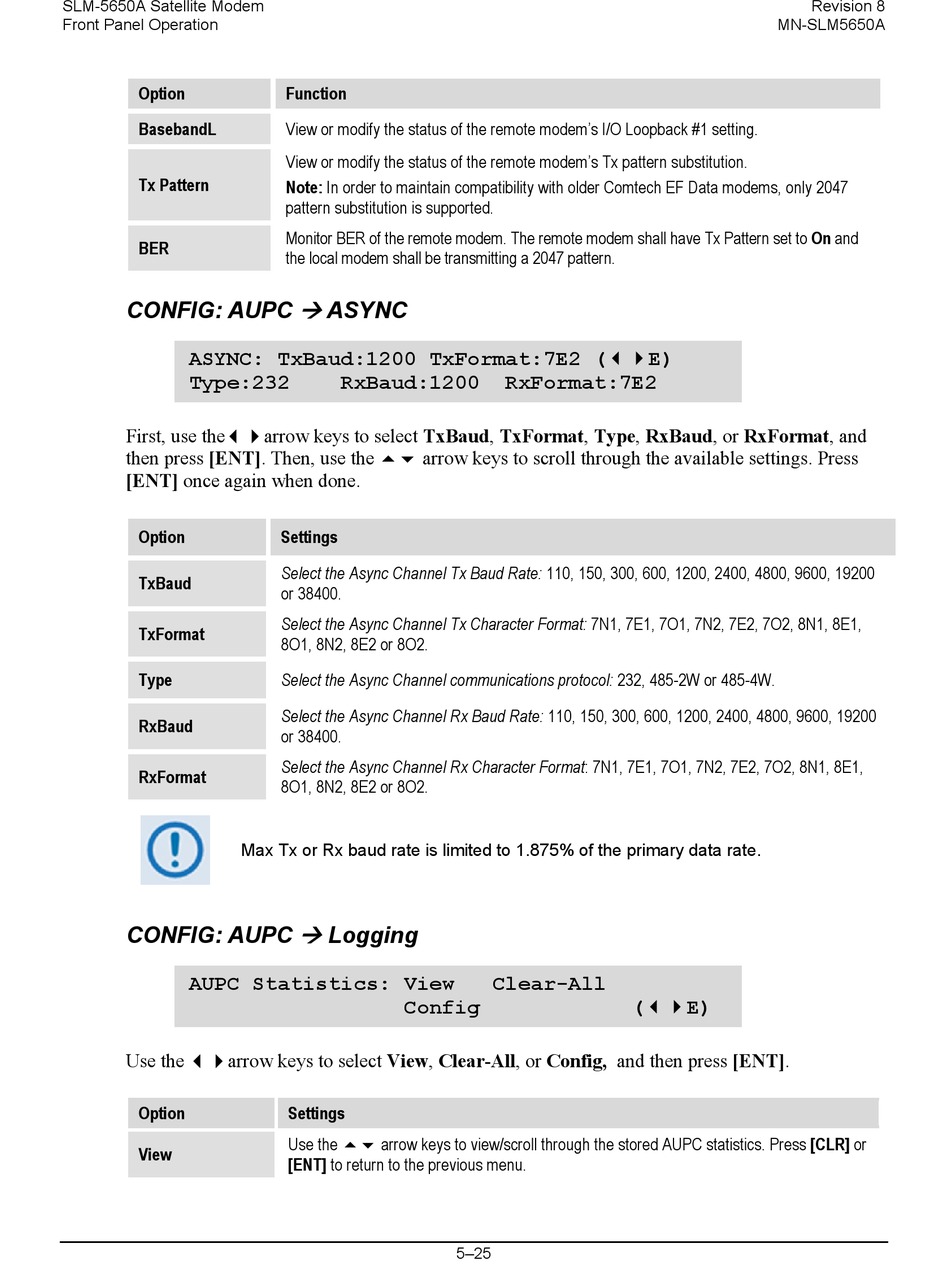

Comtech EF Data SLM-5650A Installation And Operation Manual page 107

SLM-5650A Satellite Modem
Front Panel Operation
Option
BasebandL
Tx Pattern
BER
CONFIG: AUPC
ASYNC: TxBaud:1200 TxFormat:7E2 (E)
Type:232
First, use thearrow keys to select TxBaud, TxFormat, Type, RxBaud, or RxFormat, and
then press [ENT]. Then, use the  arrow keys to scroll through the available settings. Press
[ENT] once again when done.
Option
TxBaud
TxFormat
Type
RxBaud
RxFormat
Max Tx or Rx baud rate is limited to 1.875% of the primary data rate.
CONFIG: AUPC
AUPC Statistics: View
Use the arrow keys to select View, Clear-All, or Config, and then press [ENT].
Option
View
Function
View or modify the status of the remote modem's I/O Loopback #1 setting.
View or modify the status of the remote modem's Tx pattern substitution.
Note: In order to maintain compatibility with older Comtech EF Data modems, only 2047
pattern substitution is supported.
Monitor BER of the remote modem. The remote modem shall have Tx Pattern set to On and
the local modem shall be transmitting a 2047 pattern.
ASYNC

RxBaud:1200
Settings
Select the Async Channel Tx Baud Rate: 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200
or 38400.
Select the Async Channel Tx Character Format: 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1,
8O1, 8N2, 8E2 or 8O2.
Select the Async Channel communications protocol: 232, 485-2W or 485-4W.
Select the Async Channel Rx Baud Rate: 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200
or 38400.
Select the Async Channel Rx Character Format: 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1,
8O1, 8N2, 8E2 or 8O2.
Logging

Config
Settings
Use the  arrow keys to view/scroll through the stored AUPC statistics. Press [CLR] or
[ENT] to return to the previous menu.
5–25
RxFormat:7E2
Clear-All
(E)
Revision 8
MN-SLM5650A
