8.6.6.7.4 Stats | WAN
Clear/Refresh WAN Statistics
Click [Clear] to delete all statistics.
Click [Refresh] to update the page with the most recent statistics.
WAN Tx Frames
Column
Network Layer
Data Link Layer
Satellite Layer
WAN Tx Errors
Column
Network Layer
Data Link Layer
Satellite Layer

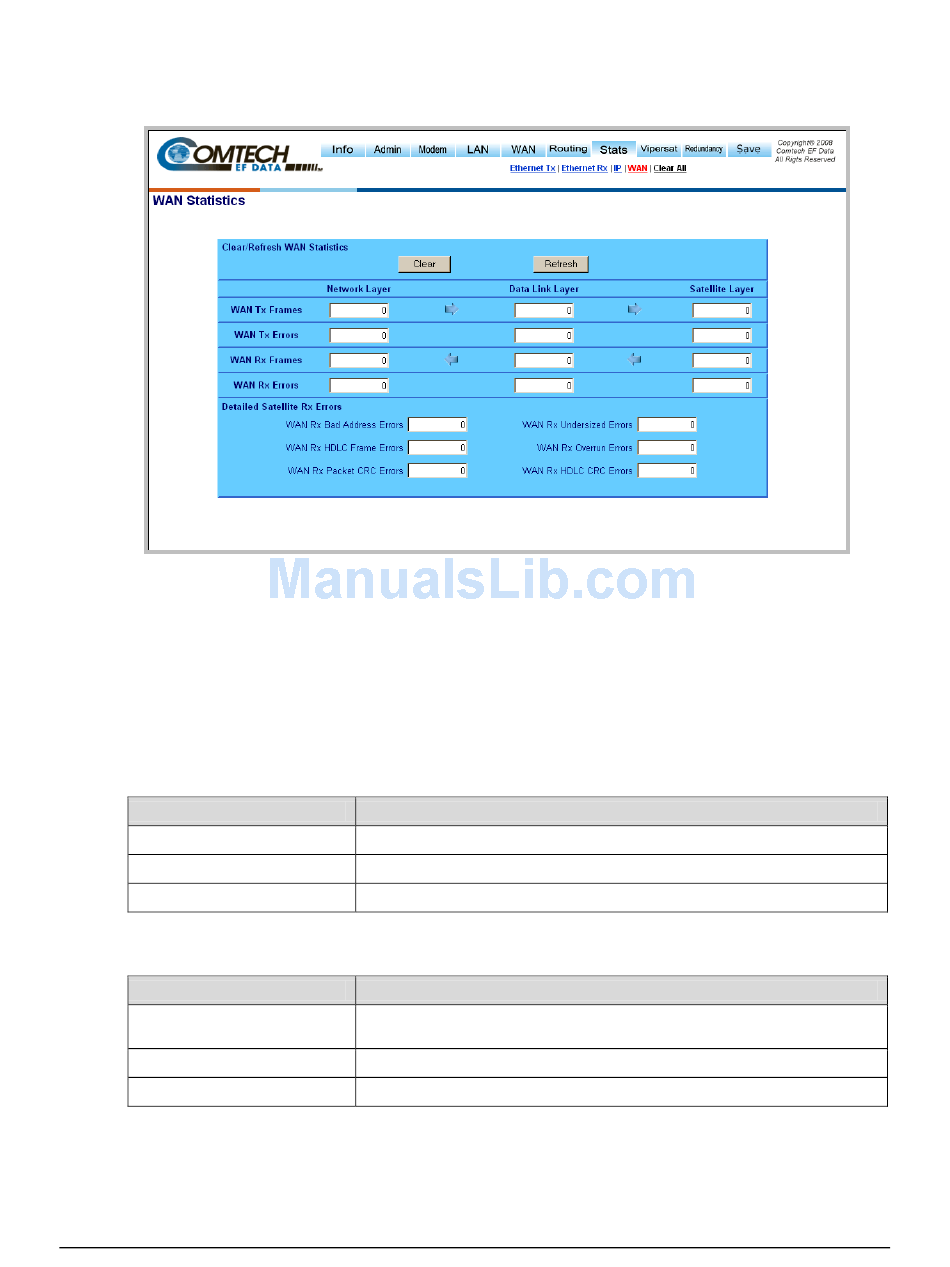

Figure 8-32. Stats | WAN Statistics page

Description
Total packets sent to data link layer.
Total frames sent to satellite layer.
Total frames sent over satellite.
Description
Counter increments if the packets cannot traverse from WAN_DLL_OUT
component to ETH_TX-3 component to due to internal resource scarcity.
Total data link layer Tx errors.
Total satellite layer Tx errors.
