SLM-5650A Satellite Modem
Installation

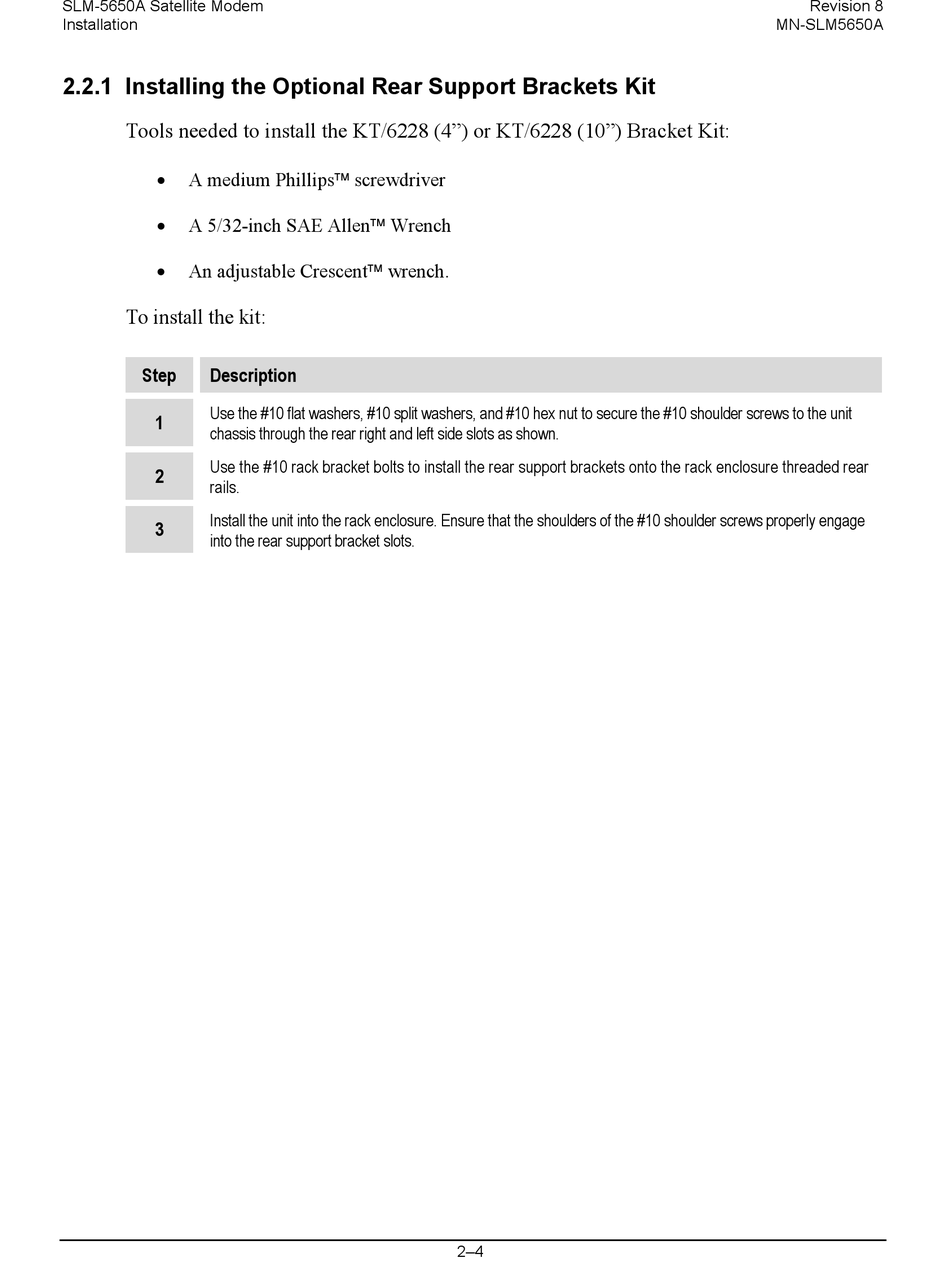

2.2.1 Installing the Optional Rear Support Brackets Kit

Tools needed to install the KT/6228 (4") or KT/6228 (10") Bracket Kit:
A medium Phillips screwdriver
•
• A 5/32-inch SAE Allen Wrench
• An adjustable Crescent wrench.
To install the kit:
Step Description
Use the #10 flat washers, #10 split washers, and #10 hex nut to secure the #10 shoulder screws to the unit
1
chassis through the rear right and left side slots as shown.
Use the #10 rack bracket bolts to install the rear support brackets onto the rack enclosure threaded rear
2
rails.
Install the unit into the rack enclosure. Ensure that the shoulders of the #10 shoulder screws properly engage
3
into the rear support bracket slots.
2–4
Revision 8
MN-SLM5650A
