E.2.5 OSPF Deployment Solution
E.2.5.1 OSPF Test Network

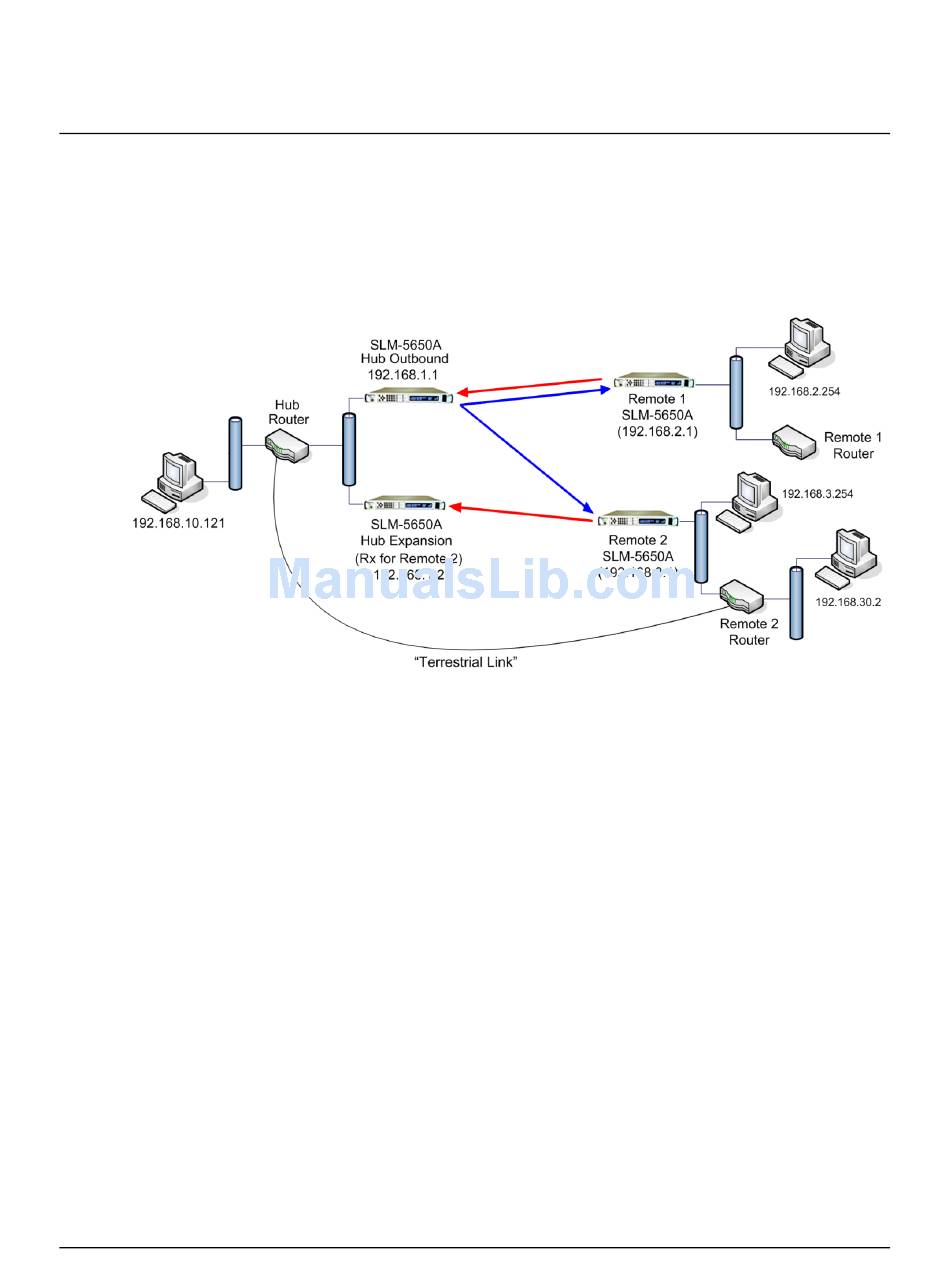

Figure E-4 depicts the test network created to demonstrate how OSPFv2 can be used in a large-
scale Vipersat deployment.
It has been determined that OSPF can be used with a Vipersat and shared outbound topology by
enabling a common router feature: IP Tunneling.

Figure E-4. OSPF Laboratory Test Network
