SLM-5650A Satellite Modem
Appendix E
E.3.3 BPM Mode in Hub Data Traffic Networks
Equipment
1 TDM Modem
2 Hub LAN Data Switch
3 Hub router
4 Other Devices
5 Hub Demodulator Data Switch
6 Demodulator #1
7 Demodulator #2
8 Demodulator #N
In a point-to-multipoint system, at the hub a split-path topology is used and traffic in the Forward
Link and Return Link directions may be processed by different SLM-5650A modems.

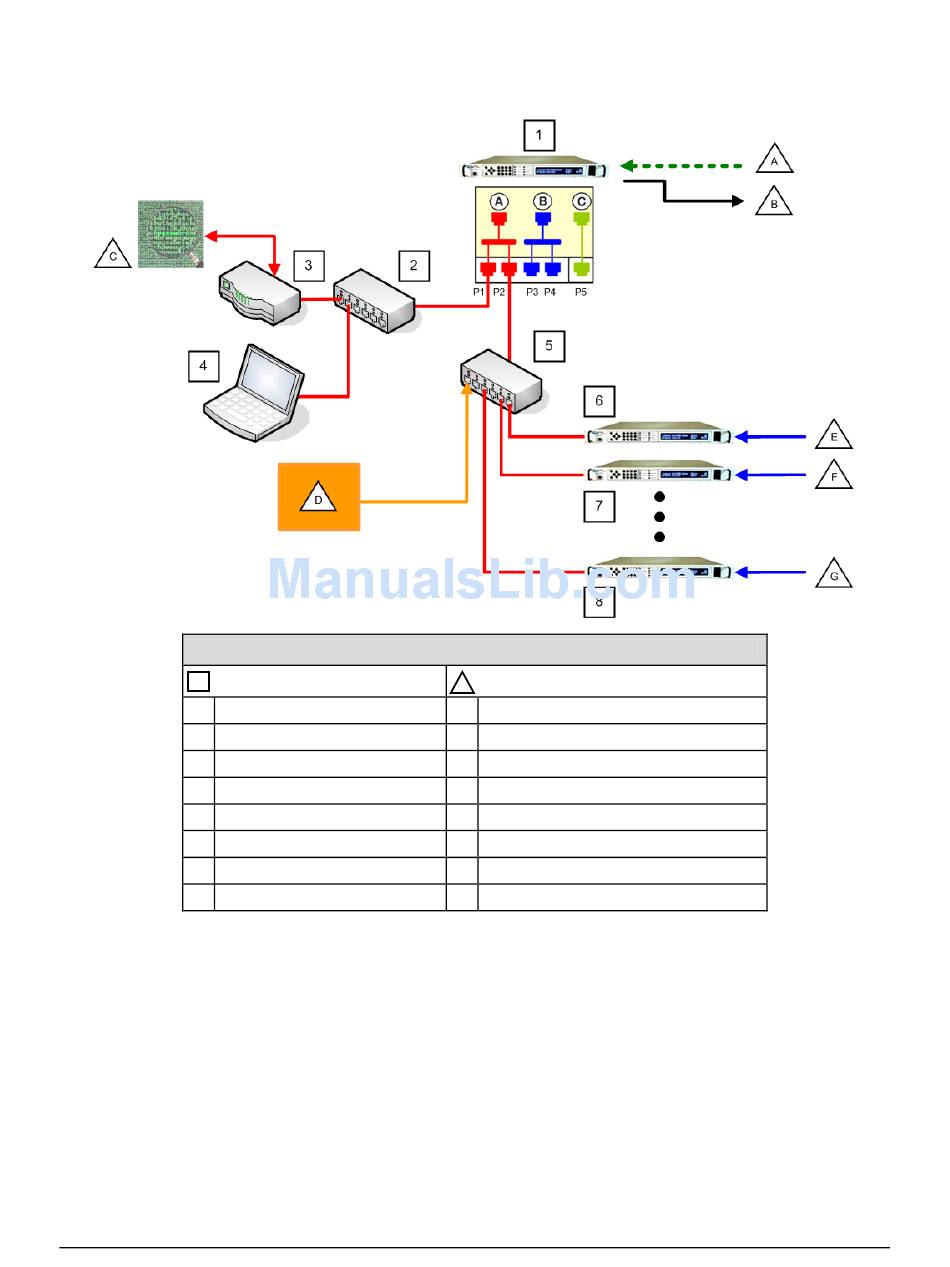

Figure E-7 shows a typical Hub Data Traffic Network for one Layer 2 Network ('P1/P2/A'
shown in red). The other two networks ('P3/P4/B' shown in blue and 'P5/C' shown in green) can
be used in a similar fashion.
Note that the Hub Demodulators used in this configuration are SLM-5650A modems configured
for operation with the optional 'Demodulator only' FAST Feature enabled.
Figure Legend
A
B
C
D
E
F
G

Figure E-7. Hub Data Traffic Network

E–11
Data Type
STDMA Return Link
Forward Link
Network Encryption
MAC Learning Disabled (Entire Switch)
SCPC Return #1
SCPC Return #2
SCPC Return #N
Revision 8
MN-SLM5650A
