Physical Features; Figure 1-4. Slm-5650A Front Panel View; Figure 1-5. Slm-5650A Rear Panel View - Comtech EF Data SLM-5650A Installation And Operation Manual

SLM-5650A Satellite Modem
Introduction
1.3.2

Physical Features

1.3.2.1 Front Panel
Chapter 5. FRONT PANEL OPERATION
Item Description
1 USB Port
2 6-button keypad
3 12-button array
4 10 Light-Emitting Diodes (LEDs)
40-character, 2-line Vacuum Fluorescent Display
5
(VFD)
6 Backlit On/Off Power Switch
7 Rack handles
Local control of the SLM-5650A is accomplished from the modem's front panel (Figure 1-4).
The function and behavior of the keypad/data entry array, LED Indicators, and VFD are described
in detail in Chapter 5.
1.3.2.2 Rear Panel
Chapter 3. R E A R P A NE L C ONNE C T OR S
External cables are attached to connectors on the SLM-5650A's rear panel (Figure 1-5
connector is described in detail in Chapter 3.
SLM-5650A Front Panel Features

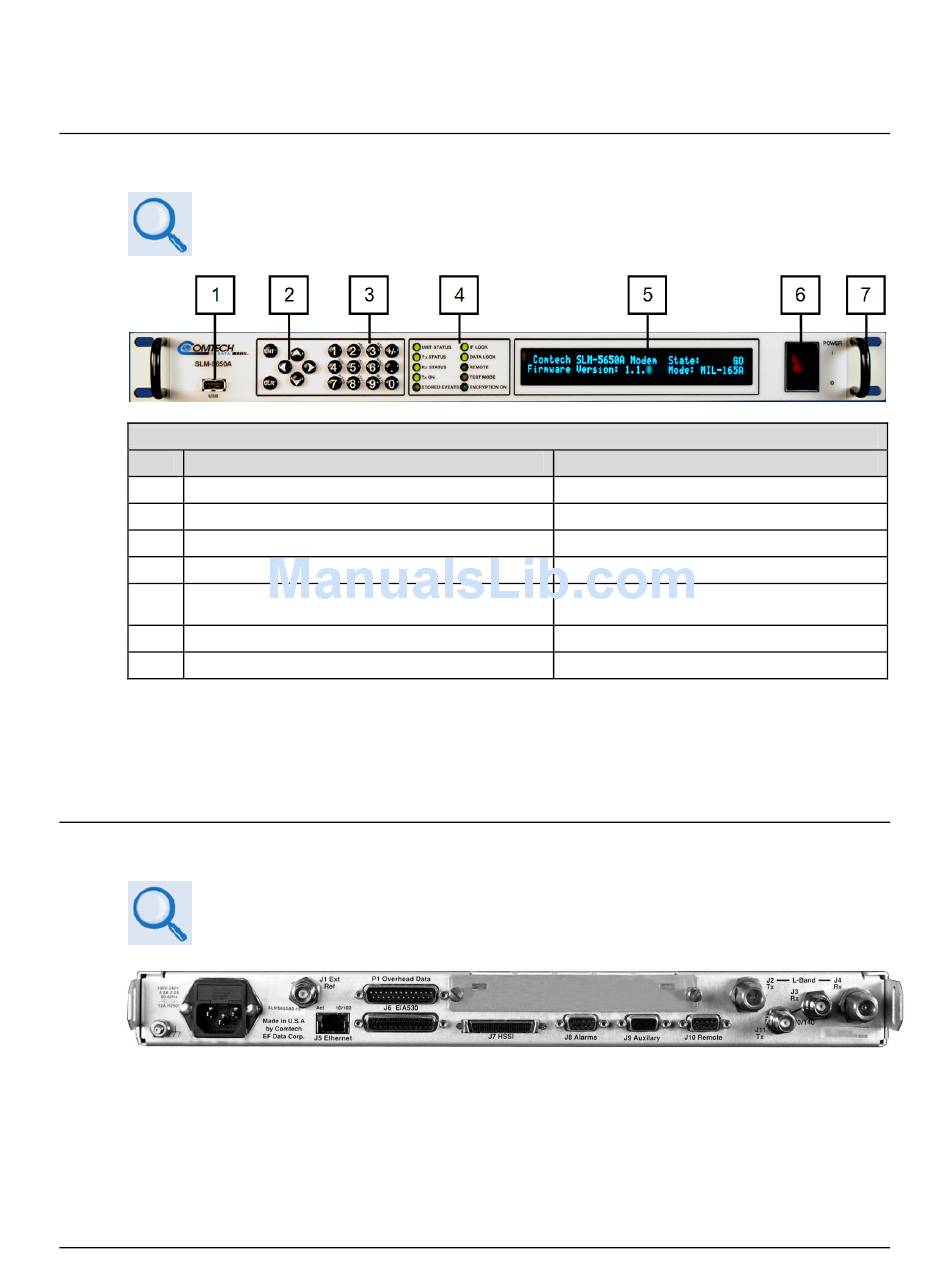

Figure 1-4. SLM-5650A Front Panel View

Figure 1-5. SLM-5650A Rear Panel View

1–5
MN-SLM5650AMN-SLM5650A
Function
Reserved for future software support
Local control via menu navigation
Manual data entry
Overall status monitoring at a glance
Display of messages, menus and prompts
Unit power
Eases installation into / removal from rack
P INOUT S
AND
Revision 8
. Each
)
