SLM-5650A Satellite Modem
Appendix E
E.3.5 Remote Data Traffic Handling
Equipment
1 Remote Modem
2 Remote LAN Data Switches
3 Remote Router
4 Other Devices
In BPM Mode, the remote role is the same for either point-to-point or point-to-multipoint
topologies. No special configuration is required for remote operation.
As shown in Figure E-9:
• NP Ethernet ports P1 and P2, with internal Data WAN Port 'A' forms the red switch
group referred to as Bridge-Group1;
• NP Ethernet ports P3 and P4, with internal Management WAN Port 'B' forms the blue
switch group referred to as Bridge-Group2;
The SLM-5650A Base Modem J5 Ethernet port, with internal VS WAN Port 'C' forms
•
the green switch group referred to as Router-Group.
The following rules are observed with this configuration:
NP Interface ports P1, P3, and Base Modem Ethernet Port J5 are the primary ports.
•
NP Interface ports P2 and P4 are the secondary ports.
•
Note that, while the remote LAN switches shown in Figure E-9 are included to illustrate how
third party Layer2 switches can be used, their use is not mandatory.
Figure Legend

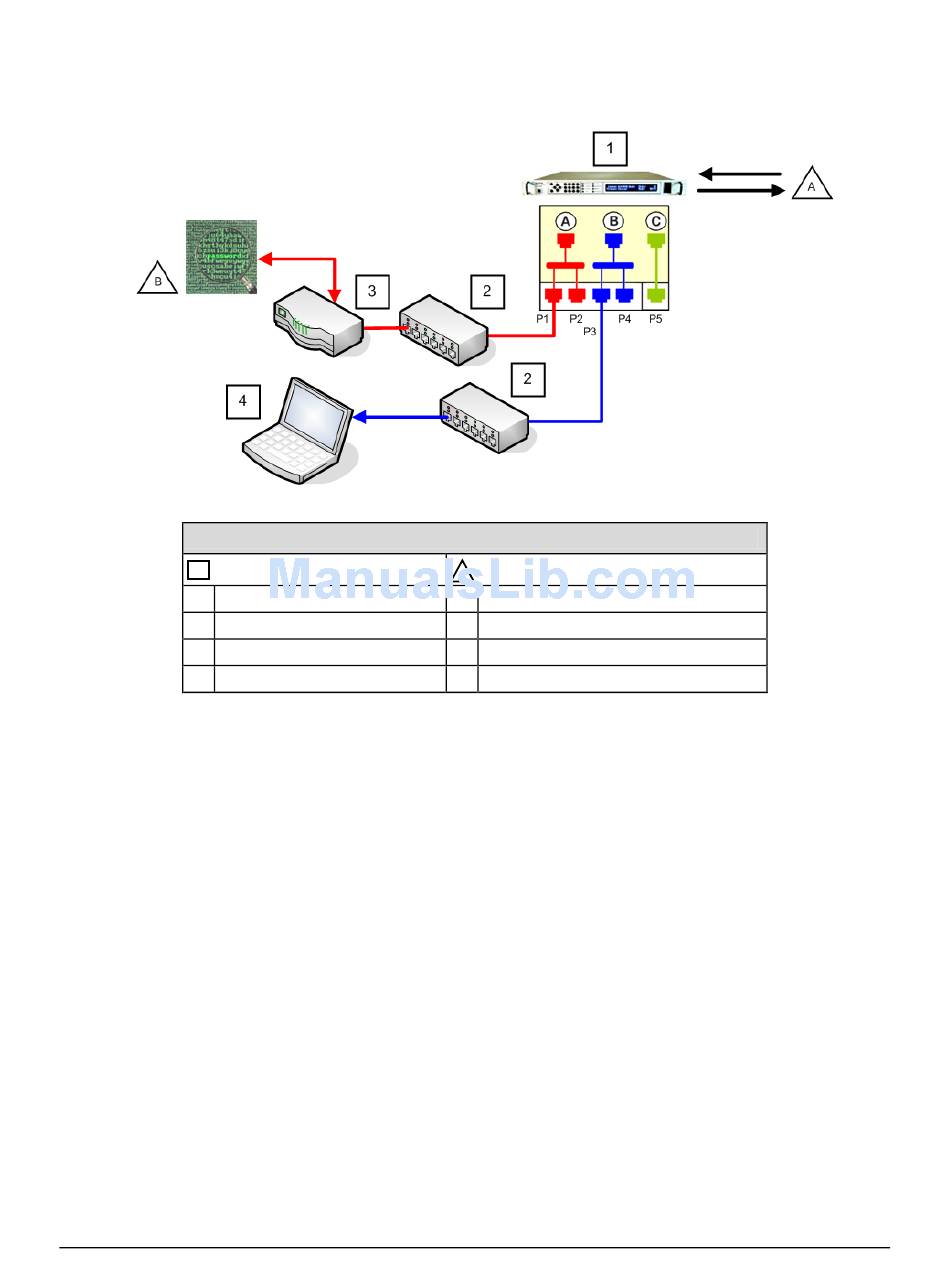

Figure E-9. Remote (Spoke) Data Traffic Network

Data Type
A Tx / Rx Data Link from Hub
B Network Encryption
E–14
Revision 8
MN-SLM5650A
