SLM-5650A Satellite Modem
TRANSEC Module HTTPS Interface
10.4.3

Stats (Statistics) | Module Status

Encryption Parameters
Item
AES256 Firmware Version
Encryption Frame Length
Board Temp
TRANSEC Clock Status
Transmit Status
Item
TX Frame Count
TX Status
DCM Lock
Bypass Traffic
Crypto Traffic
BIST Done
Receive Status

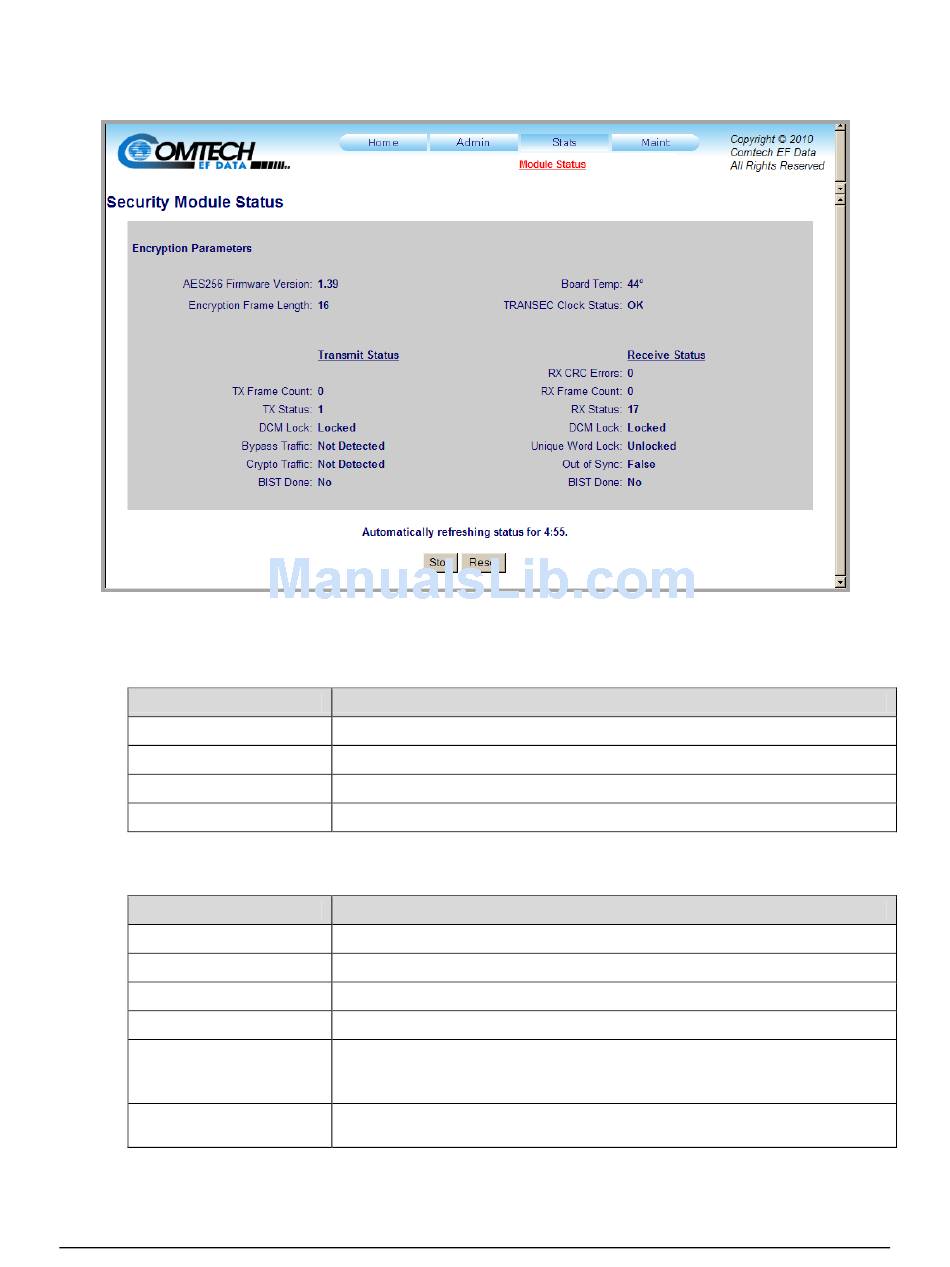

Figure 10-6. Stats | Module Status page

Description
Identifies the version of the AES 256 core.
Displays the currently configured AES 256 frame length.
Displays the temperature of the TRANSEC Module
Displays the DCM locked status for the AES 256 core.
Description
Displays the number of transmitted AES 256 frames.
Describes the value of the Tx Status register.
Displays the state of the Tx DCM lock.
Displays the encryption status (Bypass on means Encryption off).
When Detected, the module has sampled outgoing traffic and verifies it has been
encrypted. When Not Detected, encryption is off, or the module cannot verify
encrypted traffic.
Indicates if the AES 256 core is analyzing the results of its Built-in Self Test (BIST)
for the TRANSEC Tx.
10–13
Revision 8
MN-SLM5650A
