2.2.2 Installing the Optional Bearingless Rack Slide Set

The optional FP/SL0006 Bearingless Rack Slide Set may be installed into the equipment rack
cabinet and onto the sides of the SLM-5650A as shown in Figure 2-4 and per the following
procedure:
Step Task
1 Use the provided hardware to install one slide onto each side of the SLM-5650A chassis.
Use the provided hardware to install the slide rail components into each interior side of the
2
equipment rack cabinet.
Install the unit into the front of the equipment rack. Ensure that the slides properly engage
3
the cabinet-mounted slide rails.
Continue to slide the modem into the equipment rack to its final operating position. Then,
4 use four user-provided screws to secure the modem to the equipment rack's right and left
threaded front rails (through the front panel slots).
CEFD Part Number
FP/SL0006

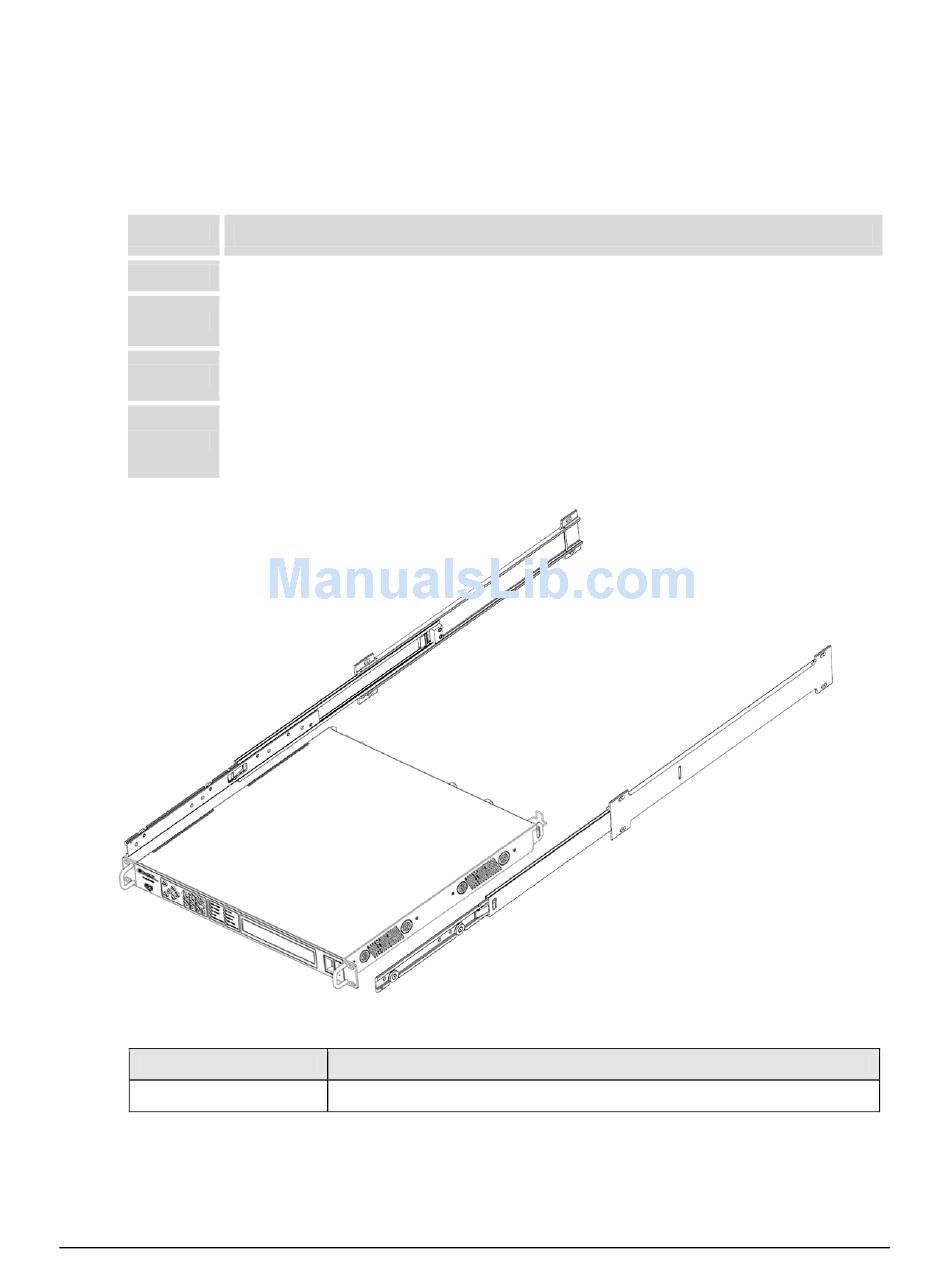

Figure 2-4. Optional Bearingless Rack Slide Set Installation

Description
Bearingless Rack Slide Set – 26"
