SLM-5650A Satellite Modem
Front Panel Operation

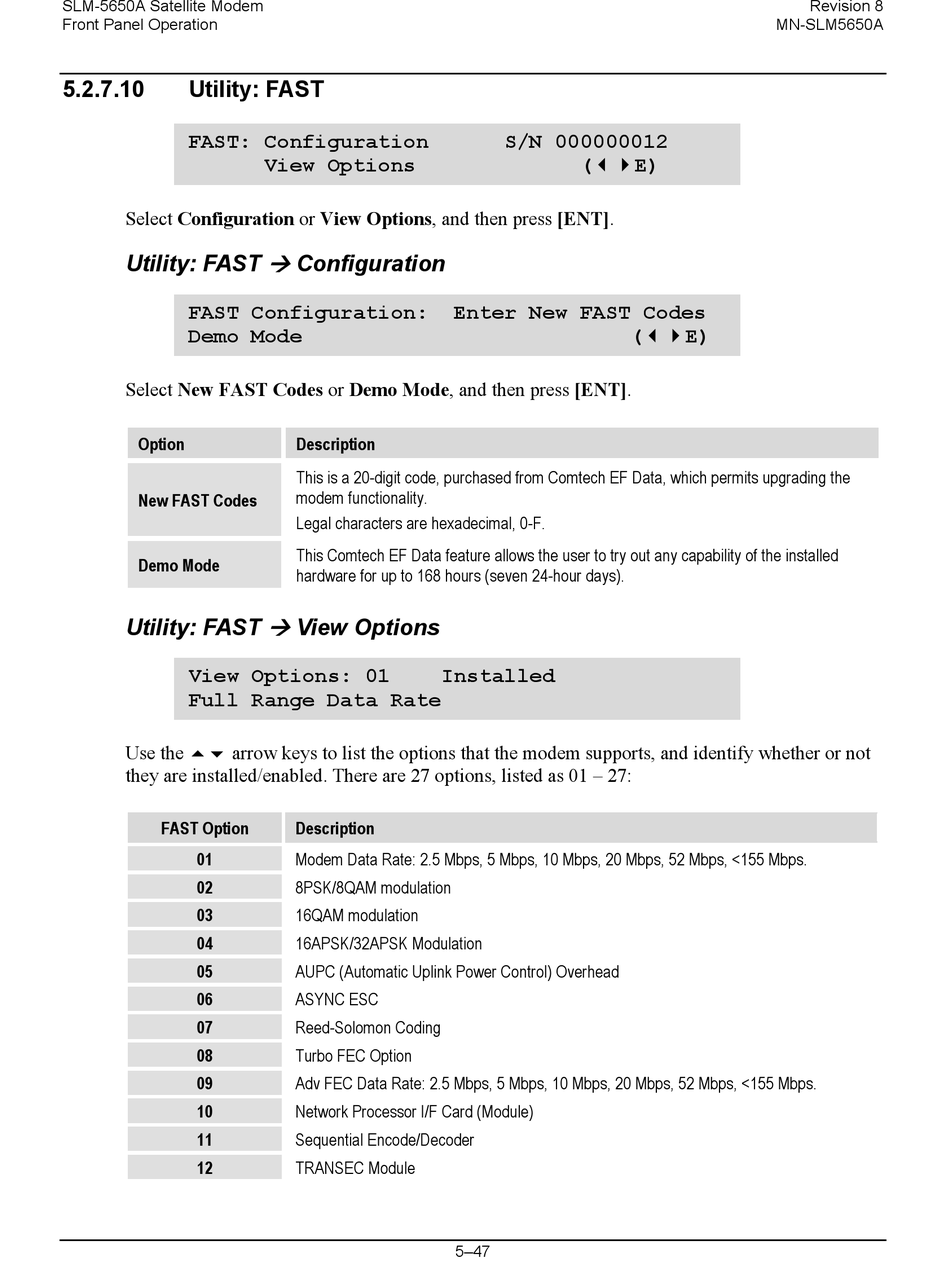

5.2.7.10 Utility: FAST
FAST: Configuration
Select Configuration or View Options, and then press [ENT].
Utility: FAST
FAST Configuration:
Demo Mode
Select New FAST Codes or Demo Mode, and then press [ENT].
Option
New FAST Codes
Demo Mode
Utility: FAST

View Options: 01

Full Range Data Rate
Use the  arrow keys to list the options that the modem supports, and identify whether or not
they are installed/enabled. There are 27 options, listed as 01 – 27:
FAST Option
01
02
03
04
05
06
07
08
09
10
11
12
View Options
Configuration

Description
This is a 20-digit code, purchased from Comtech EF Data, which permits upgrading the
modem functionality.
Legal characters are hexadecimal, 0-F.
This Comtech EF Data feature allows the user to try out any capability of the installed
hardware for up to 168 hours (seven 24-hour days).
View Options

Installed
Description
Modem Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
8PSK/8QAM modulation
16QAM modulation
16APSK/32APSK Modulation
AUPC (Automatic Uplink Power Control) Overhead
ASYNC ESC
Reed-Solomon Coding
Turbo FEC Option
Adv FEC Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
Network Processor I/F Card (Module)
Sequential Encode/Decoder
TRANSEC Module
S/N 000000012
(E)
Enter New FAST Codes
(E)
5–47
Revision 8
MN-SLM5650A
