SLM-5650A Satellite Modem
Network Processor (NP) Interface
8.6.6.9 Redundancy page
Appendix F. 1:1 REDUNDANCY
This page provides read-only status information on the configured redundant configuration.
The SLM-5650A Satellite Modem, when connected to a Comtech EF Data CRS-311 1:1
Redundancy Switch, provides fully-automatic protection of IP packet traffic in the case of
equipment failure.
If the the Redundancy tab is selected without a 1:1 Redundant Configuration, per Figure 8-35 the
1:1 Redundancy status is displayed as Unavailable.

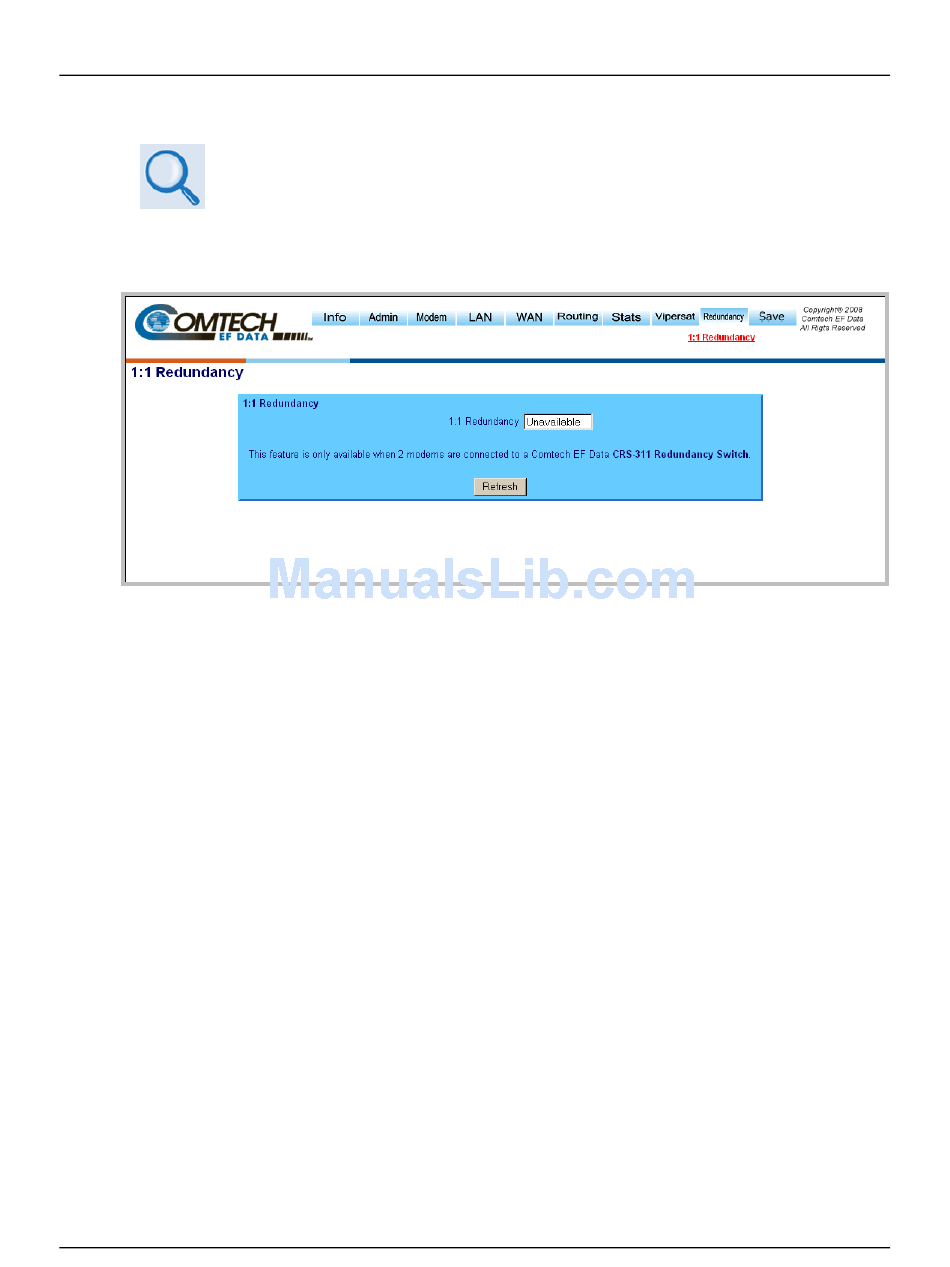

Figure 8-35. Redundancy page

8–55
Revision 8
MN-SLM5650A
