Symmetric Data Rate Link - Comtech EF Data SLM-5650A Installation And Operation Manual

SLM5650A_CDM625 Satellite Modem
DoubleTalk Carrier-in-Carrier Option
15.4.5.1

Symmetric Data Rate Link

Consider the following example:
Satellite & Transponder
Earth Station 1
Earth Station 2
Data Rate
The traditional link was based on QPSK TPC 3/4 and required 0.96 MHz of leased BW. The
2

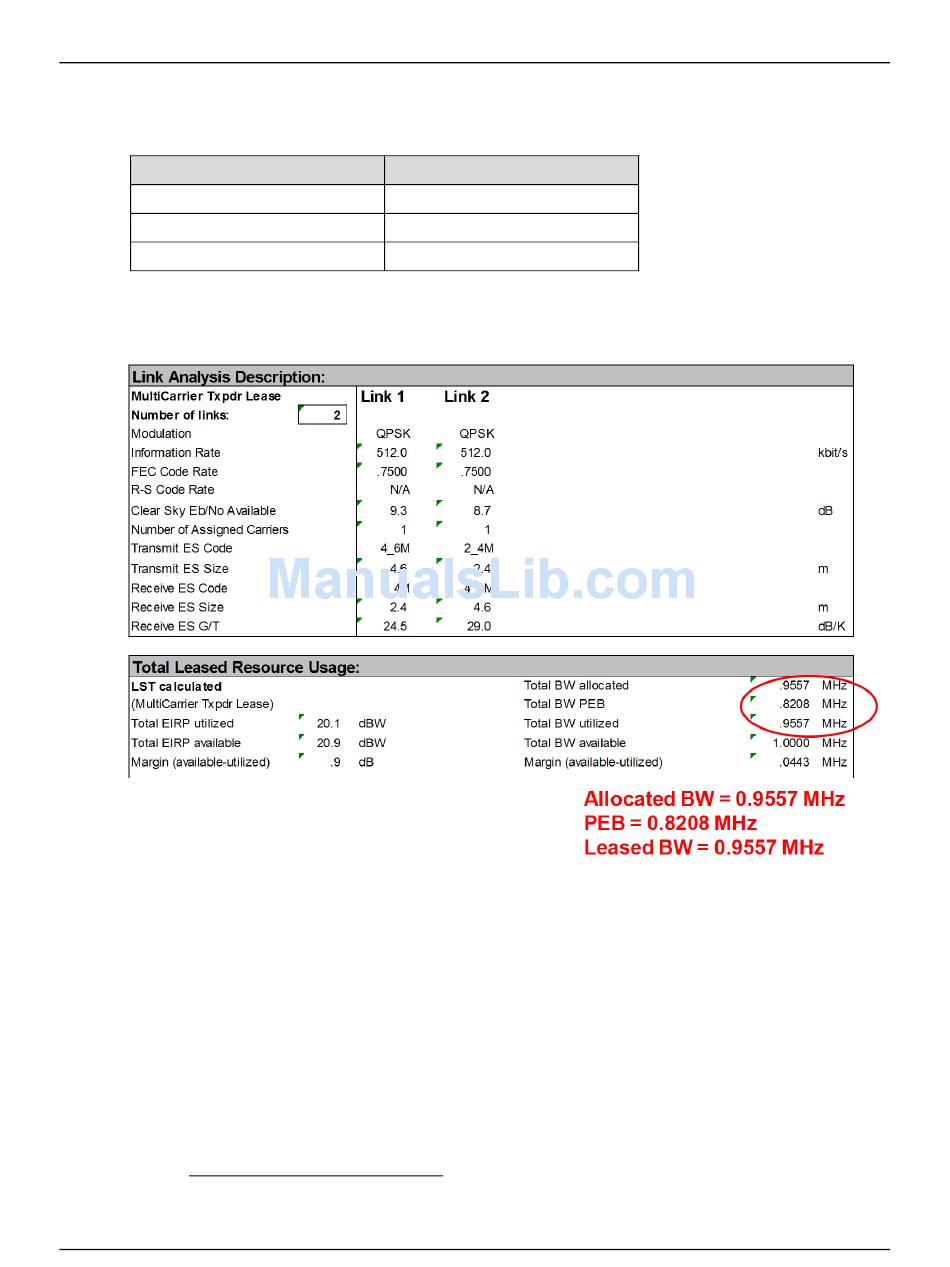

LST summary for the traditional link is as follows:
Carrier-in-Carrier link design involved trying different Modulation & FEC Code Rates to find the
optimal combination:
• 8-QAM, LDPC 2/3 with Carrier-in-Carrier
QPSK, LDPC 3/4 with Carrier-in-Carrier
•
• QPSK, LDPC 2/3 with Carrier-in-Carrier
• QPSK, LDPC 1/2 with Carrier-in-Carrier
2
LST is Intelsat's Lease Transmission Plan Program.
Galaxy 18 @ 123º W, 13K/13K
Phoenix, AZ – 4.6 m
Phoenix, AZ – 2.4 m
512 kbps / 512 kbps
