Figure 8-16. Modem | Monitor (Modem Status) Page - Comtech EF Data SLM-5650A Installation And Operation Manual

SLM-5650A Satellite Modem
Network Processor (NP) Interface
8.6.6.3.2 Modem | Monitor (Modem Status)
Use this read-only page to view the currently available modem receive parameters and operating
temperature.
Receive Parameters
Displays the modem's currently reported link values as follows:
Item
BER
Eb/No
Frequency Offset
Signal Level
Temperature
Reports the temperature of the modem in degrees Celsius.

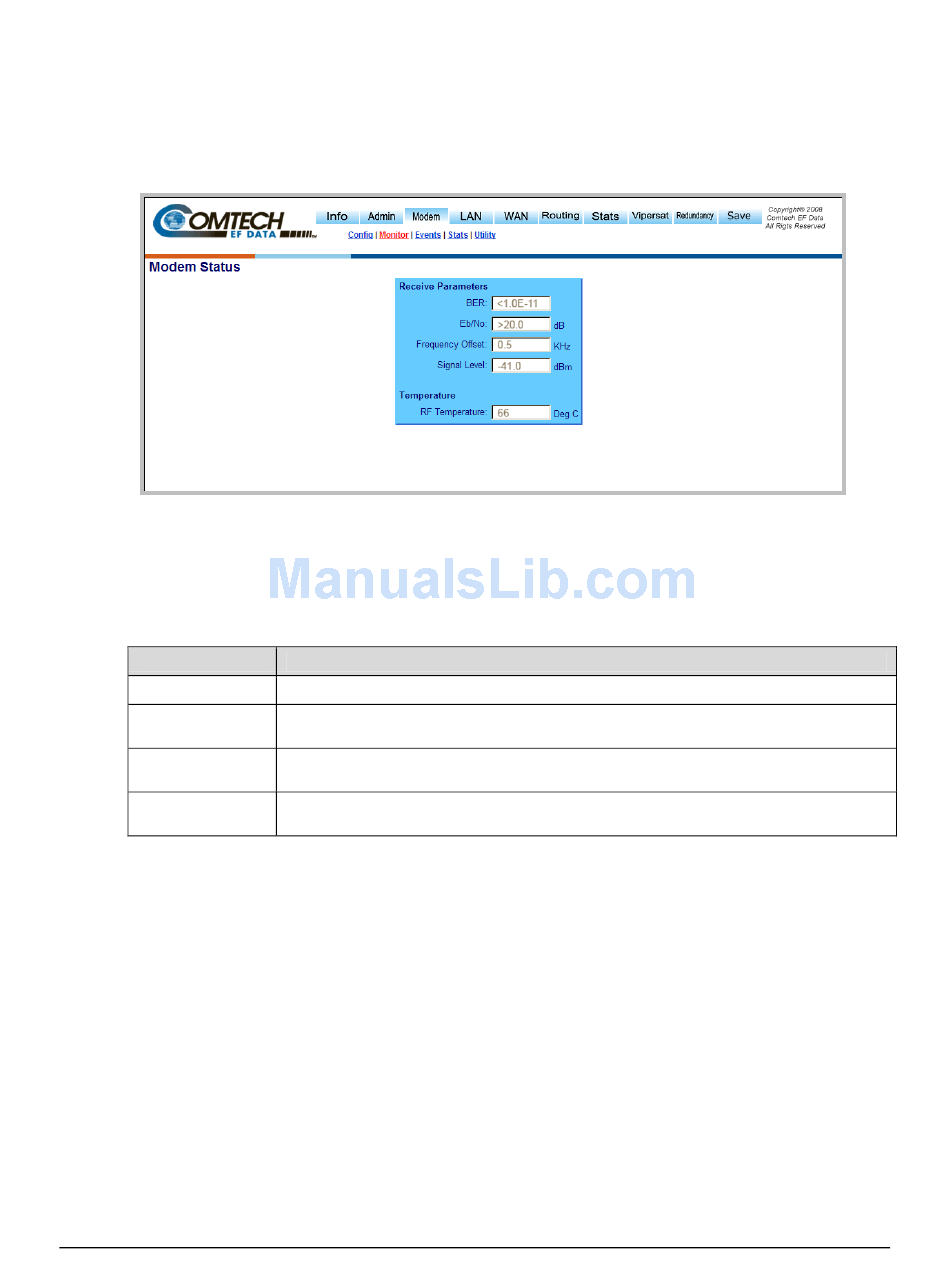

Figure 8-16. Modem | Monitor (Modem Status) page

Description
Displays the estimated BER based on the demodulator's measurement of the carrier to noise.
Displays the estimated Eb/No of the received carrier.
The range is threshold to 20 dB Eb/No.
Displays the received carrier frequency offset in Hz.
The range is the same as the acquisition range of the modem, 60 kHz.
Displays the signal level of the received carrier in dBm.
The range supported is +15 to –60 dBm.
