8.6.6.6 Routing pages
Select the Routes or OSPF hyperlink to continue.
8.6.6.6.1 Routing | Routes
Use this page to enter static routes into the NP Interface. This facilitates the routing of IP traffic
over the satellite or to another device on the local LAN. Route entries can be in any combination of
Unicast and Multicast routes.
Route Table (Display)
This read-only table provides information on a per-route basis:
Column
Index
Route Description
Destination IP/Mask
Interface
Next Hop IP

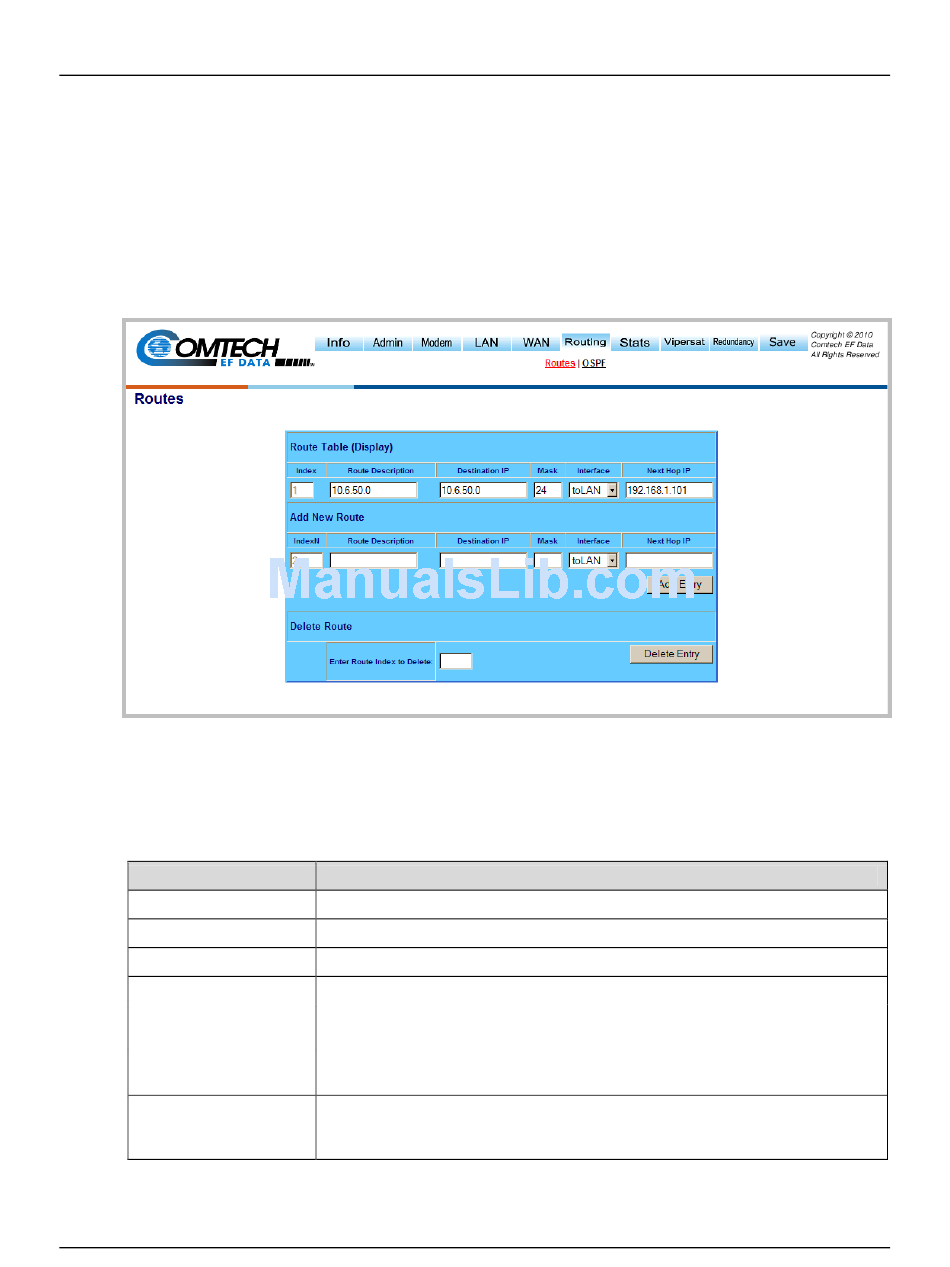

Figure 8-26. Routing | Routes page

Description
Identifies the route entry [1 to 256].
Label that helps users to maintain their network.
Identifies the route to the destination network.
There are two valid selections for routing to a destination network:
toWAN is selected when the route to the destination network is over the
•
satellite link. The toWAN routes do not need a Next Hop IP Address.
toLAN is used when the route to the destination network is attached to the LAN
•
interface.
When the route is of type toLAN, the Next Hop IP Address defines the locally attached
router's IP Address. which can be used to route to the destination network. This is the case
when there is another subnet addressed to the modem on the LAN side.
