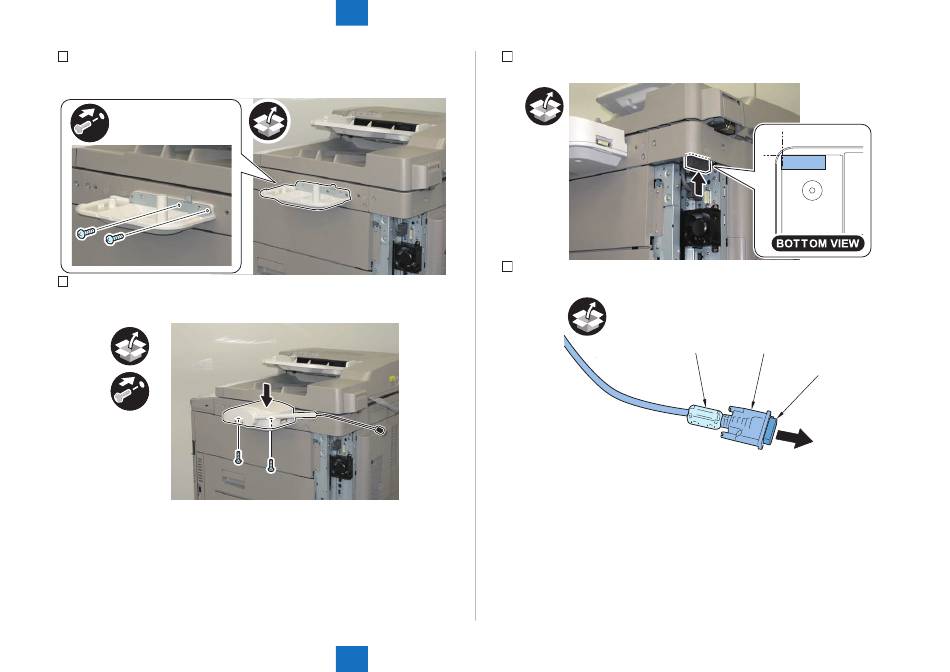

12) Install the Speaker Unit (Lower).
• 2 Screws (Binding; M4x14)
x2
13) Install the Speaker Unit (Upper).
• 2 Screws (Use the screws removed in step 10.)
x2
9
Installation > Voice Operation Kit-C2 > Installation Procedure
14)
15)
F-9-160
F-9-161
9 Installation > Voice Operation Kit-C2 > Installation Procedure
Affix the Cable Face Seal.
Install the Ring Cores to both ends of the DVI Cable, and remove the cap.
Ring Core
9-72
F-9-162
DVI Cable
Cap
F-9-163
9-72
