3. The output current can not exceed the rated output current and the output power can not
exceed the rated output power in the voltage range.

3.7 Structure diagram

Below is the layout figure of the inverter (take the inverter of 380V 30kW as the example).
Serial
No.
1 Keypad port
2 Upper cover
3
4
Cooling fan
5 Wiring port
6 Name plate
7 Side cover
8 Control terminals
9 Main circuit terminals
10 Main circuit cable port
11 POWER light
2

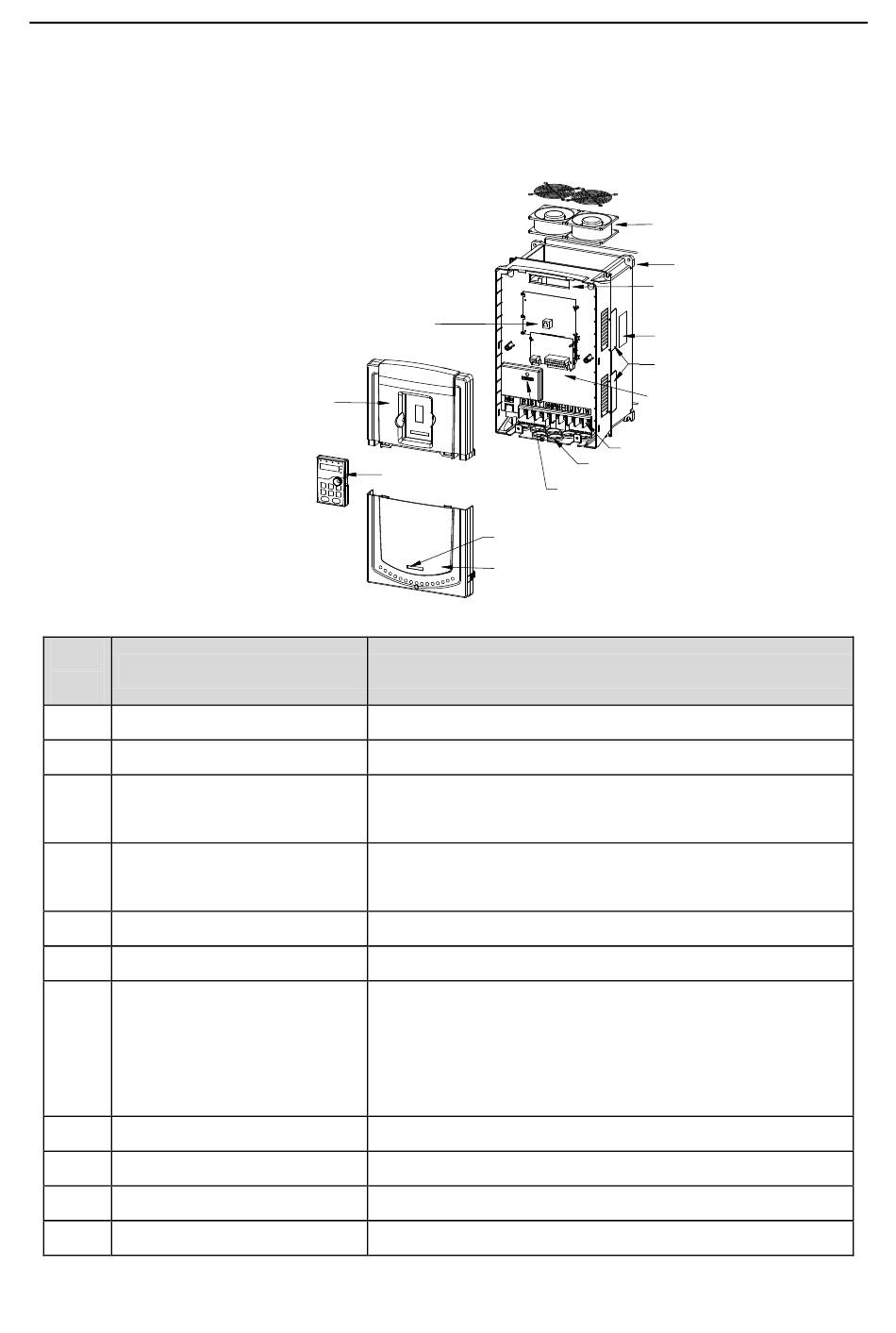

Fig 3-5 Product structure
Name
Connect the keypad
Protect the internal parts and components
See
Keypad
information
See Maintenance and hardware fault diagnosis for
detailed information
Connect to the control board and the drive board
See Product overview for detailed information
Optional. The side cover will increase the protective
degree of the inverter. The internal temperature of the
inverter will increase, too, so it is necessary to derate the
inverter at the same time
See Electric installation for detailed information
See Electric installation for detailed information
Fix the main circuit cable
Power indicator
1
3
13
14
Keypad operation
-17-
Product overview
4
5
6
7
8
9
10
11
12
Illustration
procedure for detailed
