Goodrive300-19 series open loop vector inverter special for hosit
Inverter model
GD300-19-132G-4
GD300-19-160G-4
GD300-19-185G-4
GD300-19-200G-4
GD300-19-220G-4
GD300-19-250G-4
GD300-19-280G-4
GD300-19-315G-4
Note:
1. The rated derate voltage of the input reactor is 2%±15%.
2. The power factor of the input side is above 90% after installing DC reactor.
3. The rated derate voltage of the output reactor is 1%±15%.
4. Above options are external, the customer should indicate when purchasing.
C.7 Filters

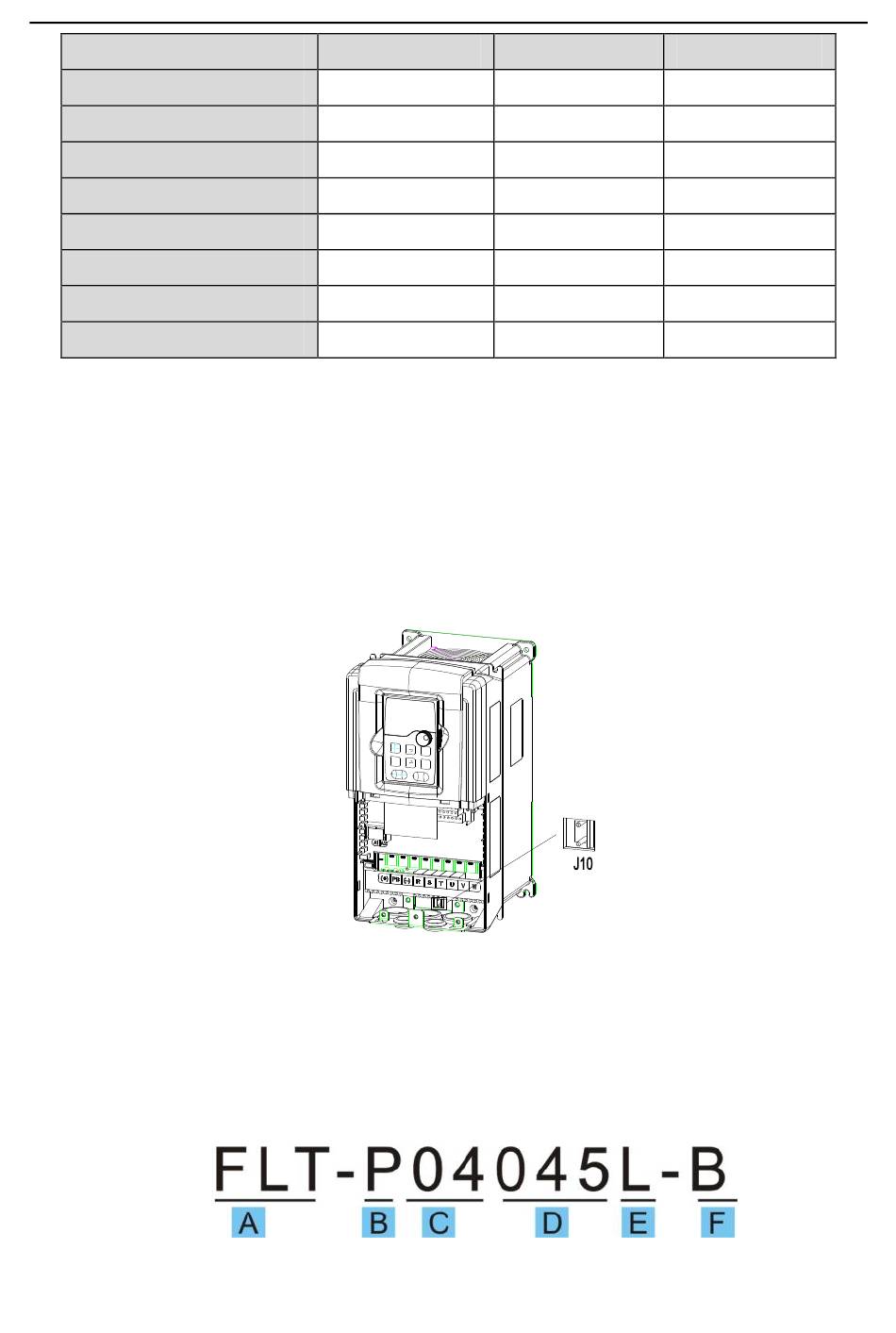

Goodrive300-19 series inverters have embedded C3 filters which can be connected by J10.
The input interference filter can decrease the interference of the inverter to the surrounding
equipments.
Output interference filter can decrease the radio noise cause by the cables between the inverter and
the motor and the leakage current of the conducting wires.
Our company configured some filters for the convenience of the users.
C.7.1 Filter type instruction
Input reactor
ACL2-132-4
ACL2-160-4
ACL2-200-4
ACL2-200-4
ACL2-250-4
ACL2-250-4
ACL2-280-4
ACL2-315-4
-247-
Peripherial options and parts
DC reactor Output reactor
DCL2-132-4
DCL2-160-4
DCL2-200-4
DCL2-200-4
DCL2-280-4
DCL2-280-4
DCL2-280-4
DCL2-315-4
OCL2-132-4
OCL2-160-4
OCL2-200-4
OCL2-200-4
OCL2-250-4
OCL2-250-4
OCL2-280-4
OCL2-315-4
