Goodrive300-19 series open loop vector inverter special for hosit Peripherial options and parts
Peripherial options and parts Appendix C
C.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive300-19 series.
C.2 Peripherial wiring

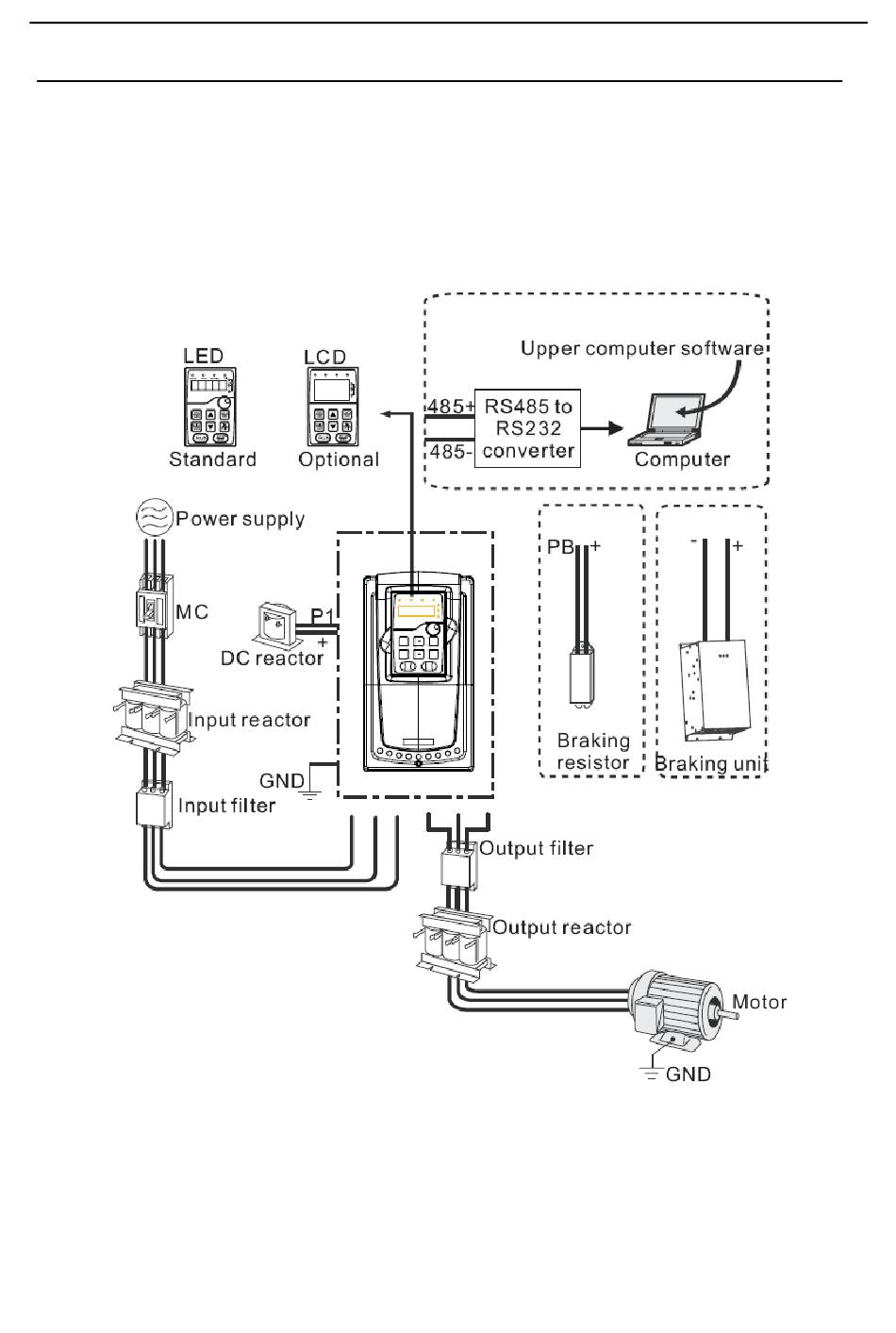

Below is the peripherial wiring of Goodrive300-19 series inverters.
Note:
1. The inverters (≤55kW) are embedded with braking unit.
2. The inverters (≥75kW) have P1 terminal and can be connected with external DC reactors.
3. The braking units apply standard braking units. Refer to the instruction of DBU for detailed
information.
