Goodrive300-19 series open loop vector inverter special for hosit
Installation guidelines

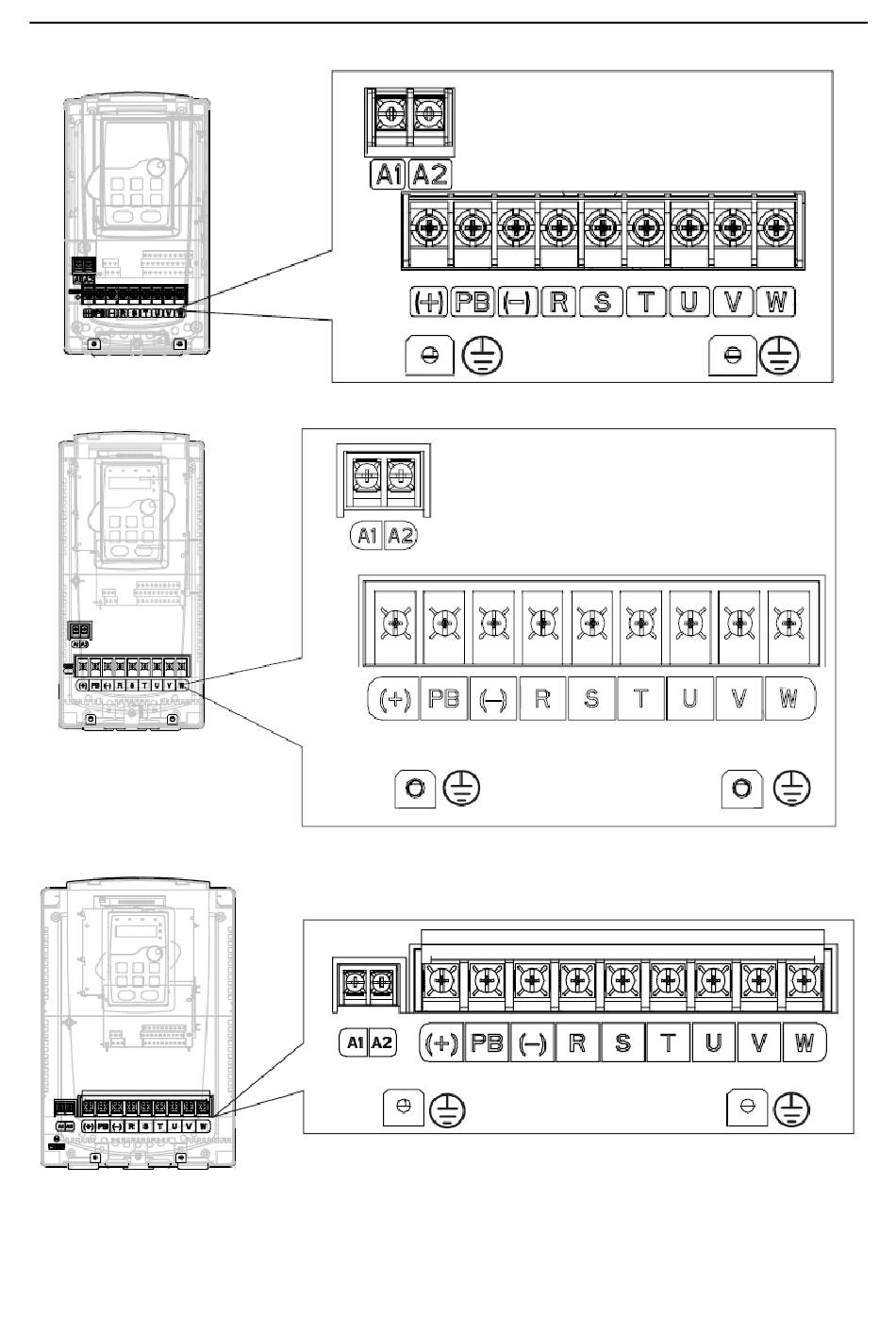

Fig 4-8 Terminals of main circuit for the inverters of 380V 1.5~2.2kW
Fig 4-9 Terminals of main circuit for the inverters of 380V 4~5.5kW
Fig 4-10 Terminals of main circuit for the inverters of 380V 7.5~11kW
Fig 4-11 Terminals of main circuit for the inverters of 380V 15~18kW
-26-
