4.3.6 Input/Output signal connection figure

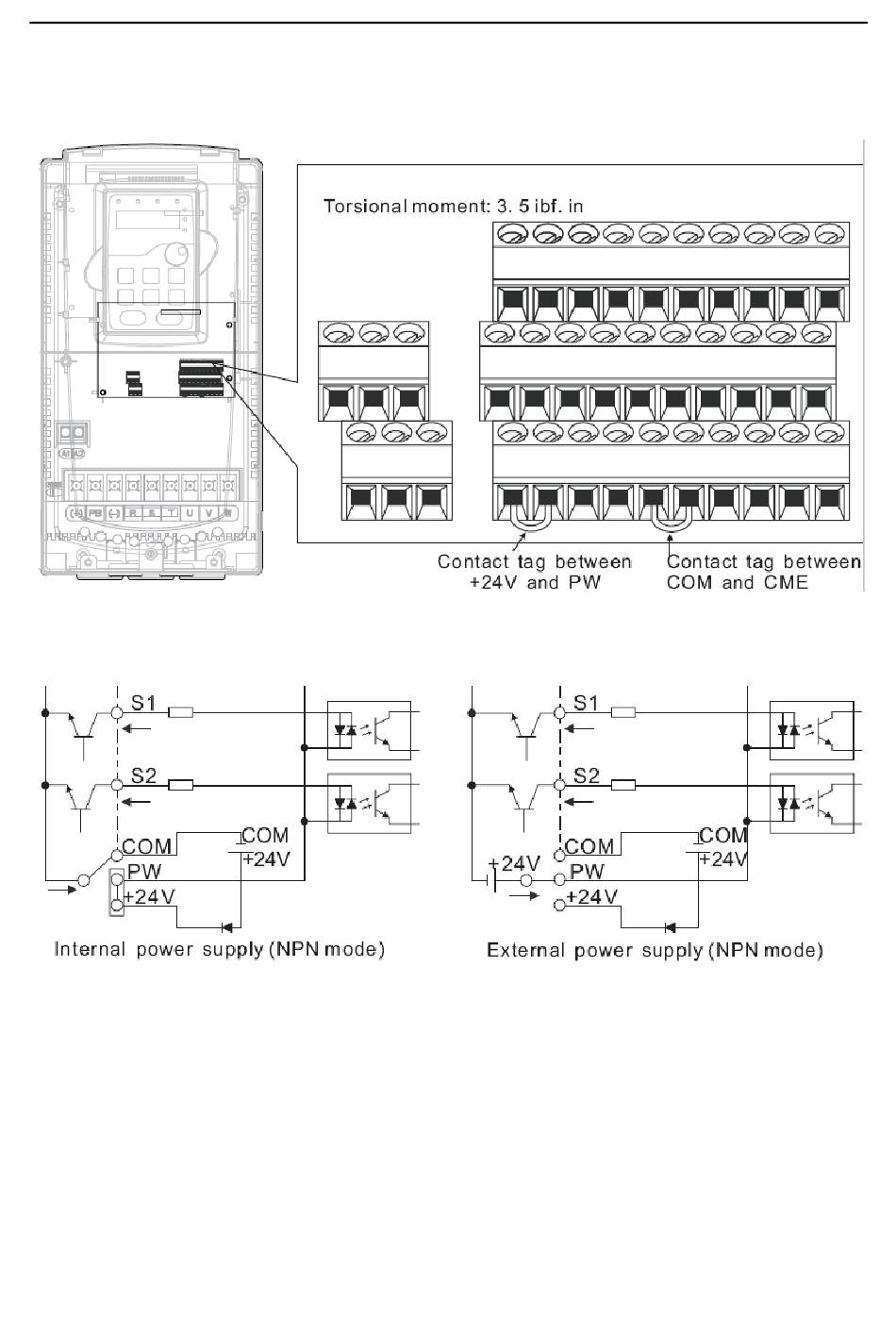

Please use U-shaped contact tag to set NPN mode or PNP mode and the internal or external power
supply. The default setting is NPN internal mode.
Fig 4-21 U-shaped contact tag
If the signal is from NPN transistor, please set the U-shaped contact tag between +24V and PW as
below according to the used power supply.
Fig 4-22 NPN modes
If the signal is from PNP transistor, please set the U-shaped contact tag as below according to the
used power supply.
