Goodrive300-19 series open loop vector inverter special for hosit
Function
Name
code
V/F
P04.03 frequency 1
of motor 1
V/F
P04.04 voltage 1 of
motor 1
V/F
P04.05 frequency 2
of motor 1
V/F
P04.06 voltage 2 of
motor 1
V/F
P04.07 frequency 3
of motor 1
V/F
P04.08 voltage 3 of
motor 1

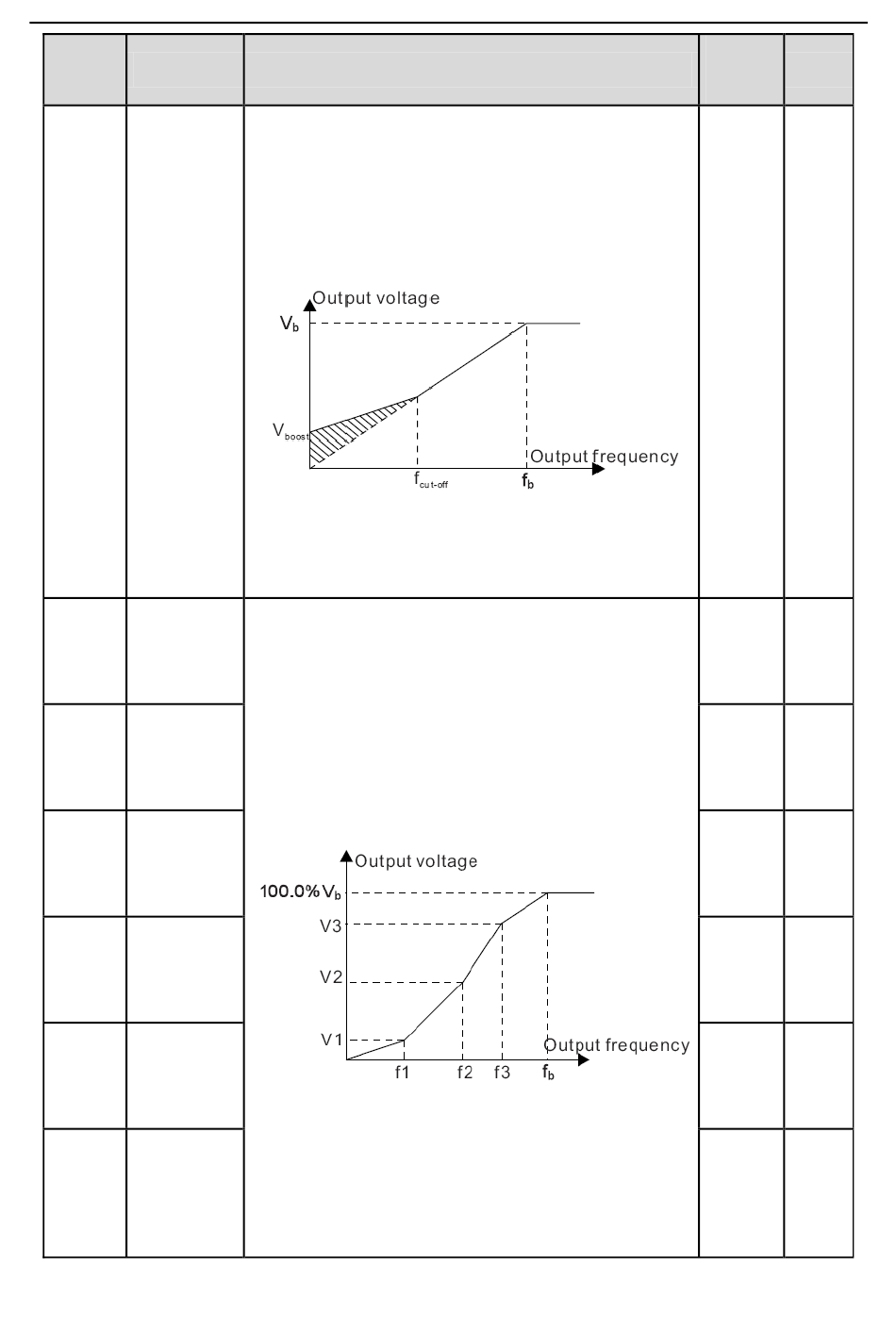

Detailed instruction of parameters
When the torque boost is set to 0.0%, the inverter is
automatic torque boost.
Torque boost threshold: under the threshold, the
torque boost is valid, but over the threshold, the
torque boost is invalid.
The setting range of P04.01: 0.0%: (automatic)
0.1%~10.0%
The setting range of P04.02: 0.0%~50.0%
When P04.00=1, the user can set V/F curve through
P04.03~P04.08.
V/F is generally set according to the load of the motor.
Note: V1＜V2＜V3, f1＜f2＜f3. Too high low
frequency voltage will heat the motor excessively
or cause damage. The inverter may stall when
overcurrent or overcurrent protection.
The setting range of P04.03: 0.00Hz~P04.05
The setting range of P04.04: 0.0%~110.0% (the rated
voltage of motor 1)
The setting range of P04.05: P04.03~P04.07
The setting range of P04.06: 0.0%~110.0% (the rated
-66-
Function parameters
Default
Modify
value
○
0.00Hz
○
00.0%
○
00.00Hz
○
00.0%
○
00.00Hz
○
00.0%
