necessary to add reactor compensation. If the distance between the inverter and motor is 50~100m,
see the table below for model selection; if it exceeds 100m, consult with INVT technical support.
The inverters of 380V (≥75kW) can be equipped with external DC reactors for the improvement of
power factors and the avoidance of damage from high input current to the rectifying components
because of the high-capacity transformer. The device can also cease the damage to the rectifying
components which are caused by supply net voltage transients and harmonic waves of the loads.
C.6.1 AC 3PH 380V(-15%)~440V(+10%)
Inverter model
GD300-19-1R5G-4
GD300-19-2R2G-4
GD300-19-004G-4
GD300-19-5R5G-4
GD300-19-7R5G-4
GD300-19-011G-4
GD300-19-015G-4
GD300-19-018G-4
GD300-19-022G-4
GD300-19-030G-4
GD300-19-037G-4
GD300-19-045G-4
GD300-19-055G-4
GD300-19-075G-4
GD300-19-090G-4
GD300-19-110G-4
Input reactor
ACL2-1R5-4
ACL2-2R2-4
ACL2-004-4
ACL2-5R5-4
ACL2-7R5-4
ACL2-011-4
ACL2-015-4
ACL2-018-4
ACL2-022-4
ACL2-030-4
ACL2-037-4
ACL2-045-4
ACL2-055-4
ACL2-075-4
ACL2-090-4
ACL2-110-4
-246-

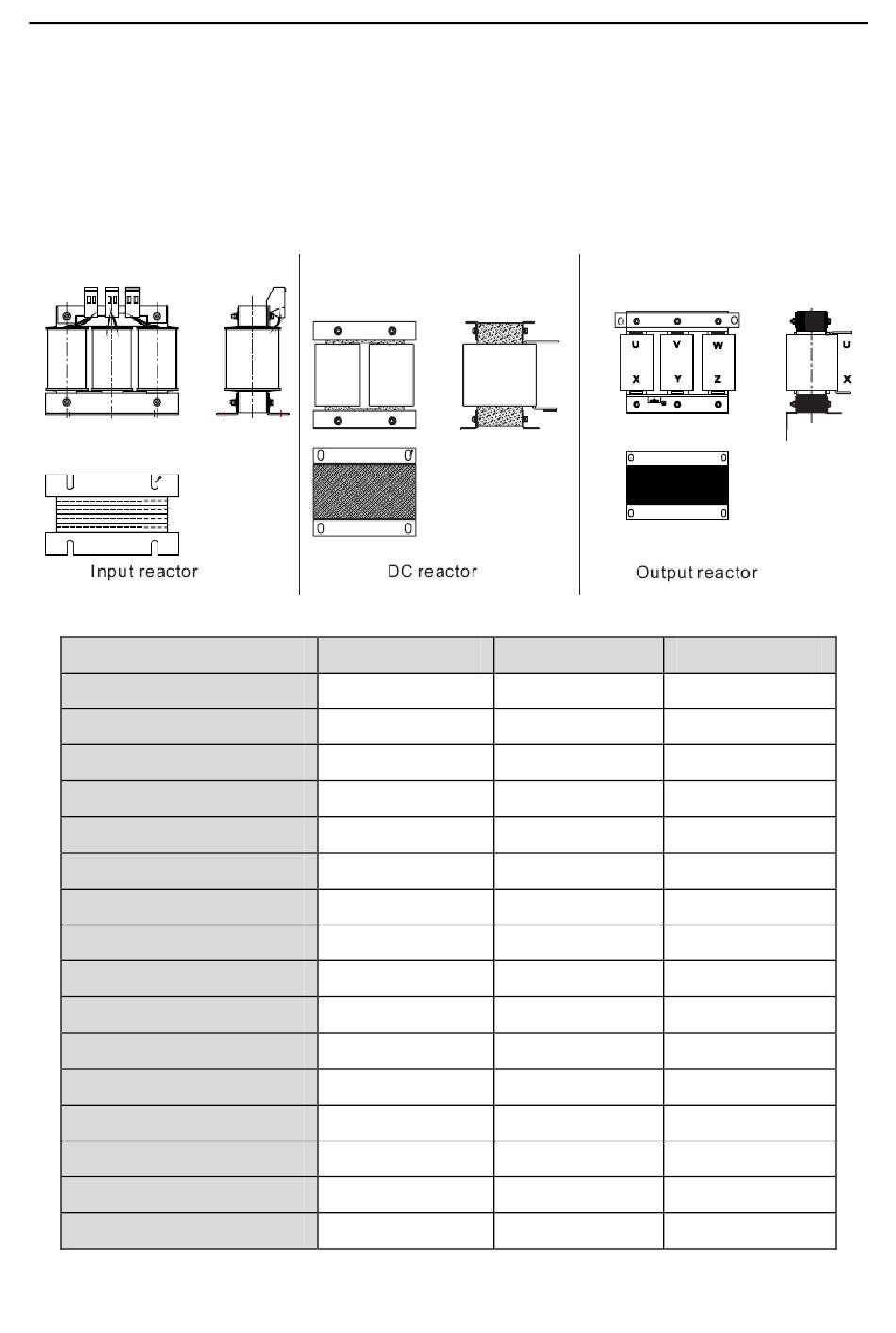

Peripherial options and parts
DC reactor Output reactor
/ OCL2-1R5-4
/ OCL2-2R2-4
/
/ OCL2-5R5-4
/ OCL2-7R5-4
/
/
/
/
/
/
/
/
DCL2-075-4
DCL2-090-4
DCL2-110-4
OCL2-004-4
OCL2-011-4
OCL2-015-4
OCL2-018-4
OCL2-022-4
OCL2-030-4
OCL2-037-4
OCL2-045-4
OCL2-055-4
OCL2-075-4
OCL2-090-4
OCL2-110-4
