6

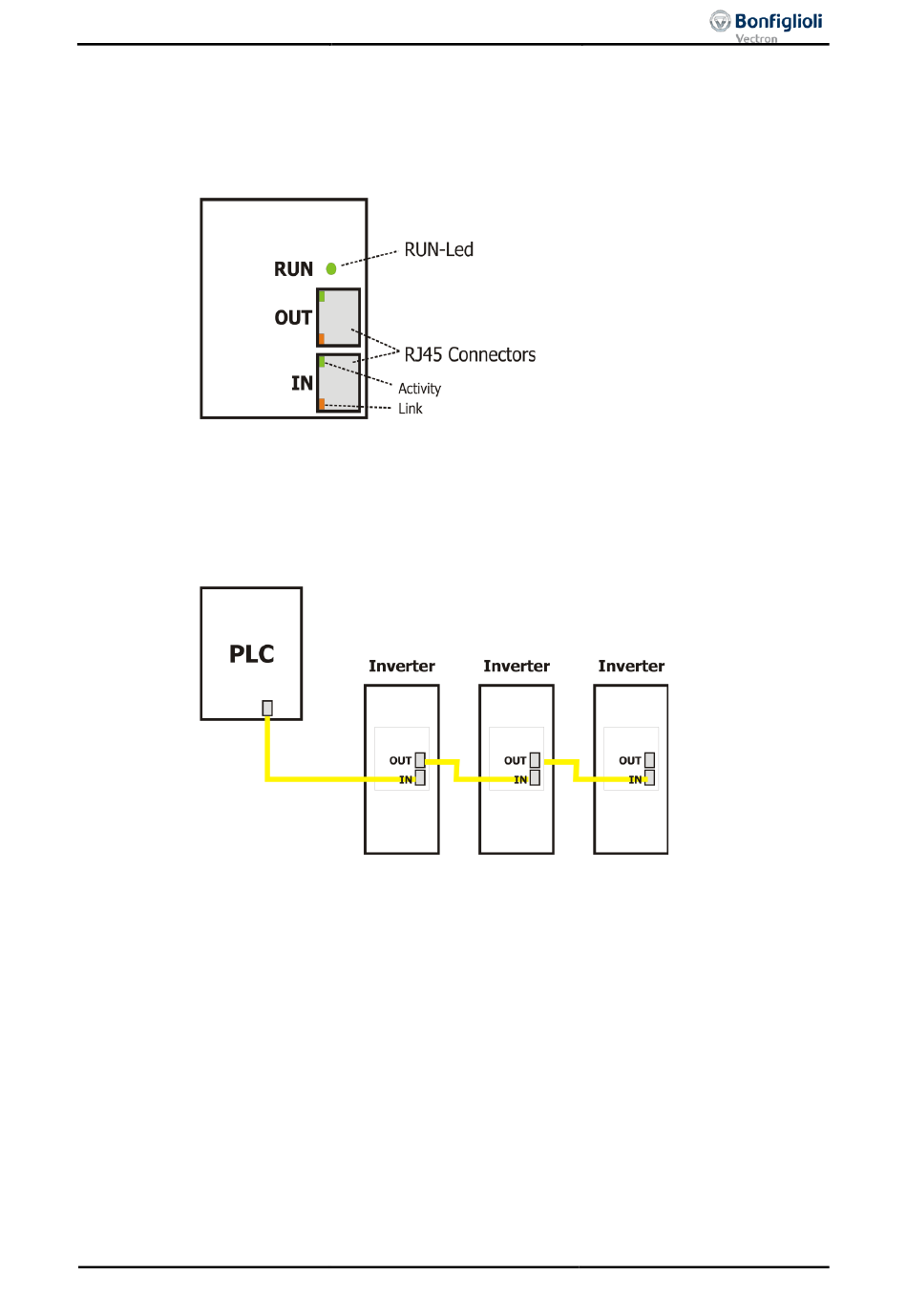

Connector assignment
The EtherCAT
Ethernet cables with RJ45 connectors.
Ethernet standard:
Cable type:
Connections from the POC are connected to "IN".
Connections to the next device are connected to "OUT".
07/13
®
module is connected to the PLC and/or other devices using standard
IEEE 802.3, 100Base-TX (fast Ethernet)
S/FTP (cable with braided shield, (ISO/IEC 11801 or EN
50173, Straight Through or Cross Over)
CM-EtherCAT
25
