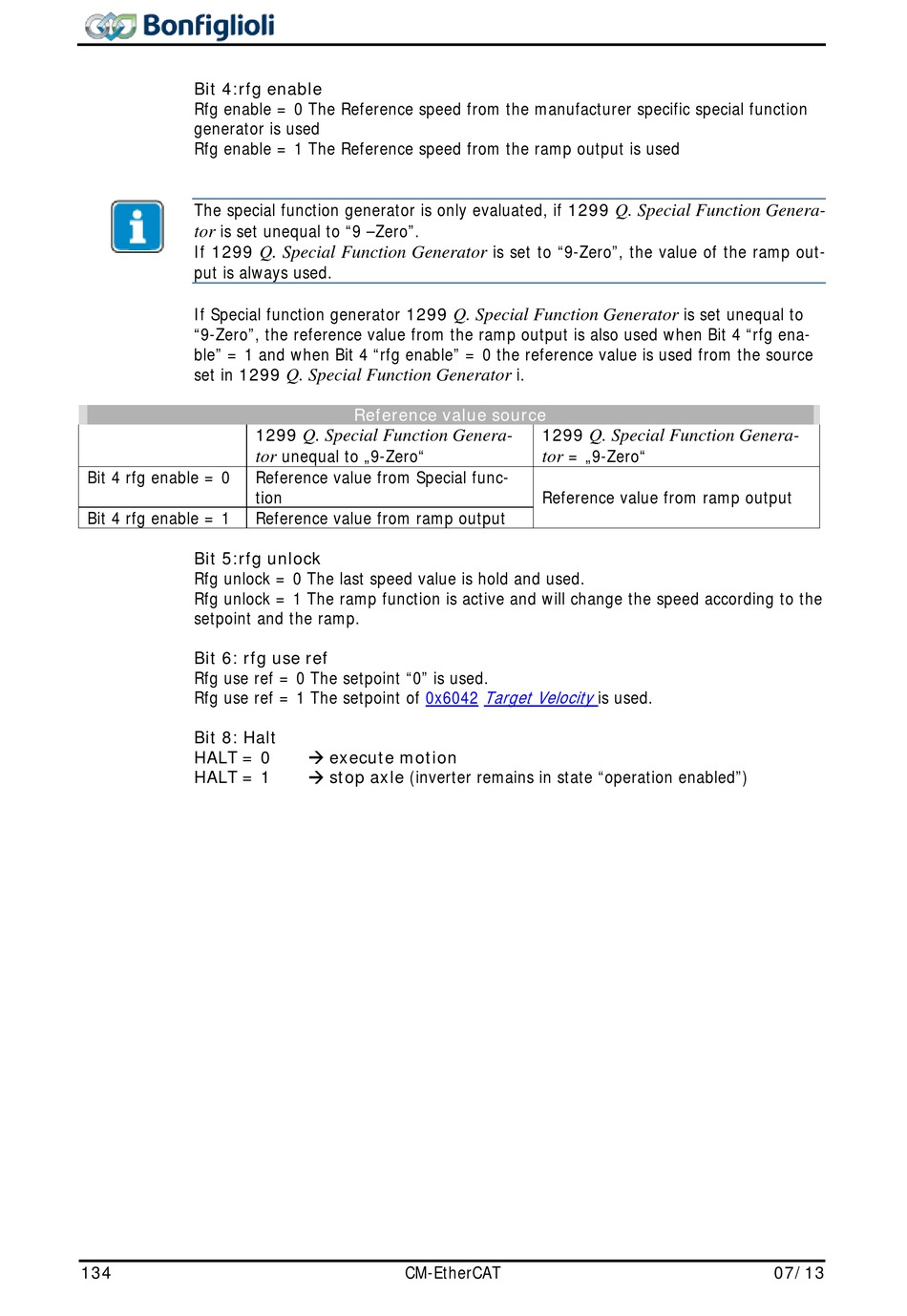

BONFIGLIOLI Vectron ACTIVE CUBE Series Manual page 134

Bit 4:rfg enable
Rfg enable = 0 The Reference speed from the manufacturer specific special function
generator is used
Rfg enable = 1 The Reference speed from the ramp output is used
The special function generator is only evaluated, if 1299
is set unequal to "9 –Zero".
tor
If 1299
put is always used.
If Special function generator 1299
"9-Zero", the reference value from the ramp output is also used when Bit 4 "rfg ena-
ble" = 1 and when Bit 4 "rfg enable" = 0 the reference value is used from the source
set in 1299
Bit 4 rfg enable = 0
Bit 4 rfg enable = 1
Bit 5:rfg unlock
Rfg unlock = 0 The last speed value is hold and used.
Rfg unlock = 1 The ramp function is active and will change the speed according to the
setpoint and the ramp.
Bit 6: rfg use ref
Rfg use ref = 0 The setpoint "0" is used.
Rfg use ref = 1 The setpoint of
Bit 8: Halt
HALT = 0
HALT = 1
134
Q. Special Function Generator
Q. Special Function Generator
Reference value source
1299
Q. Special Function Genera-
unequal to „9-Zero"
tor
Reference value from Special func-
tion
Reference value from ramp output
0x6042
 execute motion
 stop axle (inverter remains in state "operation enabled")
CM-EtherCAT
Q. Special Function Genera-
is set to "9-Zero", the value of the ramp out-
Q. Special Function Generator
i.
1299
Q. Special Function Genera-
= „9-Zero"
tor
Reference value from ramp output
Target Velocity
is used.
is set unequal to
