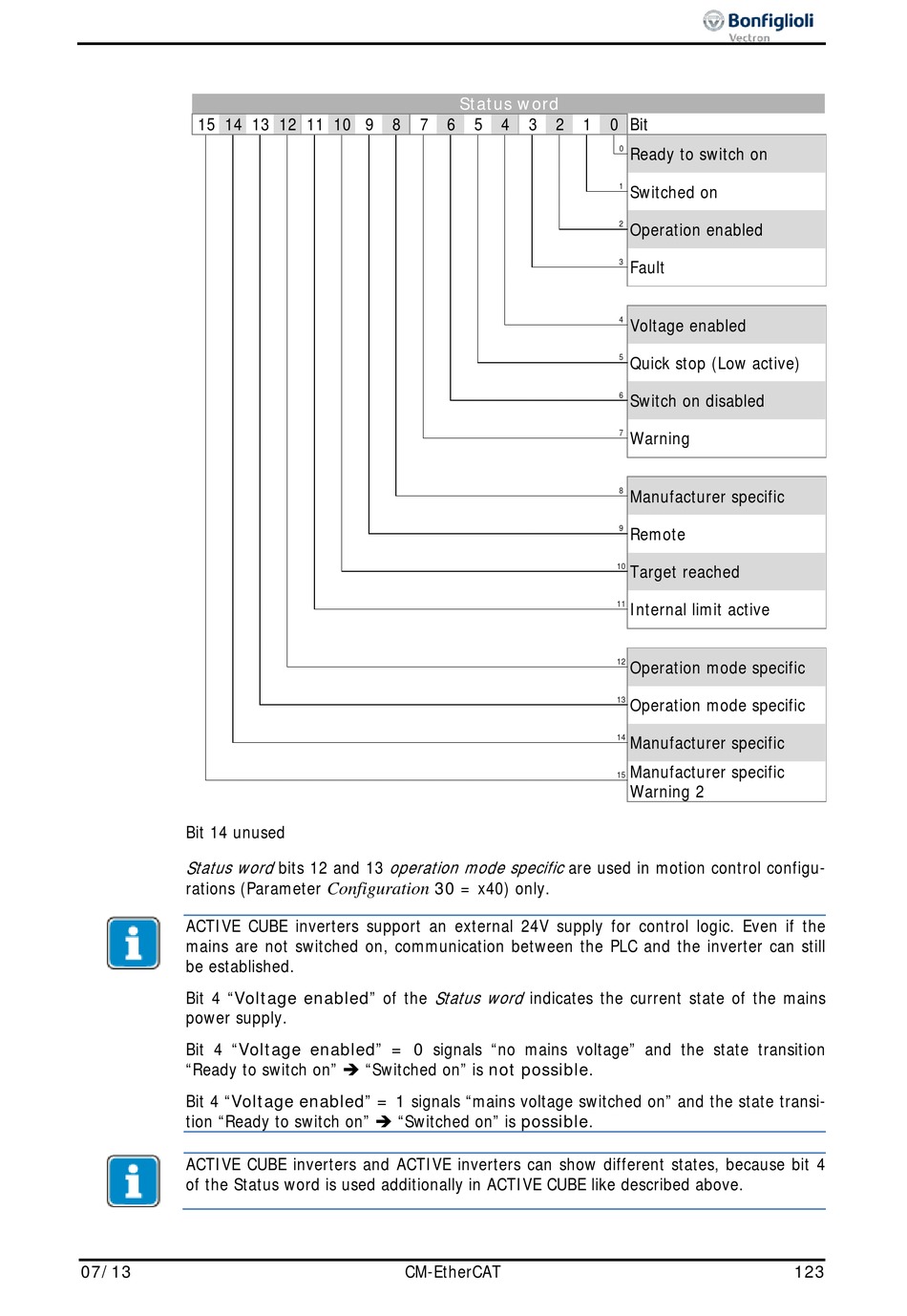

BONFIGLIOLI Vectron ACTIVE CUBE Series Manual page 123

15 14 13 12 11 10 9
Bit 14 unused
Status word
rations (Parameter
ACTIVE CUBE inverters support an external 24V supply for control logic. Even if the
mains are not switched on, communication between the PLC and the inverter can still
be established.
Bit 4 "Voltage enabled" of the
power supply.
Bit 4 "Voltage enabled" = 0 signals "no mains voltage" and the state transition
"Ready to switch on"  "Switched on" is not possible.
Bit 4 "Voltage enabled" = 1 signals "mains voltage switched on" and the state transi-
tion "Ready to switch on"  "Switched on" is possible.
ACTIVE CUBE inverters and ACTIVE inverters can show different states, because bit 4
of the Status word is used additionally in ACTIVE CUBE like described above.
07/13
8 7 6
operation mode specific
bits 12 and 13
30 = x40) only.
Configuration
Status word
CM-EtherCAT
Status word
5 4 3 2 1 0 Bit
0 Ready to switch on
1 Switched on
2 Operation enabled
3 Fault
4 Voltage enabled
5 Quick stop (Low active)
6 Switch on disabled
7 Warning
8 Manufacturer specific
9
Remote
10 Target reached
11 Internal limit active
12 Operation mode specific
13 Operation mode specific
14
Manufacturer specific
Manufacturer specific
15
Warning 2
are used in motion control configu-
indicates the current state of the mains
