Barrier Panel

1. Prepare the printer for maintenance (page 520).
2. Loosen (do not remove) the two #2 Phillips hold-down screws on the rear
of the printer. (See page 540, item 4.)
3. Remove the top cover assembly. (See page 527.)
4. Loosen the screws in the top corners of the barrier panel.
(See Figure 115.)

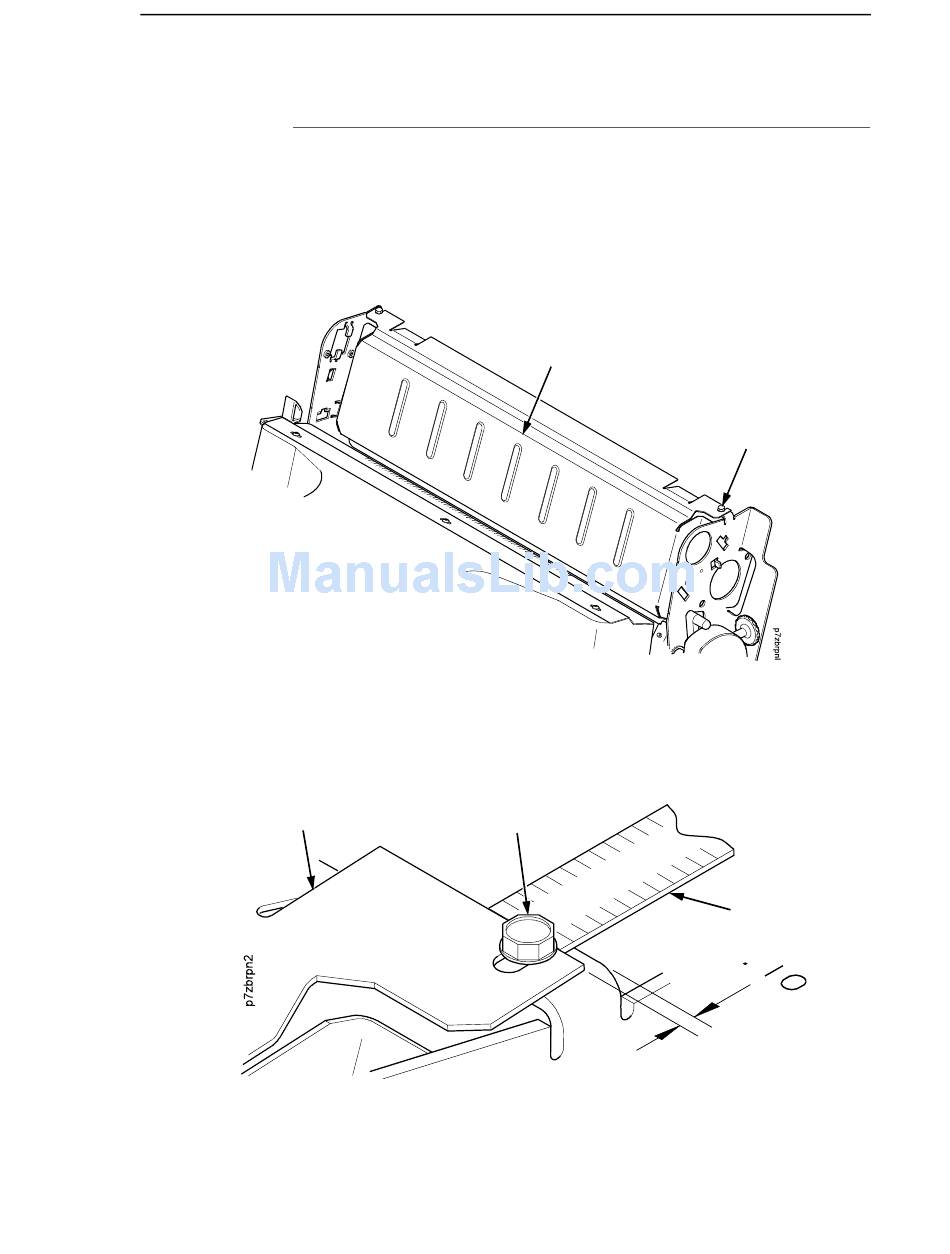

Figure 115. The Barrier Panel
5. Adjust the top portion of the barrier panel so that it protrudes forward,
towards the front of the printer 1/10 inch. Use a measurement scale as a
guide. (See Figure 116.)
6. Tighten the screw.

Barrier Panel

Figure 116. Using a Scale to Adjust the Barrier Panel
7. Install the top cover assembly. (See page 527.)
8. Return the printer to normal operation (page 520).
Barrier Panel
Screw (2)
Barrier Panel
Screw (2)
Measurement
Scale
