Hammer Bank Power - Printronix P7000 Series Maintenance Manual

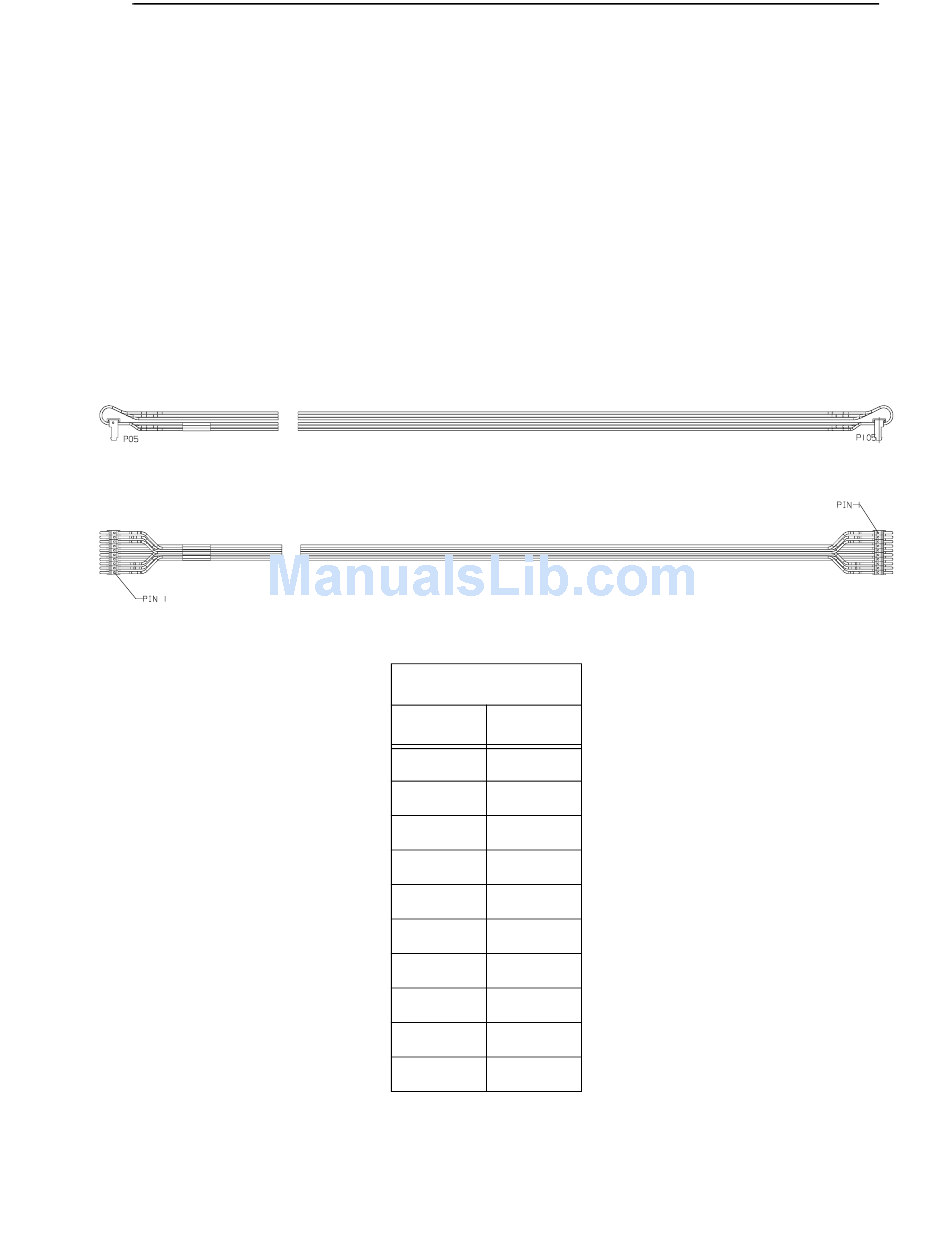

Cable Assy, Hammer Bank Power (P/N 164805-901)
To Shuttle
IMPORTANT:
Use this cable on any P7000 printer.
P7220 also uses P/N 173215-901,
shown on the next page.
Wire Table
P05 P105
2 1
1 2
4 3
3 4
6 5
5 6
8 7
7 8
10 9
9 10
To Controller Board
