Paper Guide Leaf, Front, Center, Outer; Paper Out Sensor, Adjustment; Paper Tension, Horizontal - Printronix P7000 Series Maintenance Manual

Appendix E
Adjustments And Tests

Paper Guide Leaf, Front, Center, Outer

1. Prepare the printer for maintenance (page 520).
2. Adjust the paper guides. (See page 511.)

Paper Out Sensor, Adjustment

1. Prepare the printer for maintenance (page 520).
2. Adjust the paper out sensor. (See page 513.)

Paper Tension, Horizontal

1. Prepare the printer for maintenance (page 520).
2. Unlock the right tractor.
3. Slide the right tractor to properly adjust the paper web tightness.
NOTE: The paper should be taut.
4. Lock the right tractor.

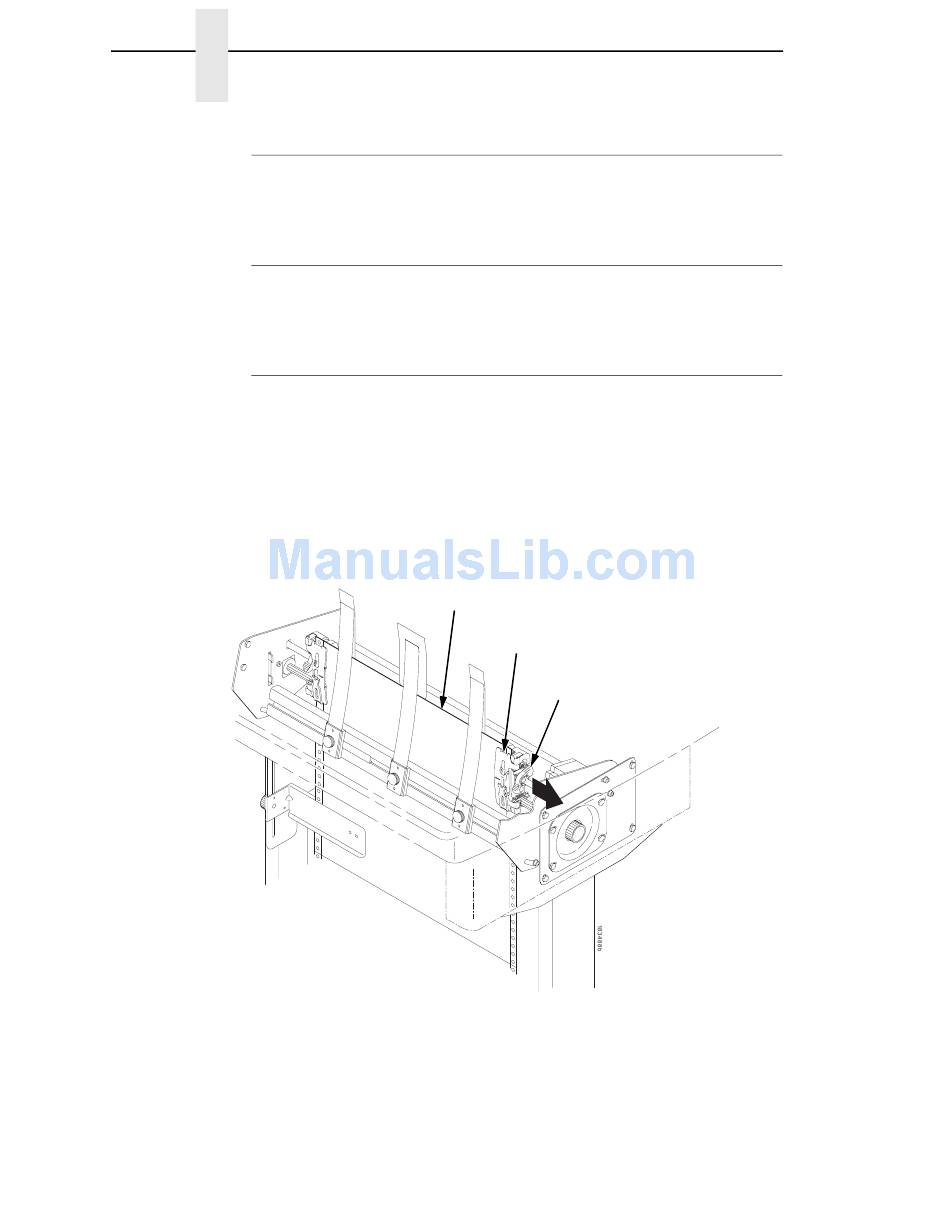

Figure 118. Adjusting the Horizontal Paper Tension
524
Paper
Tractor
Door (2)
Tractor
Lock (2)
