Appendix D

Replacing The Timing Belts

Replacing The Timing Belts
1. Remove the stacker assembly from the printer (page 468).
2. Raise the elevator assembly to its highest position and secure it to the
vertical rails using tie wraps or string. Do not over-tighten the tie wraps or
string; tighten them just enough to hold the elevator up. (Figure 93, page
486.)
3. If you are removing the left timing belt, remove the screw and washer
from the pulley at the bottom of the left vertical rail, and remove the pulley.
(Figure 95.) Go to step 6.
4. If you are removing the right timing belt, remove the two metric Allen
screws that secure the timing belt motor to the right vertical rail.
(Figure 95.) Go to step 5.
Left Vertical
Washer
Screw
5. Loosen the two setscrews on the motor pulley and remove the pulley.
Unplug the motor cable, if necessary. (Figure 96.) Go to step 6.
488
Metric Allen Screw
and Washer (2)
Rail
Pulley

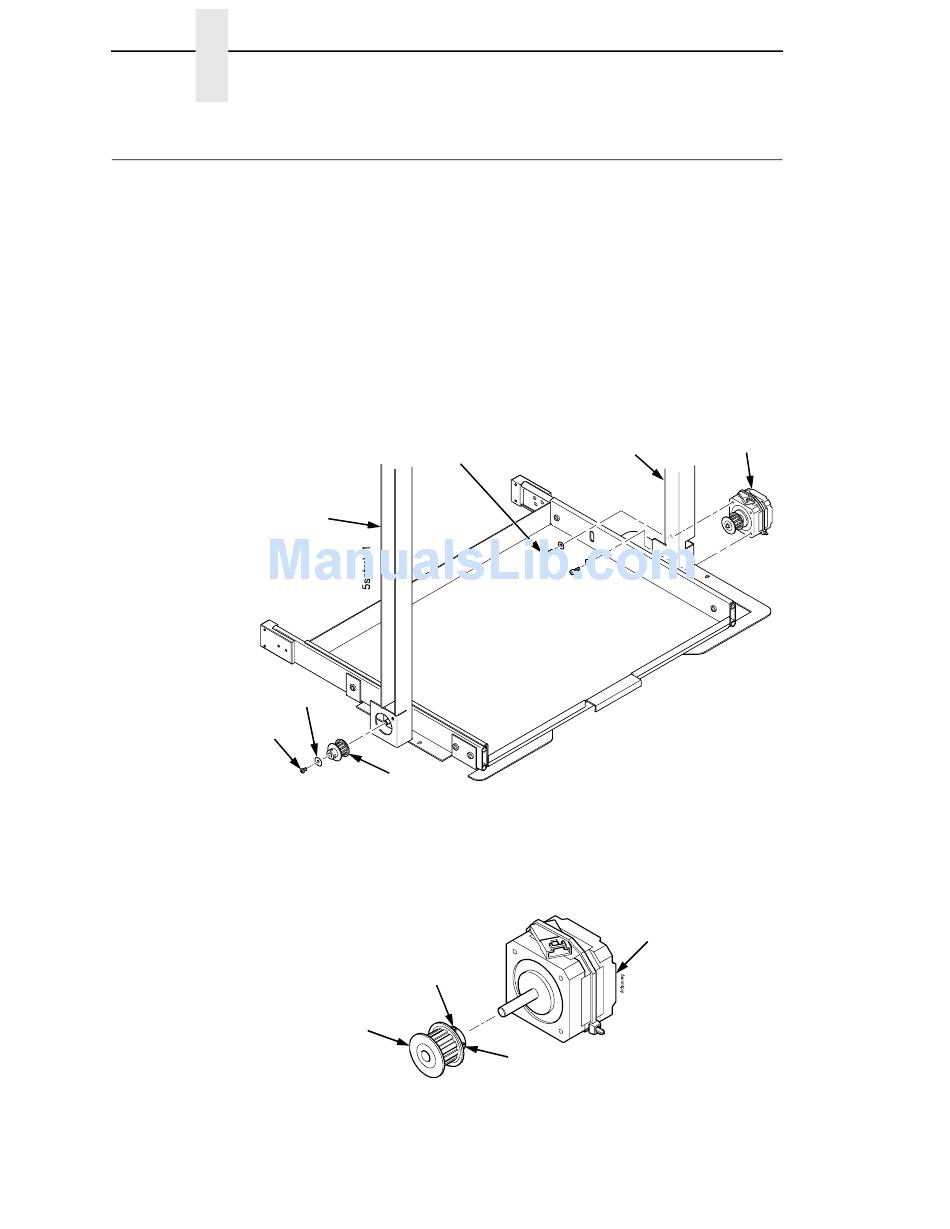

Figure 95. Removing the Timing Belt Pulley and Motor
Setscrew
Pulley
Figure 96. Removing the Timing Belt Motor Pulley
Right Vertical Rail
Timing Belt Motor
Setscrew
Timing Belt
Motor
