Remove Paper - Printronix P7000 Series Maintenance Manual

Line matrix printers

Hide thumbs Also See for P7000 Series:

Table of Contents

Guide Leaf (3)

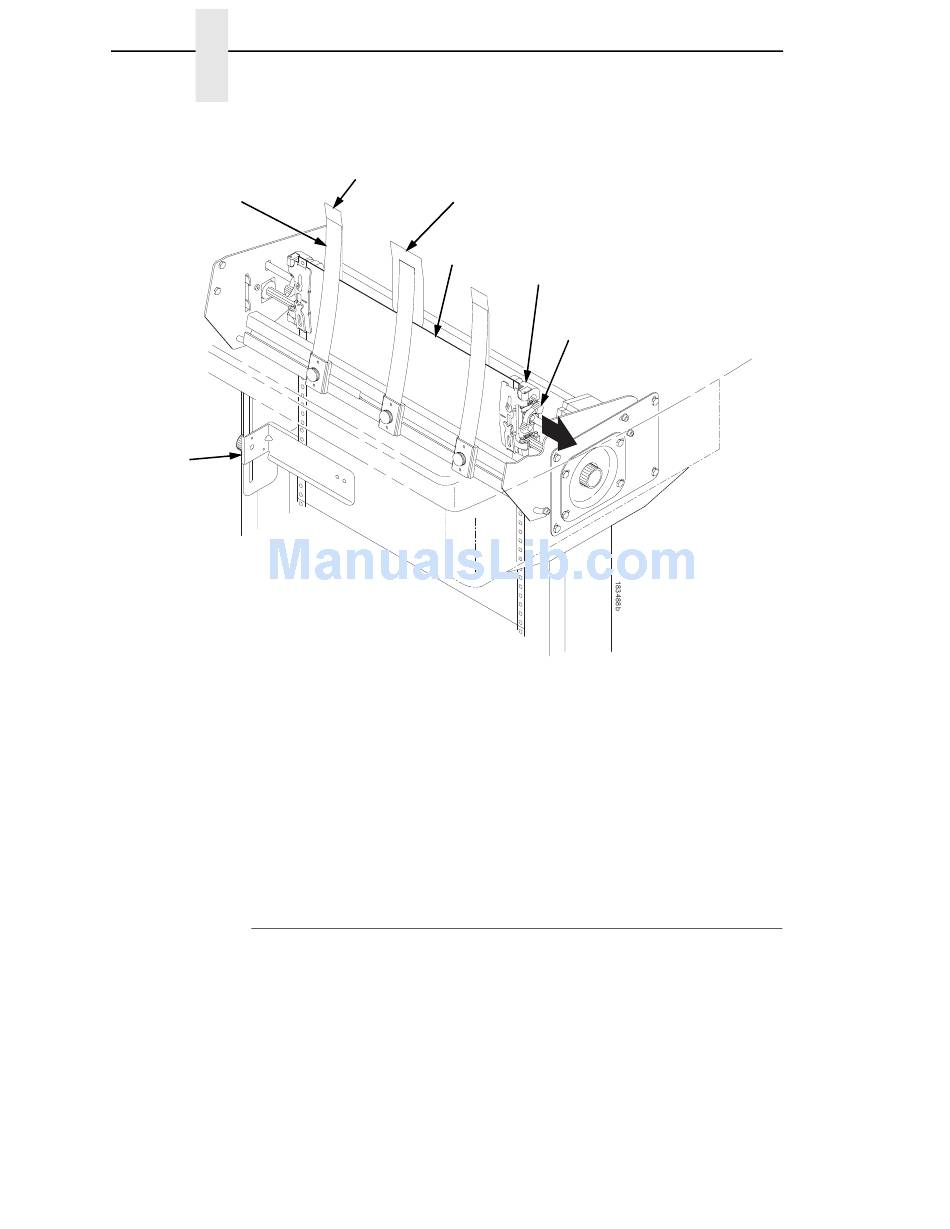

Figure 109. Adjusting the Horizontal Paper Tension

3. Unlock and open the tractor doors and slide the paper from below,

through the black paper out sensor slot on the left side, and up between

all front and rear paper guide leaves. (See Figure 109.)

4. Load the paper on the left tractor sprockets and close the tractor door.

5. Load the paper onto the right tractor sprockets and close the tractor door.

6. Adjust the paper web tightness by sliding the right tractor to remove slack

or to adjust for various paper widths. (See Figure 109.)

7. Lock the tractors in position by pressing down on the tractor locks.

Remove Paper

1. Open the left and right tractor doors.

2. Pull the paper upward through the top of the printer.

NOTE: DO NOT pull the paper downwards from the bottom. This could cause

Guide Leaf (2)

Center Paper

the paper guide leaves to bend.
