Printronix P7000 Series Maintenance Manual page 342

Line matrix printers
Hide thumbs Also See for P7000 Series:
Table of Contents

Advertisement

Chapter
6
Organization Of This Chapter
Two places:
Exploded to show
assembly. Do not
remove the
clamps and
screws.
To J02
(Shuttle
Motor)
To the Terminator
Board on the
Shuttle Frame

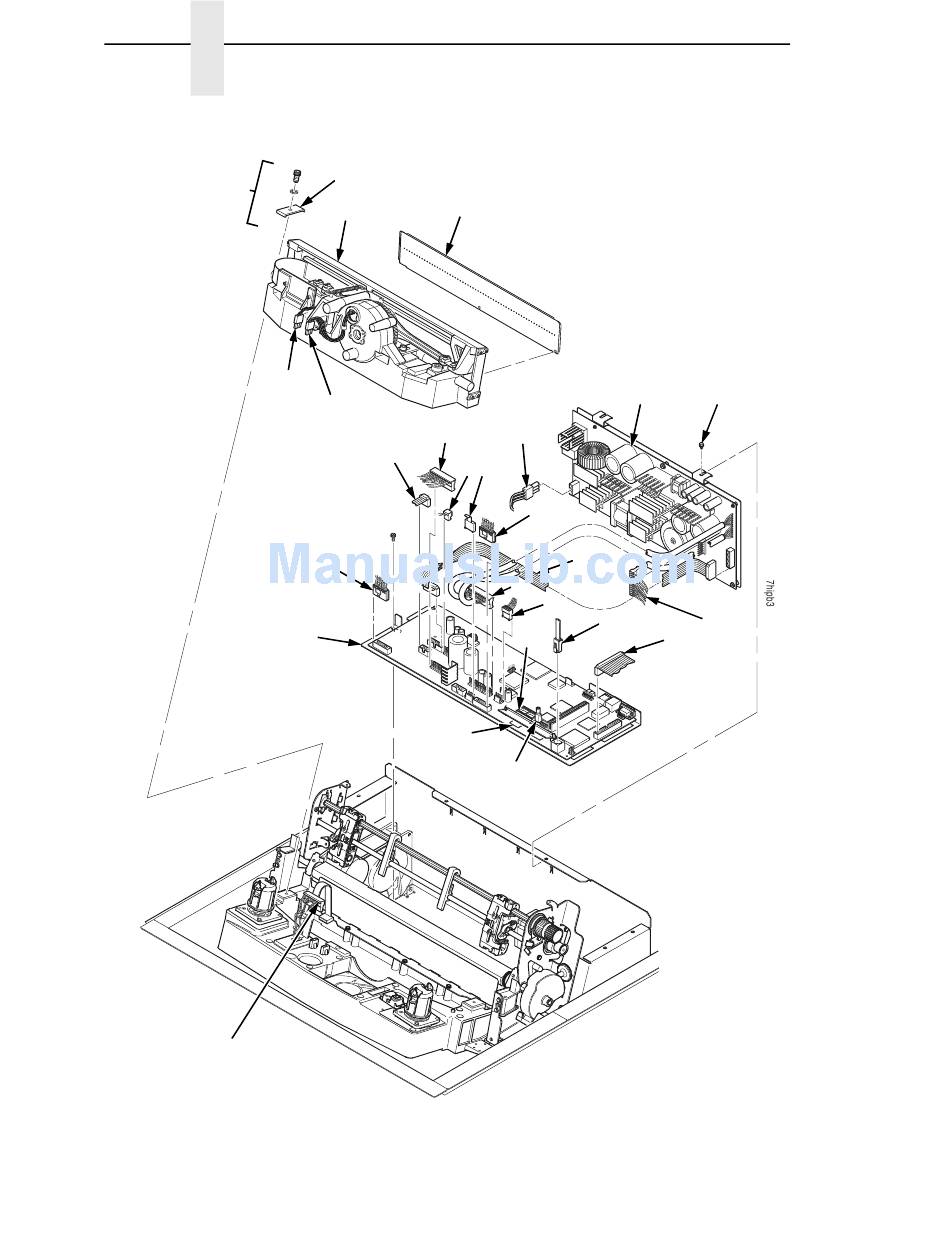

Figure 47. Print Mechanism and Circuit Boards
342
14
1
2
To J03
(MPU)
10
8
19
9
7
6
16
3
5
11
20
4
18
13
12
21
17
15
10
