Appendix D
Installing The Power Stacker
NOTE: It may be easier to wear gloves for the next step.
14. Position the stacker assembly slightly to the right in order to clear the air
exhaust duct, insert the vertical rails inside and under the upper frame
cross-member, then slowly swing the base of the stacker assembly into
the cabinet. (Figure 85a.)
15. Work the stacker base rearward and engage the upper brackets of the
vertical rails under the upper frame cross-member. (Figure 85b.)
16. Align the holes in the vertical rail brackets with the holes in the upper
frame cross-member. (Figure 85c and Figure 86.)
a
Vertical Rail
478
Elevator
Assembly
Stacker Base
c

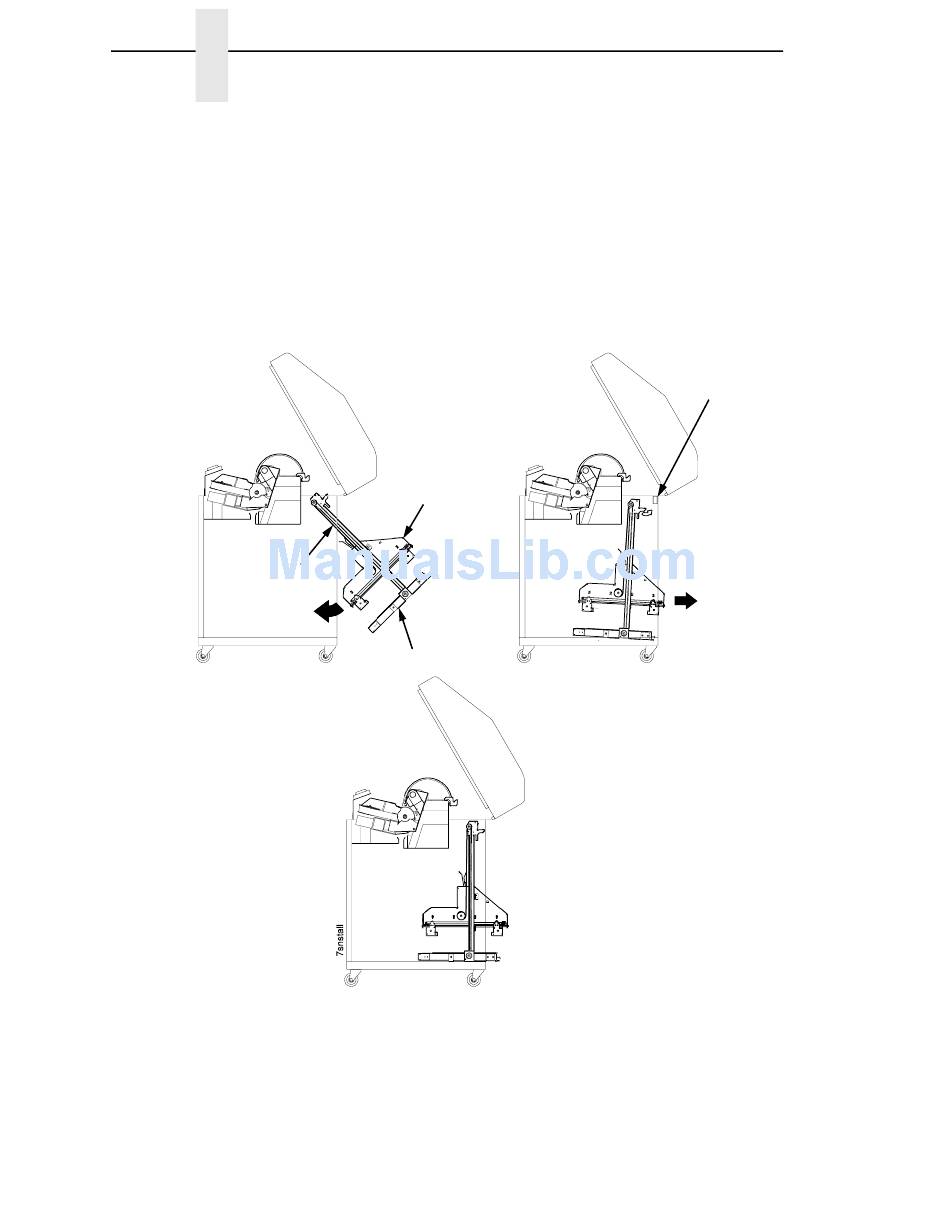

Figure 85. Stacker Installation
Upper Frame
Cross-Member
b
