12. Position the elevator assembly at the bottom of the vertical rails.
(Figure 84.)
13. Connect the elevator I/O cable to the elevator assembly and install the
two 4-40 x 1/4 inch screws, as shown in Figure 84.
CAUTION
The paper stacker assembly mounts to the rear upper frame cross-
member and the cabinet floor. It is a snug fit. During installation, grasp
the stacker by the vertical rails and take care to avoid scratching painted
surfaces or damaging the stacker.
Vertical Rail

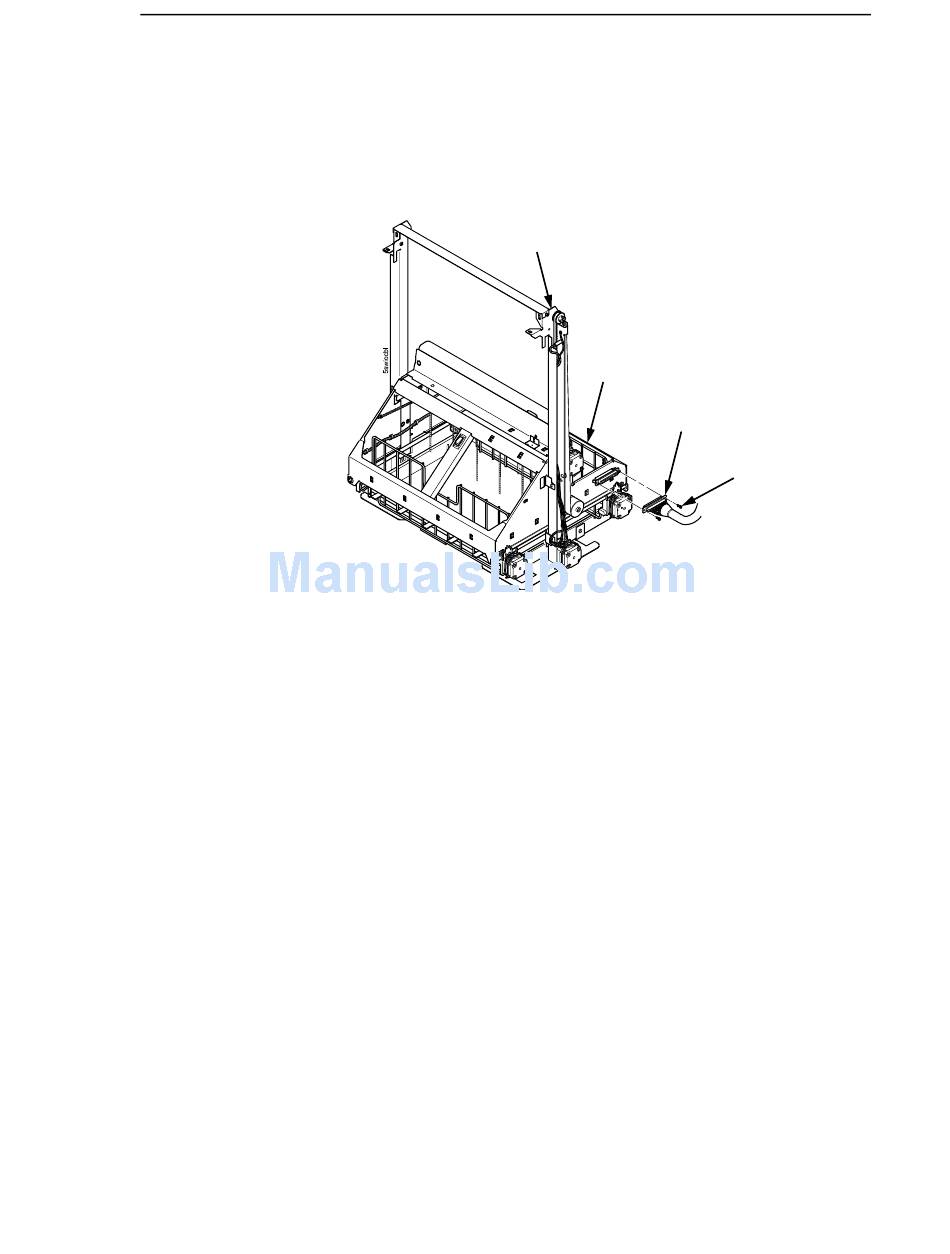

Figure 84. The Elevator I/O Cable
Stacker Motor Check
Elevator Assembly
Stacker I/O
Cable
Screw, 4-40x1/4,
Pan Head (2)
