NOTE: It may be easier to wear gloves for the next step.
15. Slide the stacker assembly slightly to the right to clear the air exhaust
duct. Tilt the vertical rails toward the front of the printer until they clear the
upper frame cross-member. Grasping the stacker assembly by the
vertical rails, lift and slide it to the rear and angle it out of the cabinet, as
shown in Figure 80.
Vertical Rail

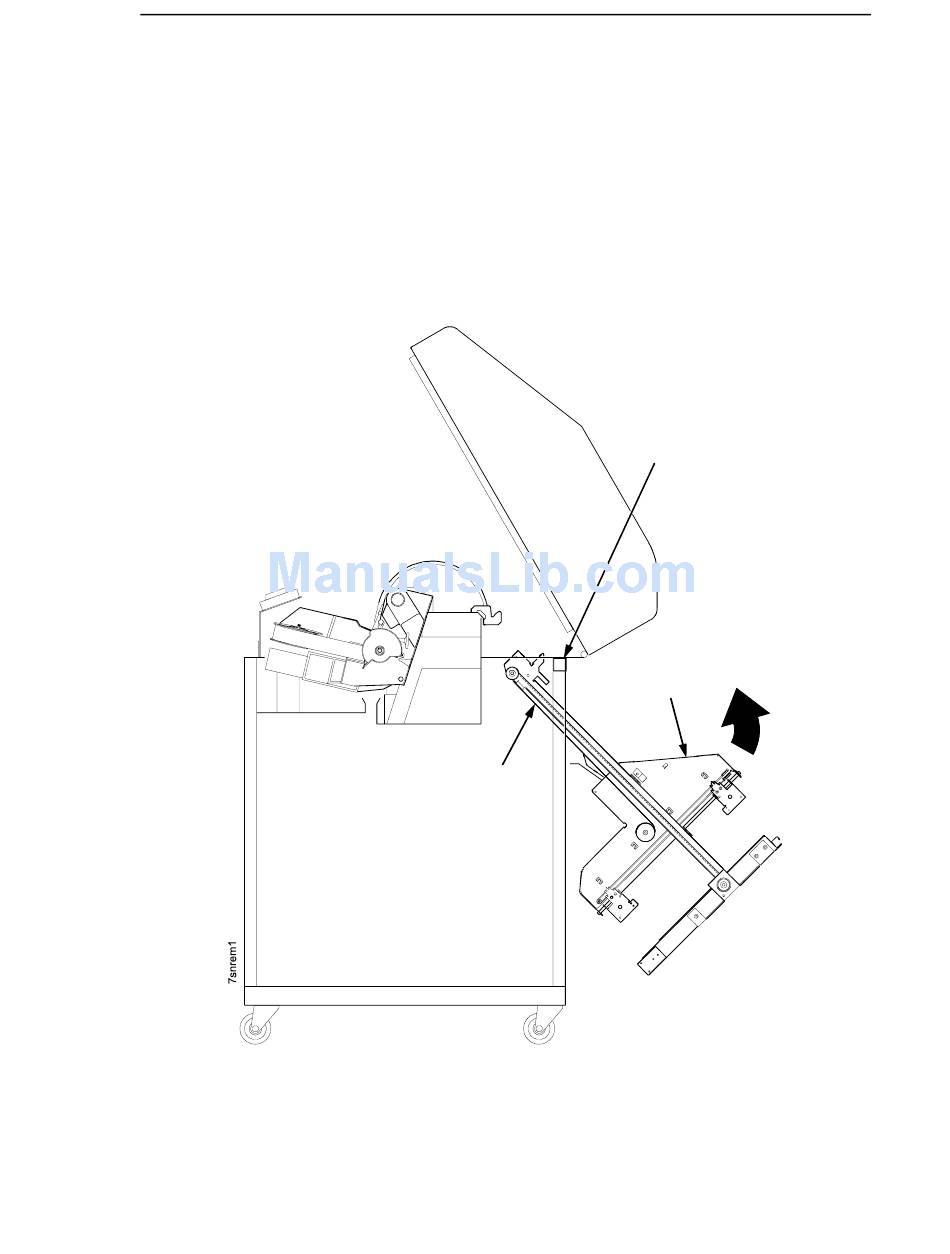

Figure 80. Removing the Stacker Assembly
Stacker Motor Check
Upper Frame
Cross-Member
Elevator
Assembly
473
