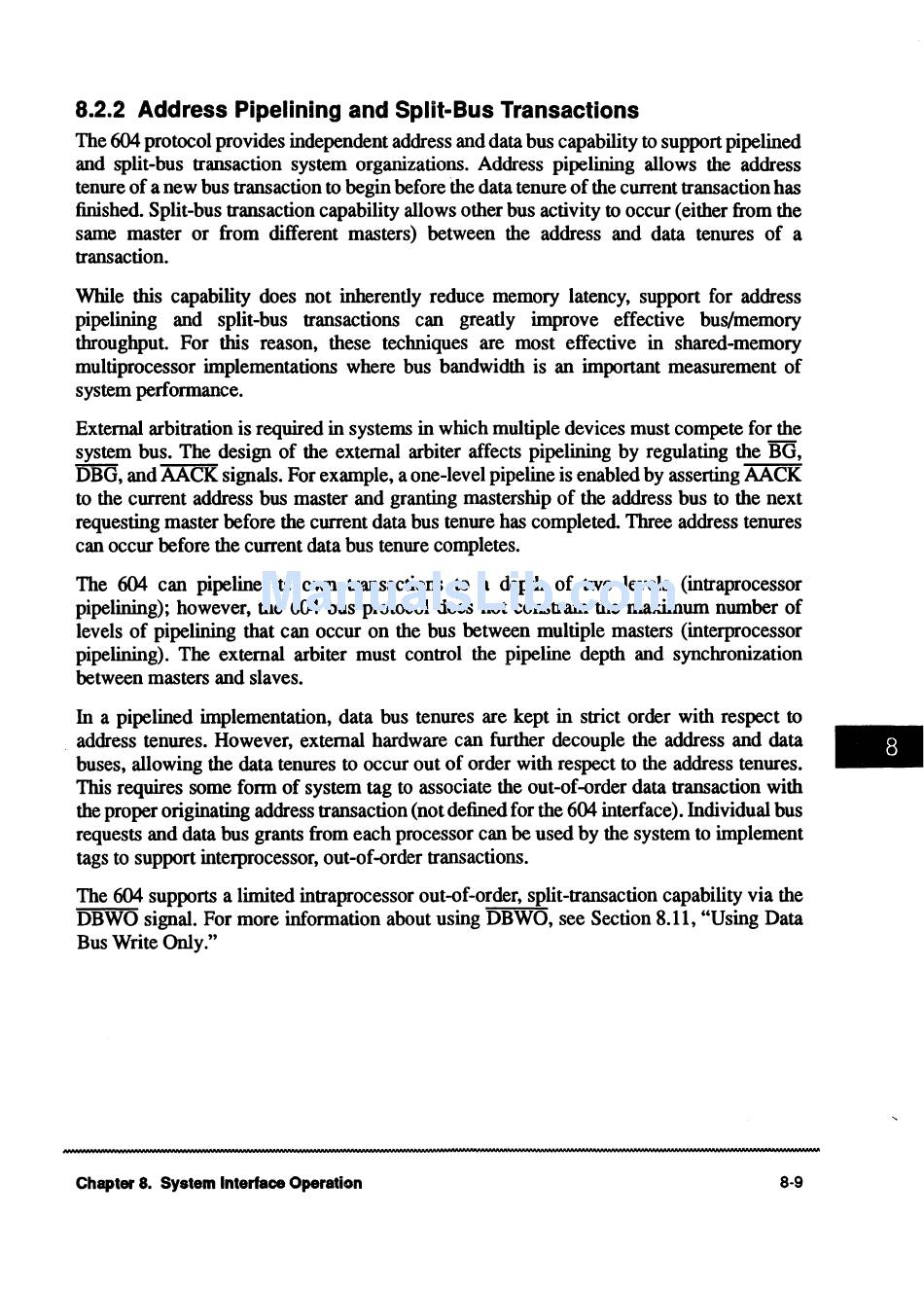

8.2.2 Address Pipelining and Split-Bus Transactions
The 604 protocol provides independent address and data bus capability to support pipelined
and split-bus transaction system organizations. Address pipelining allows the address
tenure of a new bus transaction to begin before the data tenure of the current transaction has
finished. Split-bus transaction capability allows other bus activity
to
occur (either from the
same master or from different masters) between the address and data tenures of a
transaction.
While this capability does not inherently reduce memory latency, support for address
pipelining and split-bus transactions can greatly improve effective bus/memory
throughput. For this reason, these techniques are most effective in shared-memory
multiprocessor implementations where bus bandwidth is an important measurement of
system performance.
External arbitration is required in systems in which multiple devices must compete for the
system bus. The design of the external arbiter affects pipelining by regulating the BG,
DBG, and AACK signals. For example, a one-level pipeline is enabled by asserting AACK
to the current address bus master and granting mastership of the address bus
to
the next
requesting master before the current data bus tenure has completed. Three address tenures
can occur before the current data bus tenure completes.
The 604 can pipeline its own transactions to a depth of two levels (intraprocessor
pipelining); however, the 604 bus protocol does not constrain the maximum number of
levels of pipelining that can occur on the bus between multiple masters (interprocessor
pipelining). The external arbiter must control the pipeline depth and synchronization
between masters and slaves.
In a pipelined implementation, data bus tenures are kept in strict order with respect to
address tenures. However, external hardware can further decouple the address and data
buses, allowing the data tenures to occur out of order with respect to the address tenures.
This requires some form of system tag to associate the out-of-order data transaction with
the proper originating address transaction (not defined for the 604 interface). Individual bus
requests and data bus grants from each processor can be used by the system to implement
tags to support interprocessor, out-of-order transactions.
The 604 supports a limited intraprocessor out-of-order, split-transaction capability via the
DBWO signal. For more information about using DBWO, see Section 8.11, "Using Data
Bus Write Only."
Chapter 8. System Interface Operation 8-9
