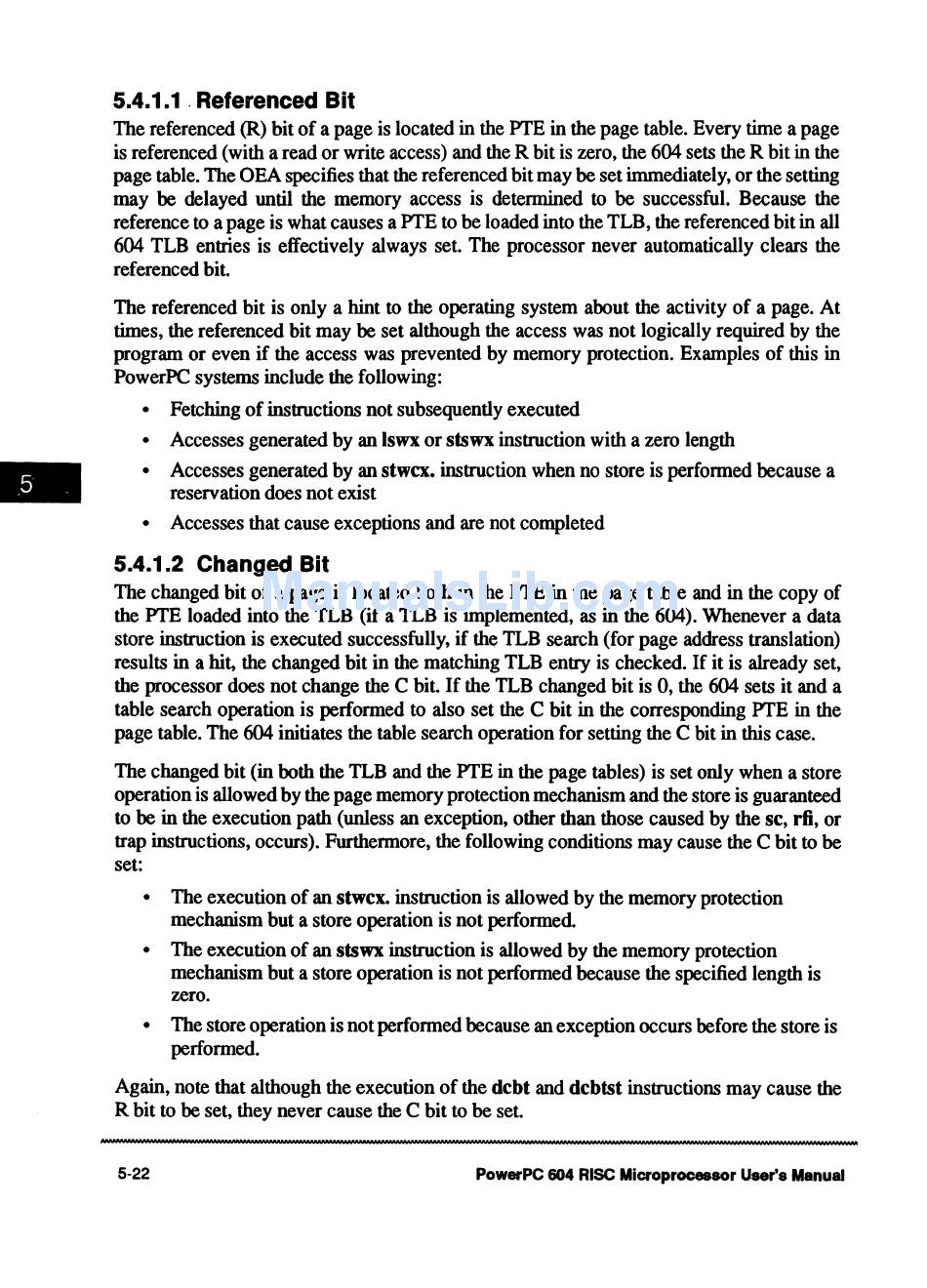

5.4.1.1 . Referenced Bit
The referenced (R) bit of a page is located in the PTE in the page table. Every time a page
is referenced (with a read or write access) and the R bit is zero, the 604 sets the R bit in the
page table. The OEA specifies that the referenced bit may be set immediately, or the setting
may be delayed until the memory access is determined to
be
successful. Because the
reference to a page is what causes a PTE to be loaded into the TLB, the referenced bit in all
604 TLB entries is effectively always set. The processor never automatically clears the
referenced bit.
The referenced bit is only a hint to the operating system about the activity of a page. At
times, the referenced bit may be set although the access was not logically required by the
program or even if the access was prevented by memory protection. Examples of this in
PowerPC systems include the following:
• Fetching of instructions not subsequently executed
• Accesses generated by an lswx or stswx instruction with a zero length
• Accesses generated by an stwcx. instruction when no store is performed because a
reservation does not exist
• Accesses that cause exceptions and are not completed
5.4.1.2 Changed Bit
The changed bit of a page is located both in the PTE in the page table and in the copy of
the PTE loaded into the TLB (if a TLB is implemented, as in the 604). Whenever a data
store instruction is executed successfully, if the TLB search (for page address translation)
results in a hit, the changed bit in the matching TLB entry is checked. If it is already set,
the processor does not change the C bit. If the TLB changed bit is 0, the 604 sets it and a
table search operation is performed to also set the C bit in the corresponding PTE in the
page table. The 604 initiates the table search operation for setting the C bit in this case.
The changed bit (in both the TLB and the PTE in the page tables) is set only when a store
operation is allowed by the page memory protection mechanism and the store is guaranteed
to be in the execution path (unless an exception, other than those caused by the sc, rfi, or
trap instructions, occurs). Furthermore, the following conditions may cause the C bit to be
set:
• The execution of an stwcx. instruction is allowed by the memory protection
mechanism but a store operation is not performed.
• The execution of an stswx instruction is allowed by the memory protection
mechanism but a store operation is not performed because the specified length is
zero.
• The store operation is not performed because an exception occurs before the store is
performed.
Again, note that although the execution of the debt and dcbtst instructions may cause the
R bit to be set, they never cause the C bit to be set.
