Honda Gold Wing GL1200D Shop Manual page 99

ENGINE REMOVAL/INSTALLATION

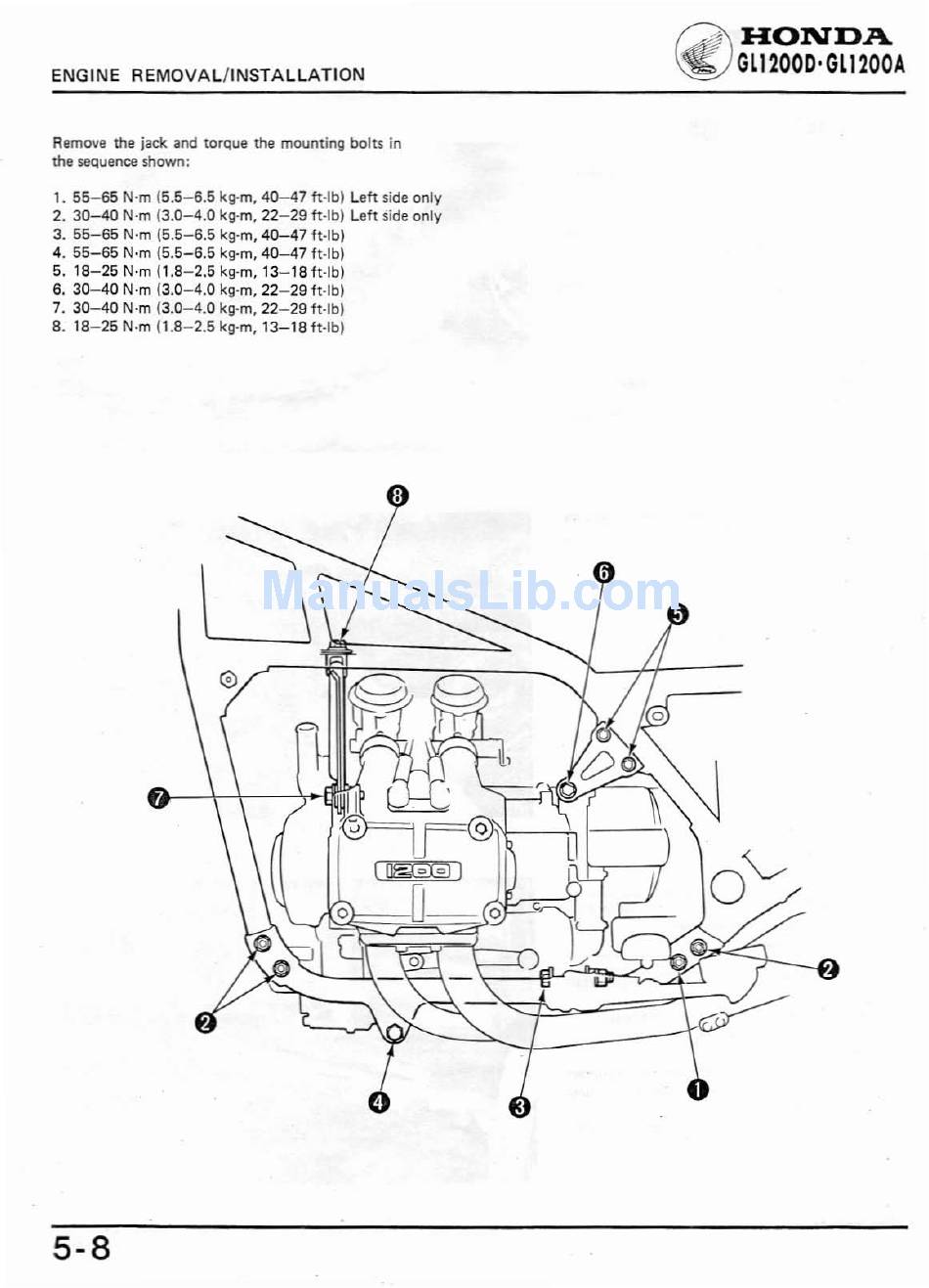

Remove the jack and torQue the mounting bolts in
the sequence shown:
1. 55-65 N'm (5.5-6.5
kg-m,
40-47
ft-Ib)
Left side only
2. 30-40 N·m (3.0-4.0 kg·m. 22-29 ft-Ibl Left side only
3. 55-65 N·m (5.5-6.5 kg-m, 40-47 ft-Ib)
4. 55-65 N·m (5.S-6.S kg-m, 40-47 ft-Ib)
5. 18-25 N·m (1.8-2.5 kg-m, 13-18 ft·lb)
6. 30-40 N·m (3.0-4.0 kg-m, 22-29 ft·lb)
7. 30-40 N·m (3.0-4.0 kg·m, 22-29 ft·lbl
8. 18-25 N·m (1.8-2.5 kg·m, 13-18ft-lb)
5-8
L
Cif\HONDA
~GL1200D'GLI200A
