FUEL SYSTEM

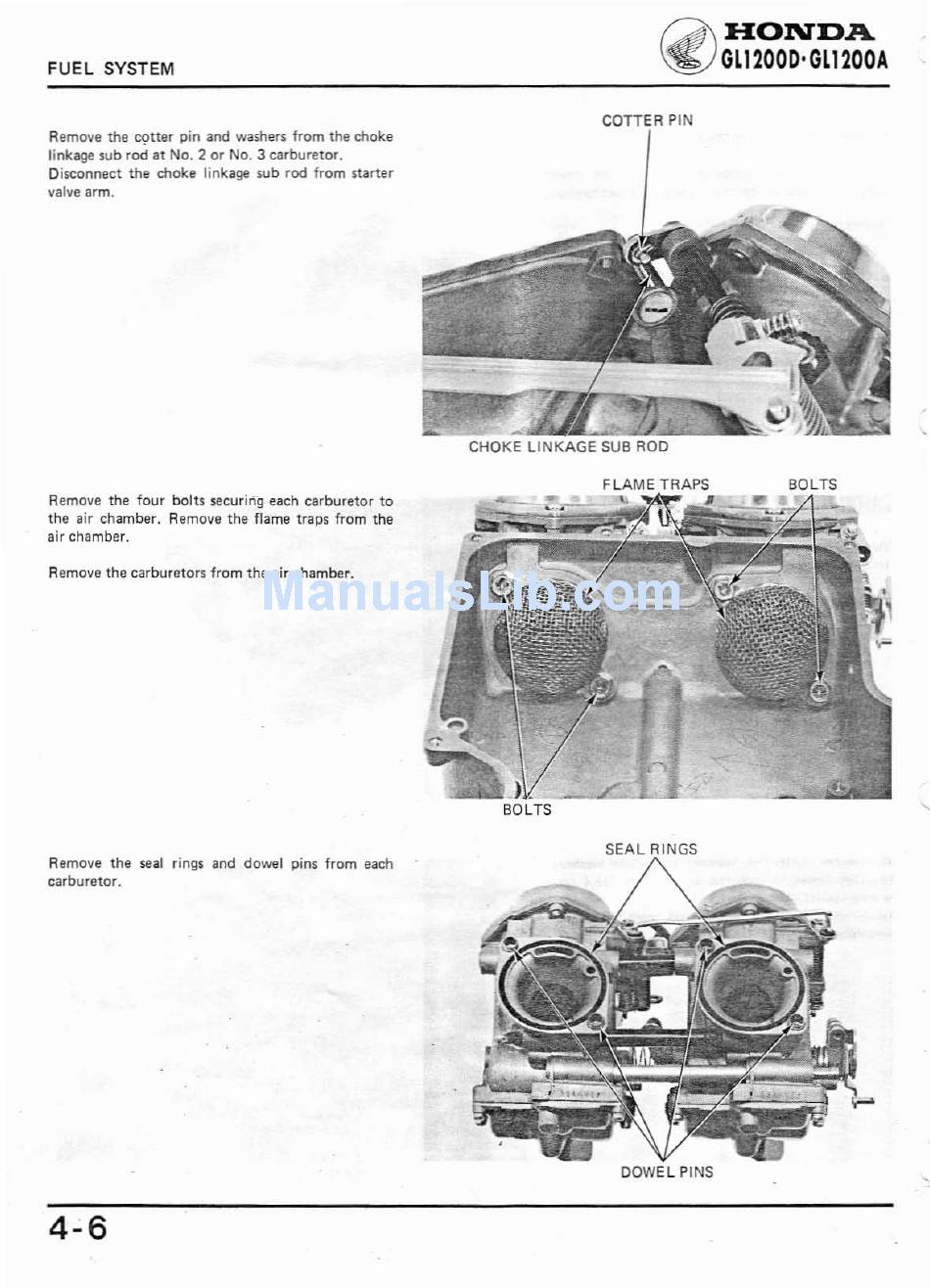

Remove the
cl;mer
pin and washers from the choke
linkage sub rod at NO.2 or NO.3 carburetor.
Disconnect the choke linkage sub rod from starter
valve arm.
Remove the four bolts securing each carburetor to
the air chamber. Remove the flame traps from the
air chamber.
Remove the carburetors from the air chamber.
Remove the seal rings and dowel pins from each
carburetor.
4-6
~HONDA
~
GL12000' GL1200A
COTTER PIN
CHOKE LINKAGE SUB ROD
BOLTS
SEAL RINGS
DOWEL PINS
