Side Stand; Suspension - Honda Gold Wing GL1200D Shop Manual

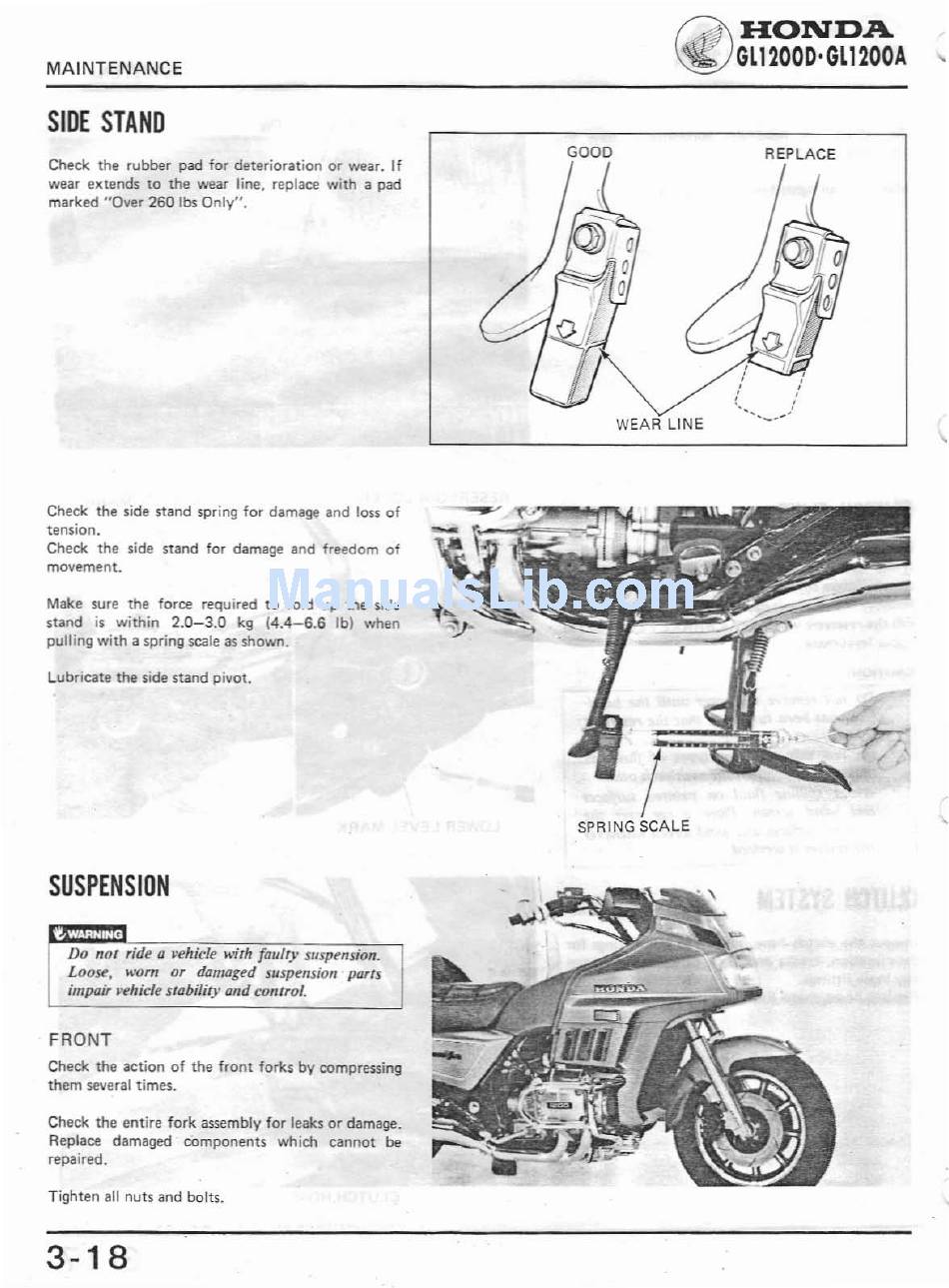

MAINTENANCE
SIDE STAND
Check the rubber pad for deterioration or wear.
If
wear extends to the wear line, replace with a pad
marked "Over 260 Ibs Only".
GOOD
r.:::i:J\
HONDA
~
GL1200D'GL1200A
REPLACE
WEAR LINE
Check the side stand spring for damage and loss of
tension.
Check the side stand for damage and freedom of
movement.
Make sure the force required to fold up the side
stand is within 2.0-3.0 kg (4.4-6.6 Ib) when
pulling with a spring scale as shown.
Lubricate the side stand pivot.
SUSPENSION
.,
Do
nOl
ride
0 ~'ehicle
with faulty suspension.
Loose. worn or damaged suspension parts
impair i:ehicle stobility and control.
FRONT
Check the action of the front forks by compressing
them several times.
Check the entire fork assembly for leaks or damage.
Replace damaged components which cannot be
repaired.
Tighten all nuts and bolts.
3-18
SPRING SCALE
