Serial Ports

The Octane2 workstation serial ports can operate in one of several modes:
• RS-232 electrical levels with a standard PC pinout.
• Macintosh-style electrical levels and a Macintosh-compatible pinout (This mode
requires an additional adapter cable. See "Serial Port Adapter Cables" on page 235).
• ANSI/SMPTE 207M electrical levels and pinout (This mode requires an additional
adapter cable. See "Serial Port Adapter Cables" on page 235).

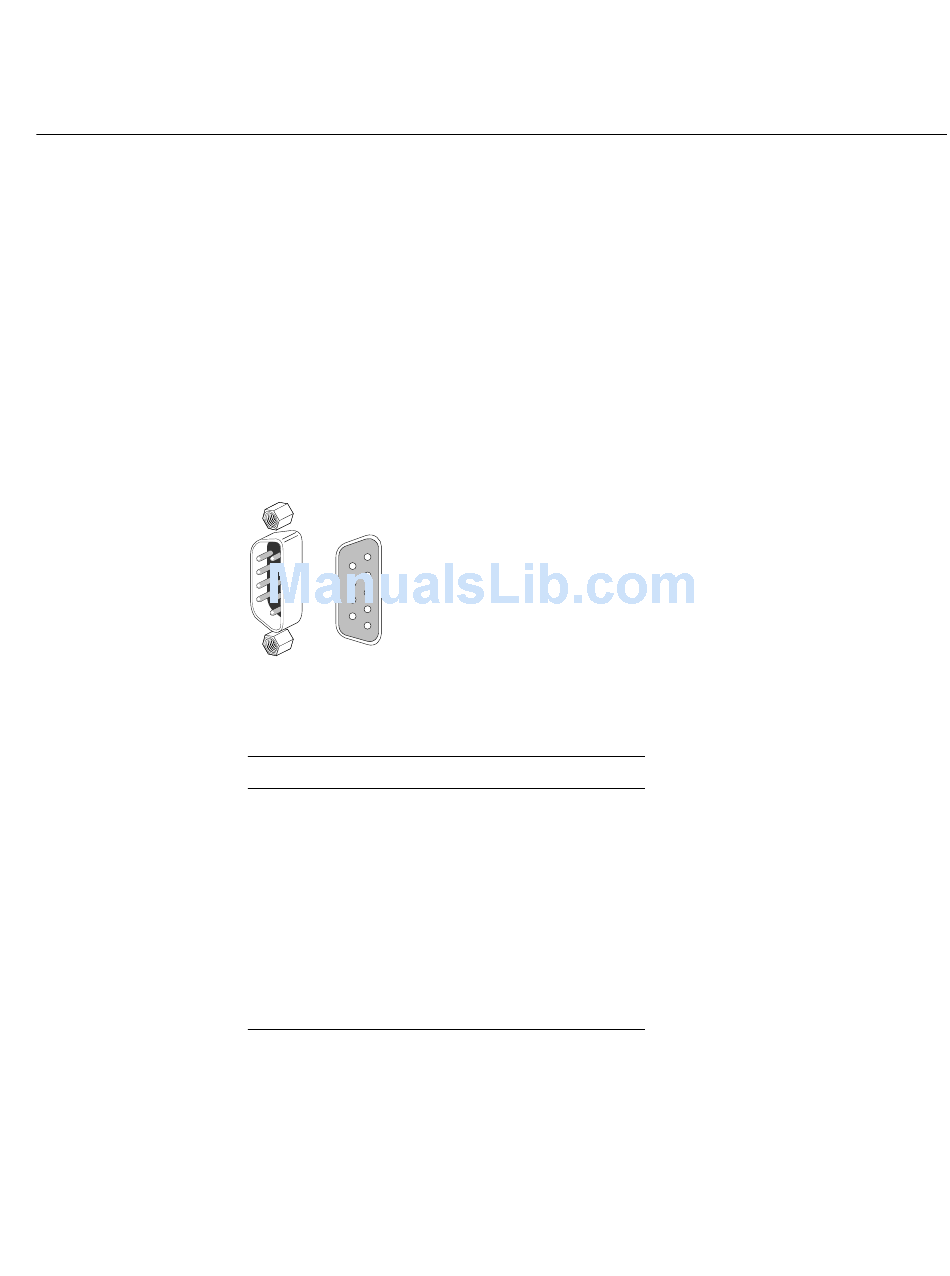

The following diagram shows the PC-compatible pinout. The range of supported baud
rates is 300 baud to 460K baud.
1
6
2
7
3
8
4
9
5
Table B-8 shows cable pinout assignments for the PC-compatible serial ports.
Table B-8 Serial Port Pinout - PC-Compatible
Pin Assignment
1 DCD
2 RD
3 TD
4 DTR
5 SG
6 DSR
7 RTS
Description
Data carrier detect
Receive data
Transmit data
Data terminal ready
Signal ground
Data set ready
Request to send
Port Pinout Assignments
231
