Chapter 5: Installing and Removing XIO Boards
126
7. Remove the wrist strap.
8. Reconnect all cables to the XIO Tri-Module.
9. Connect any new cables to the XIO Tri-Module.
To monitor

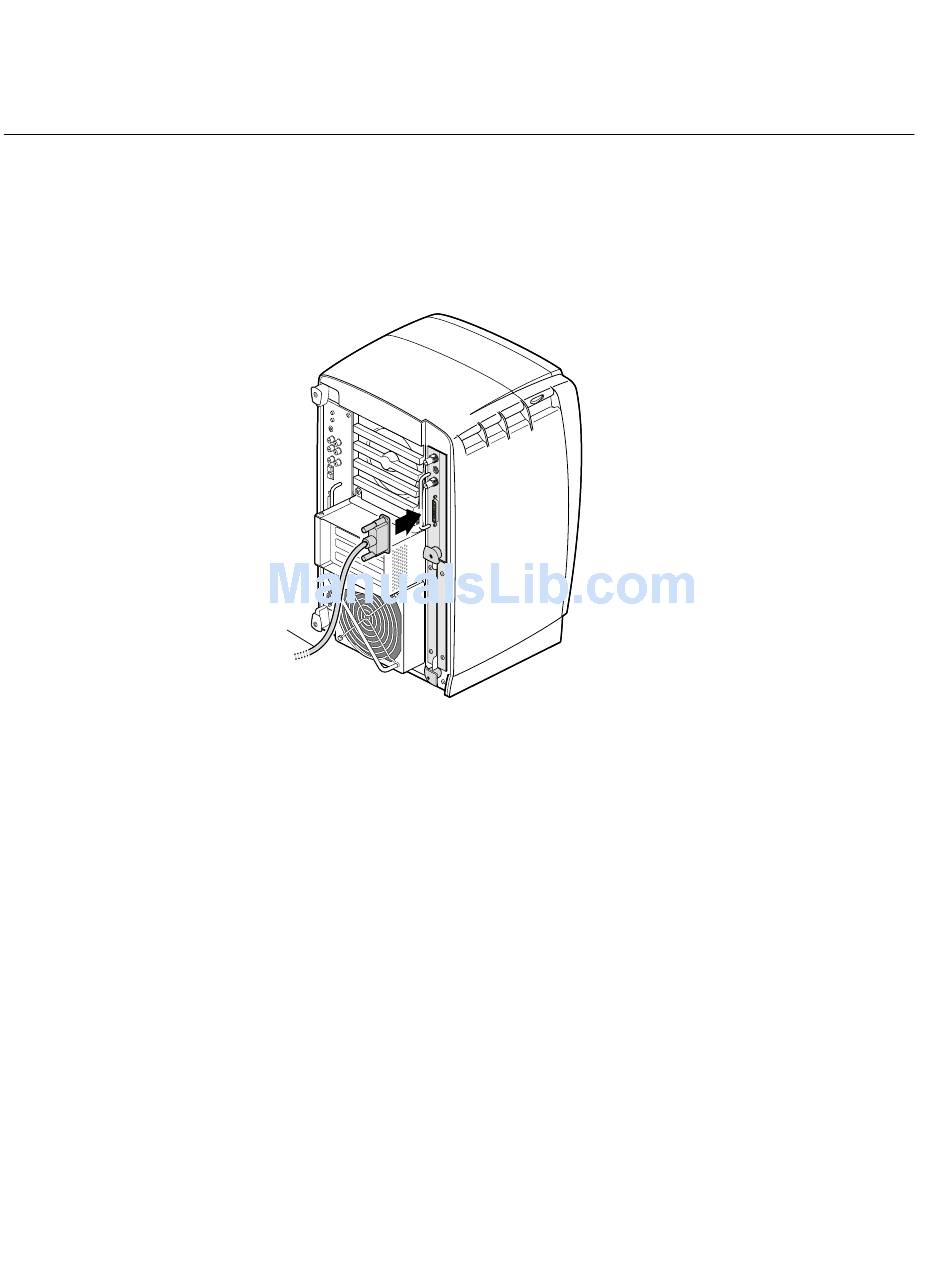

Figure 5-20
Reconnecting the Monitor Cable
You are finished installing your XIO option board.
Go to "Powering On the Octane2 Workstation" on page 127.
