2. Grasp the sliding handles and pull them until the sliding portion of the XIO
Tri-Module protrudes about an inch from the chassis, as shown in Figure 5-8.
The sliding handles and XIO Tri-Module move out about one inch before the I/O
panels move.

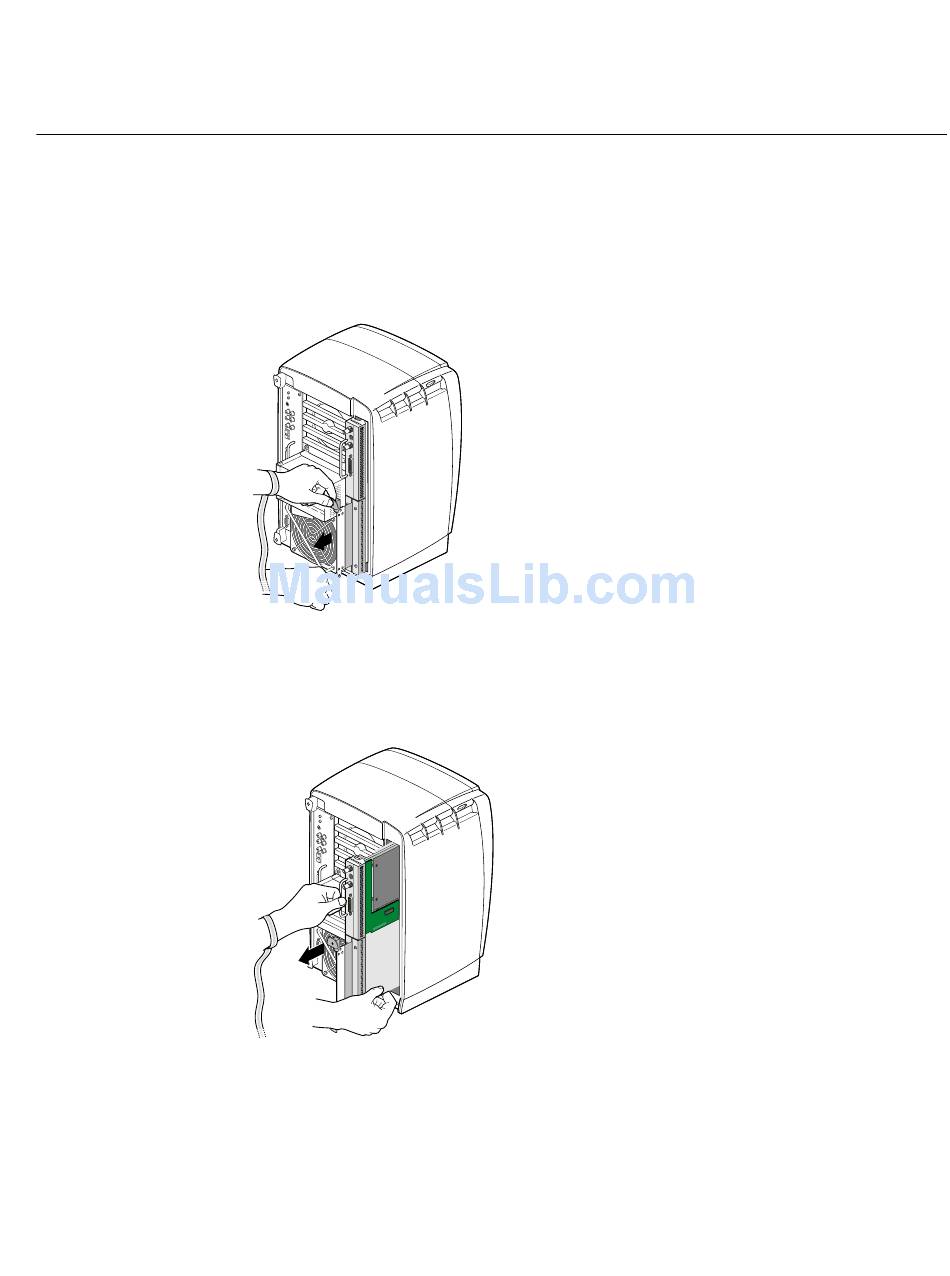

Figure 5-8 Releasing the XIO Tri-Module
3. Grasp the XIO Tri-Module by the immovable handle, and support the base of the
module as you remove it from the chassis, as shown in Figure 5-9.
Removing the XIO Tri-Module
Figure 5-9
Removing the XIO Tri-Module
