A.

Serial Ports

3
6
1
4
7
2
8
5

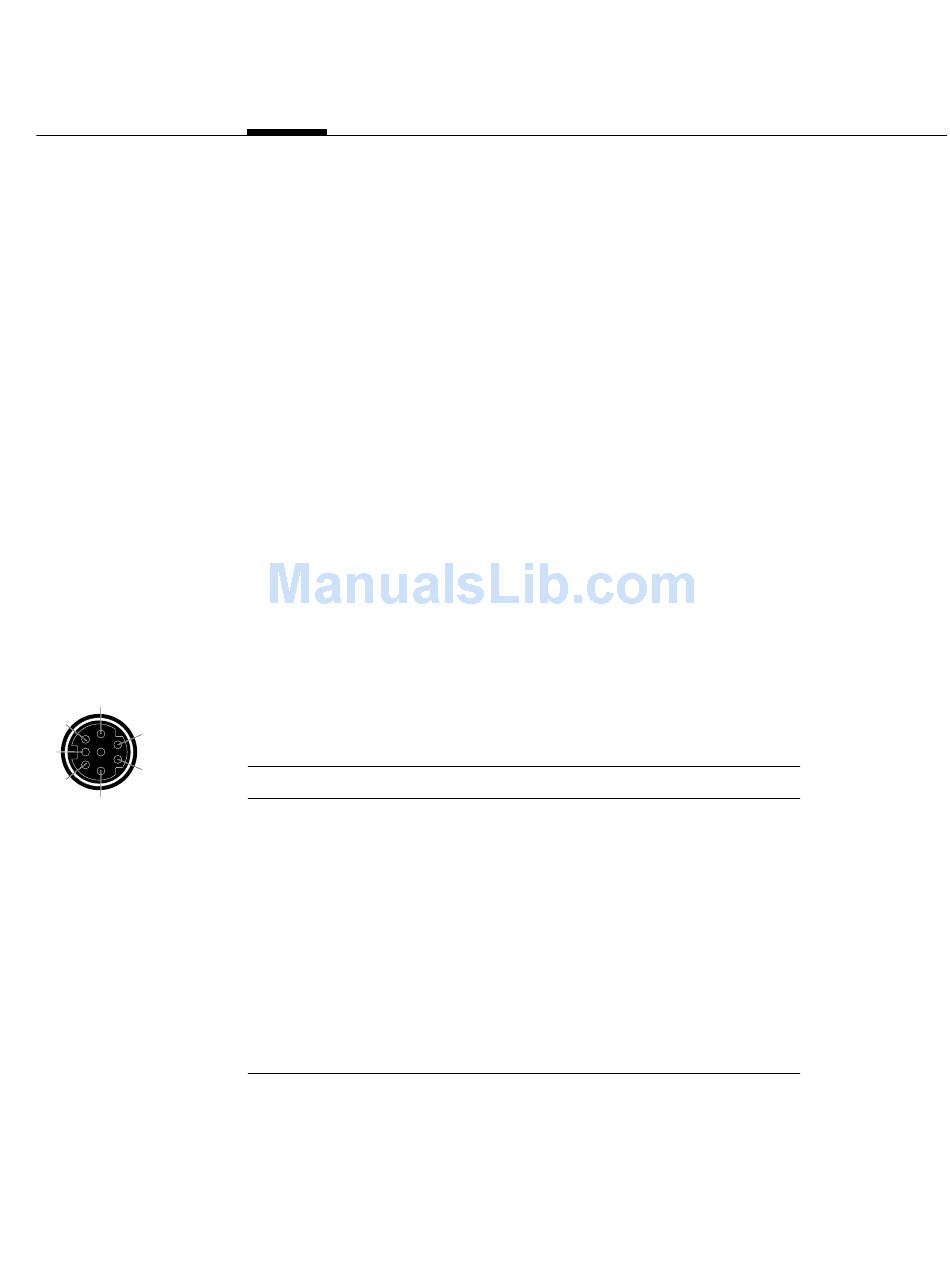

Figure A-1
Serial Port
Pinout Assignments
Appendix A

Cable Pinout Assignments

This appendix contains cable pinout information for the following ports located on the
back of the Indigo workstation:
2
• serial ports
• parallel port
• Ethernet AUI
• keyboard
• SCSI port
• audio ports
Table A-1 and Table A-2 show cable pinout assignments for the serial ports.
Table A-1 4D Compatible Pin Assignments (RS-232)
Pin Assignment
1 DTR
2 CTS
3 TD
4 SG
5 RD
6 RTS
7 DCD
8 SG
Description
Data Terminal Ready
Clear To Send
Transmit Data
Signal Ground
Receive Data
Request To Send
Data Carrier Detect
Signal Ground
181
