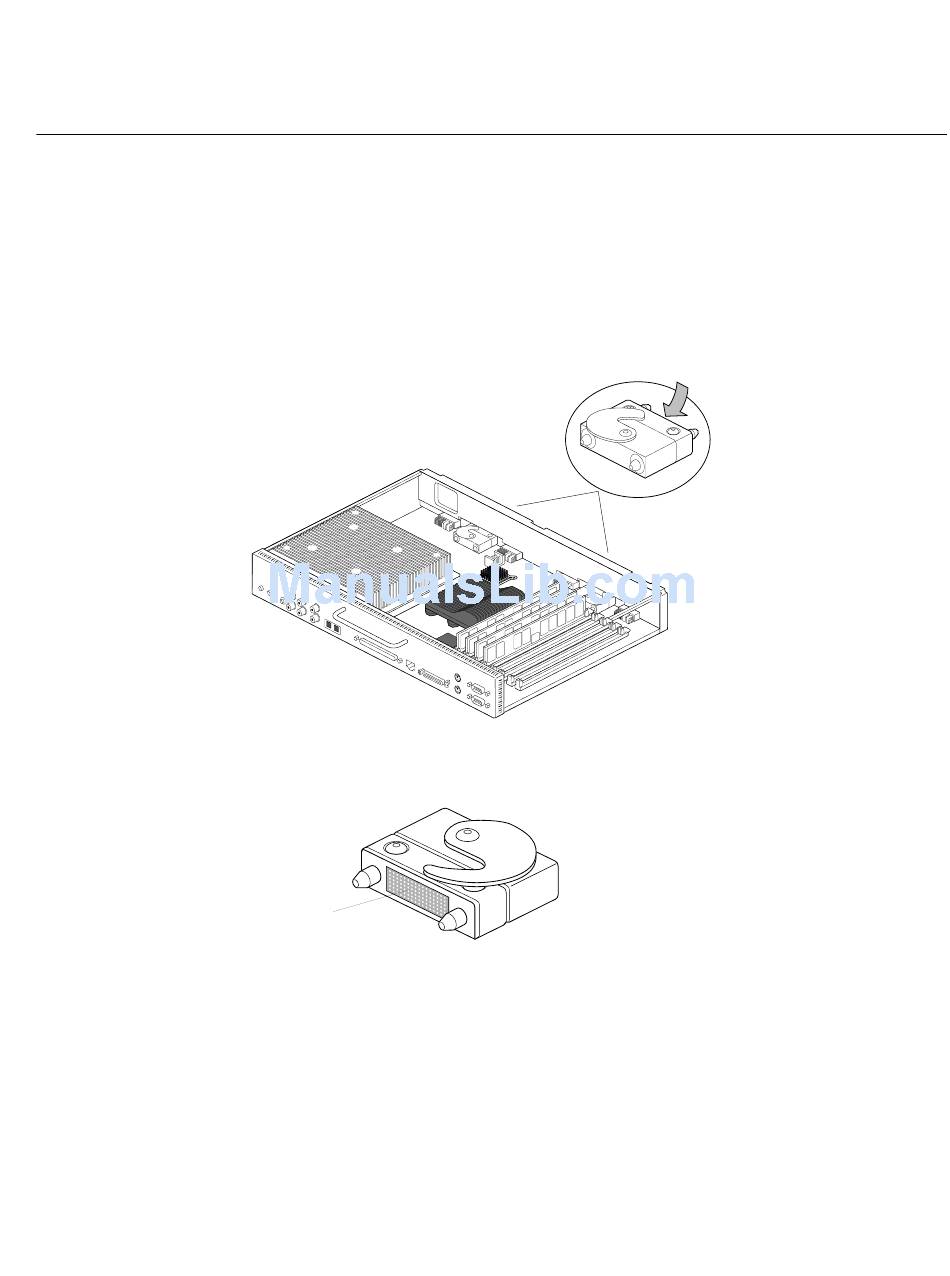

Figure 2-8 Locating The Compression Connectors; Figure 2-9 Bristled Pad On Compression Connector - Silicon Graphics OCTANE2 Owner's Manual

Caution: When you remove the system module from the chassis, do not touch the two
compression connectors at the back of the system module, as shown in Figure 2-8. The
gold bristled pad on each compression connector is very delicate and easily damaged
(see Figure 2-9). Before you remove the system module, read Appendix A, "Care and
Cleaning of Compression Connectors."
Locating the Compression Connectors
Figure 2-8
Bristled pad
Figure 2-9 Bristled Pad on Compression Connector
Removing the System Module
Caution - Do not touch
