Chapter 4: Installing and Removing PCI Boards
98
8. Install an I/O blank panel in the I/O door in place of the PCI board, as shown in
Figure 4-42.
Use the knobs on the back of the blank panel to position it. Make sure you place the
tip of the I/O blank panel inside the groove at the bottom of the PCI module. Do not
position the tip outside the groove.

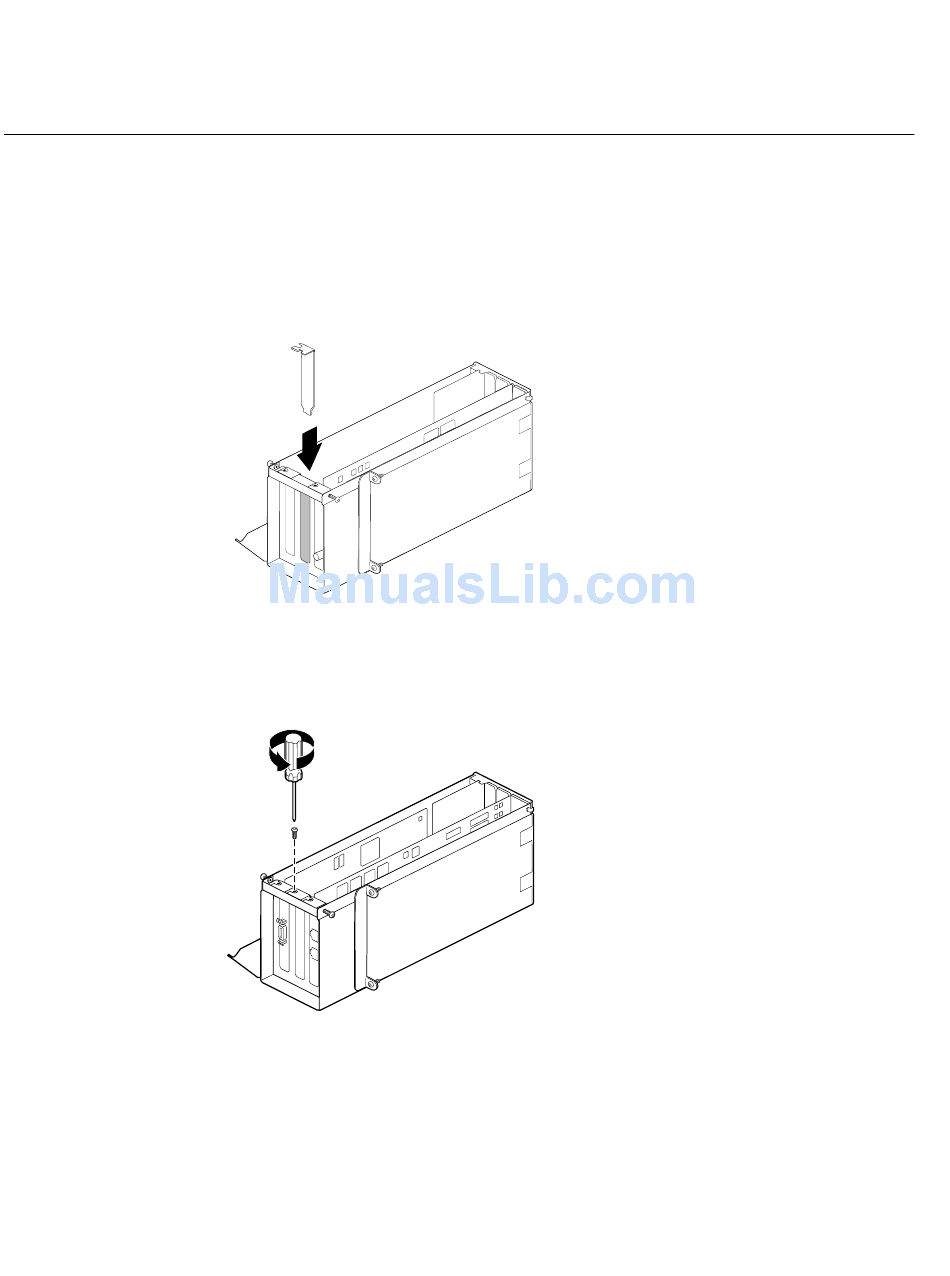

Figure 4-42 Inserting the I/O Blank Panel
9. Attach the blank panel to the I/O door with the screw you removed earlier in this
section, as shown in Figure 4-43.
Figure 4-43 Attaching the Blank Panel to the I/O Door
