Chapter 5: Installing and Removing XIO Boards
116
4. Place the XIO Tri-Module on a flat, antistatic surface, such as an empty antistatic bag
on your desk.
When the XIO Tri-Module is out of the chassis, the sliding handles must protrude,
as shown in Figure 5-10. A label identifies each XIO slot, (D and A on one side, C
and B on the other). Slot B is a daughterboard slot that is located on the other side of
the VPro graphics board.
Do not push on the sliding handles after you remove the XIO Tri-Module. Later
when you reinsert the Tri-Module, the sliding handles must protrude.
Slot D
Slot C (below)

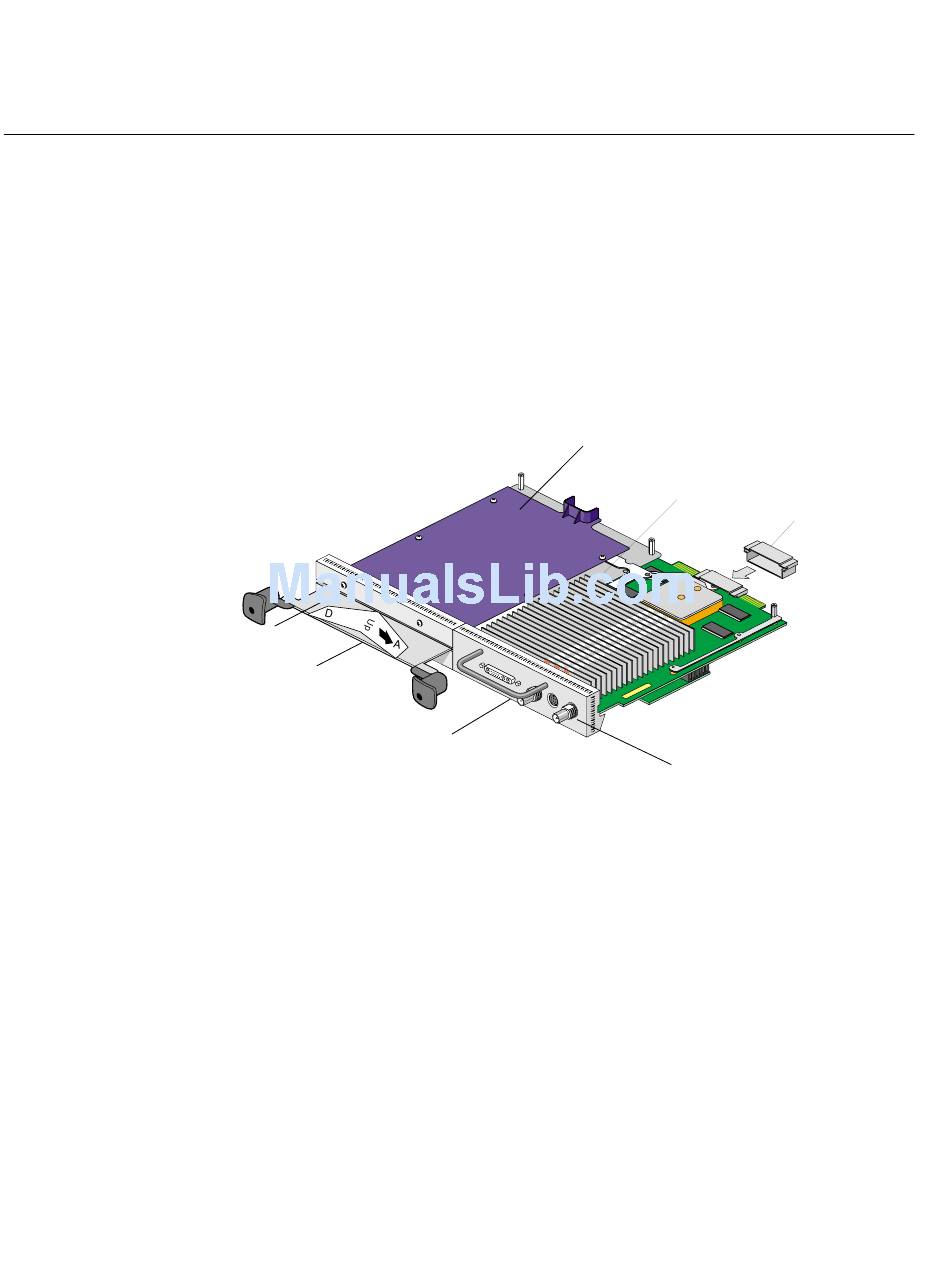

Placing the XIO Tri-Module on Its Side
Figure 5-10
Slot A/B
Blank panel
VPro graphics
board
VPro graphics I/O panel
Place cap
on compression
connector
